XBLWDatasheet (PDF)

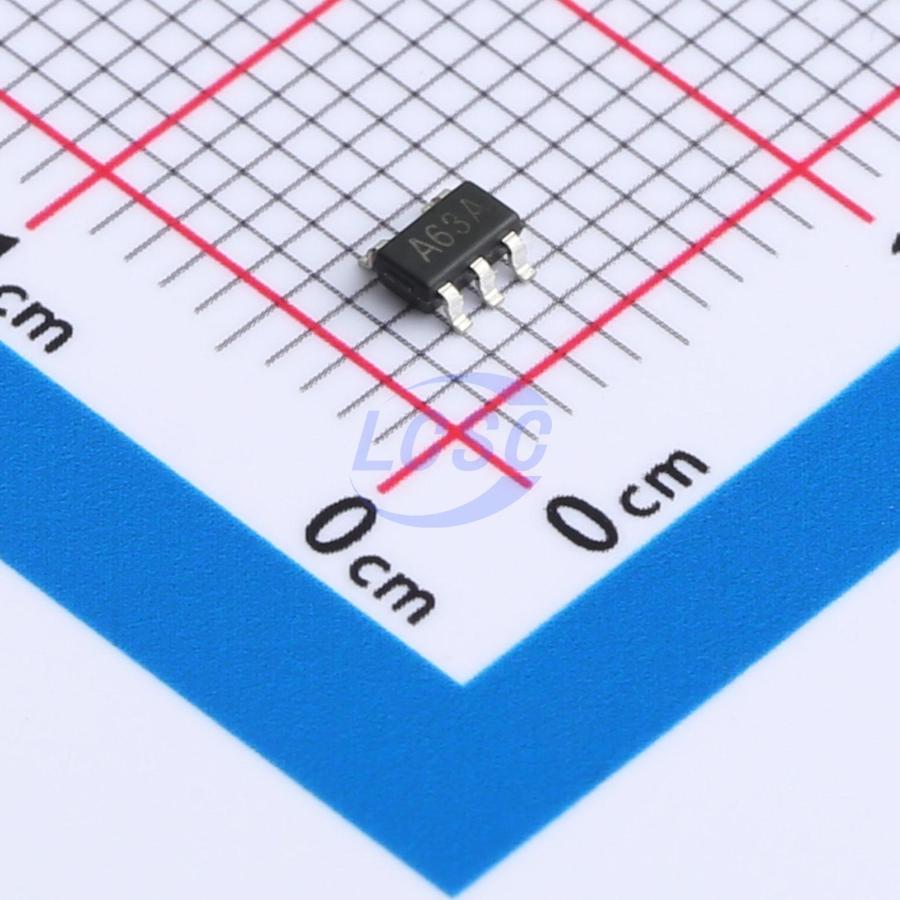

LM321DTR(XBLW)
40mA 1 2mV 400V/ms 90dB 45nA 100uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
Low Power Single Op Amp
- Manufacturer
- XBLW
- Manufacturer part #
- LM321DTR(XBLW)
- Store part #
- C18723612
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,19,980 in stock
#C18723612
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.93 | ₹58.60 |
| 200+ | ₹2.30 | ₹460.00 |
| 600+ | ₹1.95 | ₹1,170.00 |
| 3,000+ | ₹1.72 | ₹5,160.00 |
| 9,000+ | ₹1.53 | ₹13,770.00 |
| 21,000+ | ₹1.43 | ₹30,030.00 |
20 × ₹2.93
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321DTR(XBLW)
₹58.60 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 100uA
- Gain Bandwidth Product
- 1MHz
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.046 g
Overview
The LM321 brings performance and economy to low power systems. With a high unity gain frequency and a guaranteed 0.4V/μs slew rate, the quiescent current is only 100μA(5V). The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads. Overall the LM321 is a low power, wide supply range performance op amp that can be designed into a wide range of applications at an economical price without sacrificing valuable board space. The LM32 1 is available in the SOT-23-5L package.
Applications
- Chargers
- Power supplies
- Industrial controls and instruments
- Desktops
- Communications infrastructure
Key features
- Gain-Bandwidth product 1.0 MHz
- Low supply current 100 μA
- Low input bias current 45 nA
- Wide supply voltage range +3 V to +32 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6001T-I/OT(XBLW)#C41408425XBLW · SOT-23-5 | XBLW | SOT-23-5 | 2,430 | ₹9.41 · 2,430 in stock | View |
 | MCP6001UT-I/OT(XBLW)#C41369515XBLW · SOT-23-5 | XBLW | SOT-23-5 | 2,230 | ₹12.79 · 2,230 in stock | View |
 | MCP6001UT-E/OT(XBLW)#C41369518XBLW · SOT-23-5 | XBLW | SOT-23-5 | 2,350 | ₹14.21 · 2,350 in stock | View |
 | MCP6001T-E/OT(XBLW)#C41408426XBLW · SOT-23-5 | XBLW | SOT-23-5 | 4,030 | ₹10.35 · 4,030 in stock | View |
 | TLV6001IDBVR(XBLW)#C42376990XBLW · SOT-23-5 | XBLW | SOT-23-5 | 3,465 | ₹19.07 · 3,465 in stock | View |
