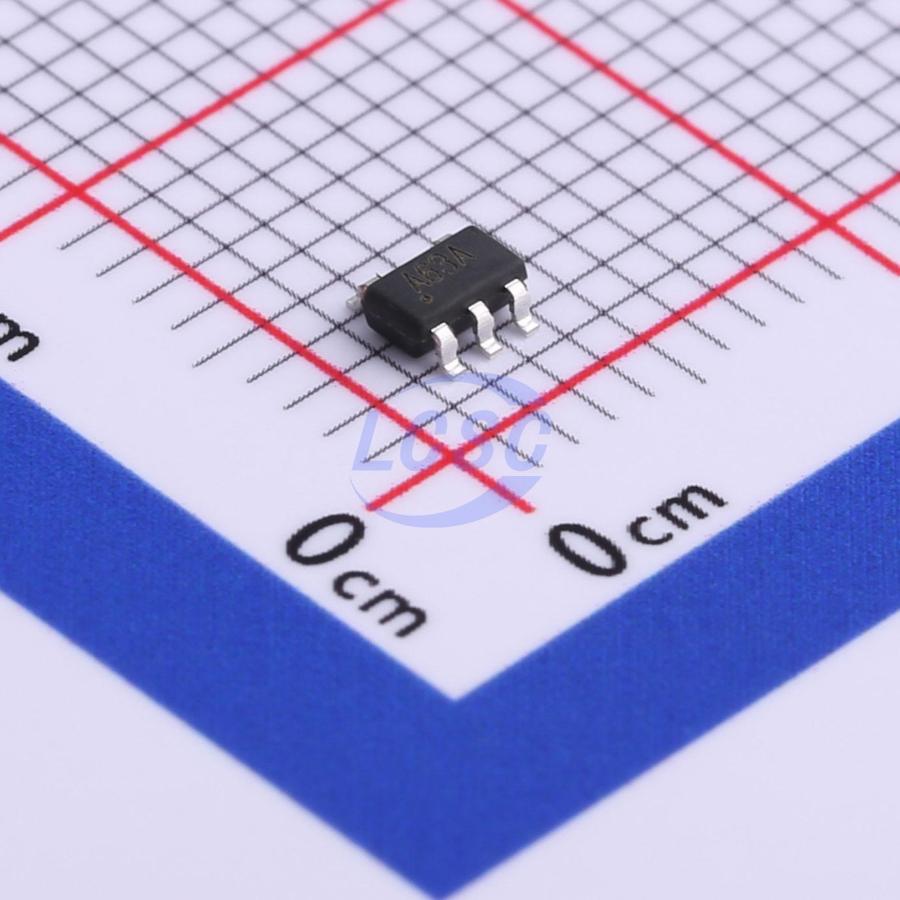

UMW

LM321MF

40mA 2mV 400V/ms 90dB 45nA 1MHz 430uA SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5LROHS3 CompliantActive

Low-power amplifier

Manufacturer: UMW
Manufacturer part #: LM321MF
Store part #: C668208
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,59,110 in stock

#C668208

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.64	₹56.40
100+	₹4.41	₹441.00
300+	₹3.77	₹1,131.00
3,000+	₹3.18	₹9,540.00
6,000+	₹2.99	₹17,940.00
9,000+	₹2.87	₹25,830.00

Quantity (min 10, multiples of 10)

10 × ₹5.64

₹56.40

excl. GST

₹66.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM321MF

₹56.40 for 10 + GST

Specifications

Output Current: 40mA
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Gain Bandwidth Product: 1MHz
Quiescent Current: 430uA
Single Supply: 3V~32V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The LM321 delivers performance and cost efficiency for low-power systems. Featuring a high unity-gain bandwidth and a guaranteed slew rate of 0.4V/μs, it draws only 430μA/amplifier (5V) quiescent current. The input common-mode range extends to ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LM321 is available in a SOT-23-5L package. Overall, the LM321 is a low-power, wide-supply-range op-amp that can be designed into a broad range of applications at an affordable price without sacrificing valuable board space.
