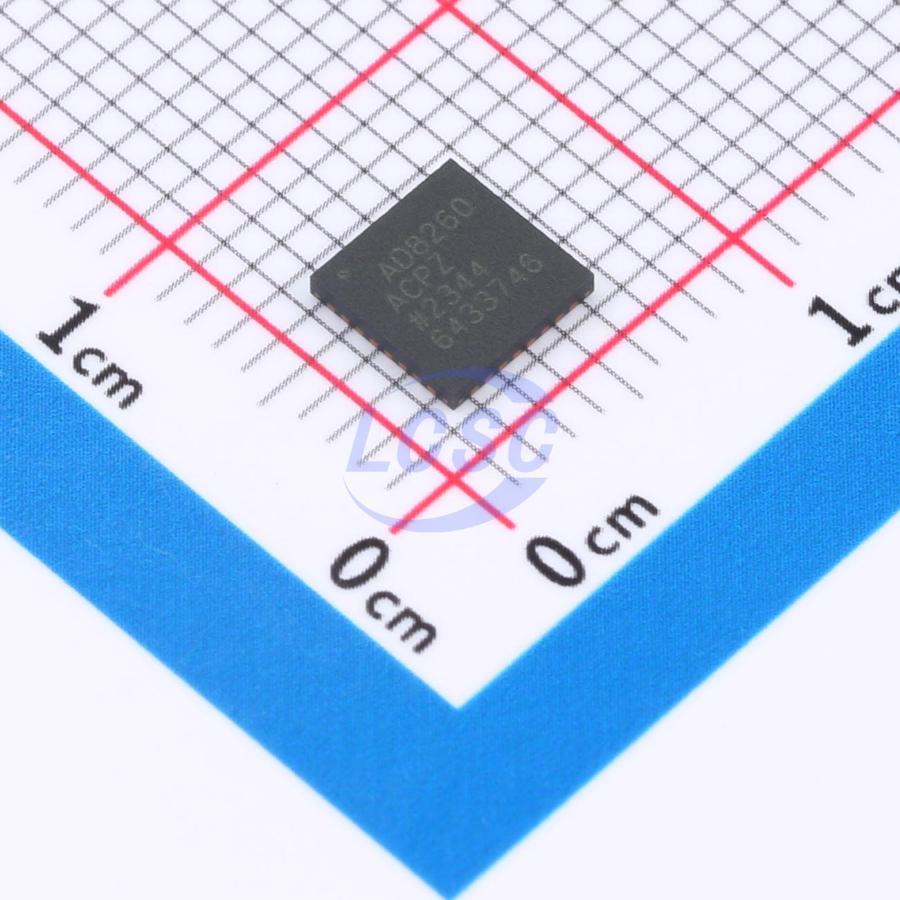

AD8260ACPZ-R7

The AD8260 includes a high current driver, usable as a transmitter, and a low noise digitally programmable variable gain amplifier (DGA), useable as a receiver. The receiver section consists of a single-ended input preamplifier, and linear-in-dB, differential-output DGA. The receiver has a small signal –3 dB bandwidth of 230 MHz; the driver small signal bandwidth is 195 MHz. The driver delivers ±300 mA, well suited for driving low impedance loads, even when connected to a 3.3 V supply. The AD8260 DGA is ideal for trim applications and has a gain span of 30 dB, in 3 dB steps. Excellent bandwidth uniformity is maintained across the entire frequency range. The low output-referred noise of the DGA is advantageous in driving high speed ADCs. The differential output facilitates the interface to modern low voltage high speed ADCs. Single-supply and dual-supply operation makes the part versatile and enables gain control of negative-going pulses, such as those generated by photodiodes or photo-multiplier tubes, as well as processing band-pass signals on a single supply. The AD8260 preamplifier (PrA) is configured with external resistors for gains greater than 6 dB and can be inverting or noninverting. The DGA is characterized with a noninverting preamplifier gain of 2×. The attenuator has a range of 30 dB and the output amplifier has a gain of 8× (18.06 dB). The lowest noninverting gain range is -6 dB to +24 dB and shifts up with increased preamplifier gain. The gain is controlled via a parallel port (Pin GNS0 to Pin GNS3) with 10 gain steps of 3 dB per code. The preamplifier and DGA are disabled for any code that is not assigned a gain step. The AD8260 can operate with single or dual supplies from 3.3 V to ±5 V. An internal buffer normally provides a split supply reference for single-supply operation; an external reference can also be used when the VMID buffer is shut down. The operating temperature range is -40°C to +105°C. The AD8260 is available in a 5 mm×5 mm, 32-lead LFCSP.

Applications

• Digital AGC systems
• Tx/Rx signal processing
• Power line transceivers

Key features

• High current driver
• Differential input—direct drive from DAC
• Preset gain: ±1.5×
• −3 dB bandwidth: 195 MHz
• Large output drive: >±300 mA
• VGA/preamplifier
• Low noise
• Voltage noise: 2.4 nV/√Hz
• Current noise: 5 pA/√Hz
• −3 dB bandwidth: 230 MHz
• Gain range: 30 dB in 3 dB steps
• −6 dB to ±24 dB (for preamplifier gain of 6 dB)
• Single-ended preamplifier input and differential VGA output
• Supplies: 3.3 V to 10 V (with VMID enabled) ±3.3 V to ±5 V (with VMID disabled)
• Power: 93 mW with 3.3 V supplies
• Power-down for VGA, driver amplifier, and system
