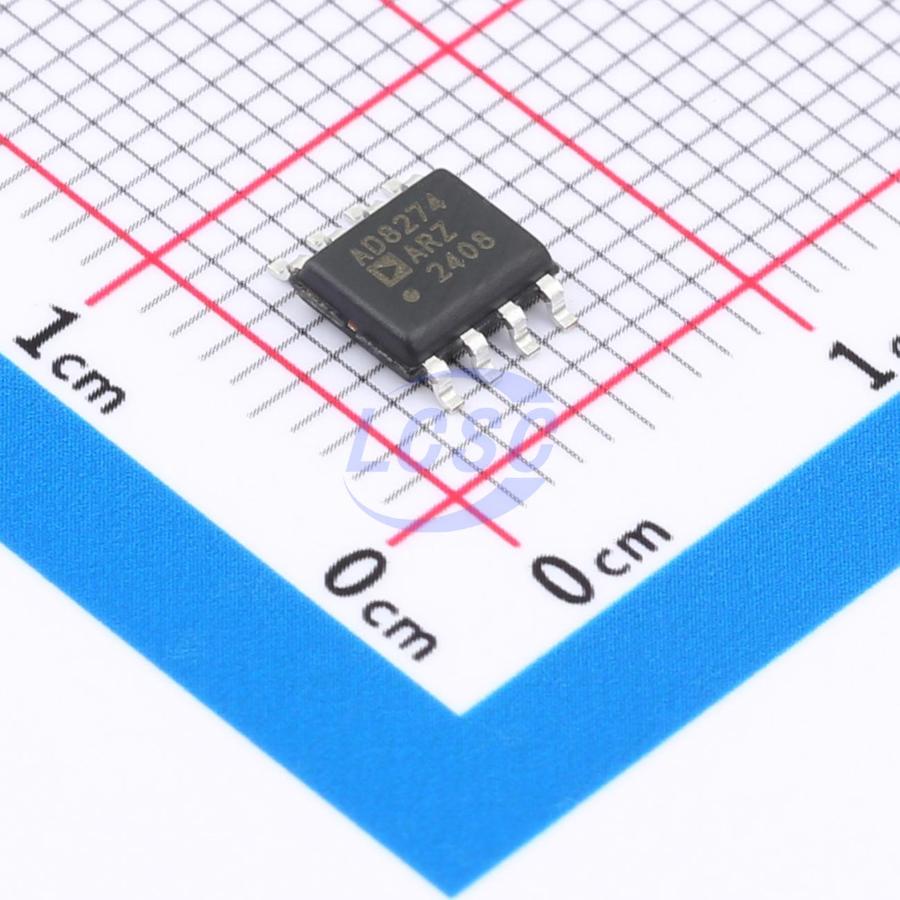

AD8274ARZ-R7
90mA 1 700uV 20V/us 92dB 2.6mA 20MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Precision Difference Amplifier
- Manufacturer
- ADI
- Manufacturer part #
- AD8274ARZ-R7
- Store part #
- C652614
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
114 in stock
#C652614
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹689.69 | ₹689.69 |
| 10+ | ₹611.77 | ₹6,117.70 |
| 30+ | ₹565.53 | ₹16,965.90 |
| 100+ | ₹518.63 | ₹51,863.00 |
| 500+ | ₹496.92 | ₹2,48,460.00 |
| 1,000+ | ₹487.37 | ₹4,87,370.00 |
1 × ₹689.69
₹689.69
excl. GST
₹813.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AD8274ARZ-R7
₹689.69 for 1 + GST
Specifications
- output type
- Single-Ended
- Settling time
- 800ns
- Output Current
- 90mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 700uV
- Slew Rate
- 20V/us
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 92dB
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Input Offset Voltage Drift(Vos TC)
- 6uV/℃
- Quiescent Current
- 2.6mA
- Gain Bandwidth Product
- 20MHz
- Features
- Integrated ADC driver;Capacitive load driving;Current limiting / short-circuit protection
- Dual Supply
- -18V~-2.5V;2.5V~18V
- Single Supply
- 36V
- Noise density(eN)
- 26nV/√Hz@1kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
