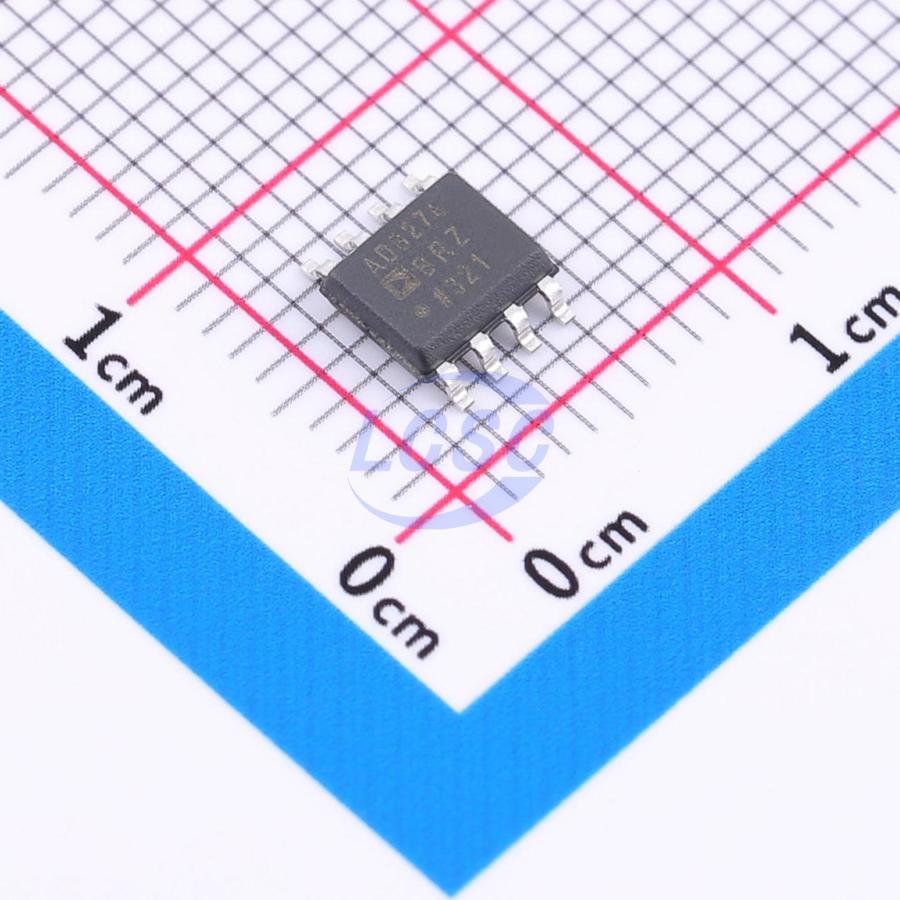

AD8276BRZ

15mA 1 100uV 1.1V/us 86dB 200uA 550kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Unity-gain differential amplifier

Manufacturer: ADI
Manufacturer part #: AD8276BRZ
Store part #: C652625
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14 in stock

#C652625

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹857.24	₹857.24
10+	₹737.29	₹7,372.90
30+	₹664.07	₹19,922.10
100+	₹602.79	₹60,279.00

Quantity (min 1)

1 × ₹857.24

₹857.24

excl. GST

₹1,011.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 98 per tube

AD8276BRZ

₹857.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Settling time: 15us
output type: Differential
Output Current: 15mA
Number of Channels: 1
Vos - Input Offset Voltage: 100uV
Slew Rate: 1.1V/us
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 86dB
Maximum Power Supply Range (Vdd-Vss): 36V
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 550kHz
Features: Single-ended to differential conversion;Differential to single-ended conversion;Overvoltage protection;Integrated precision resistor network;Current limiting / short-circuit protection;Capacitive load driving
Dual Supply: -18V~-2V;2V~18V
Single Supply: 2V~36V
Noise density(eN): 65nV/√Hz@1kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 98 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.15 g
