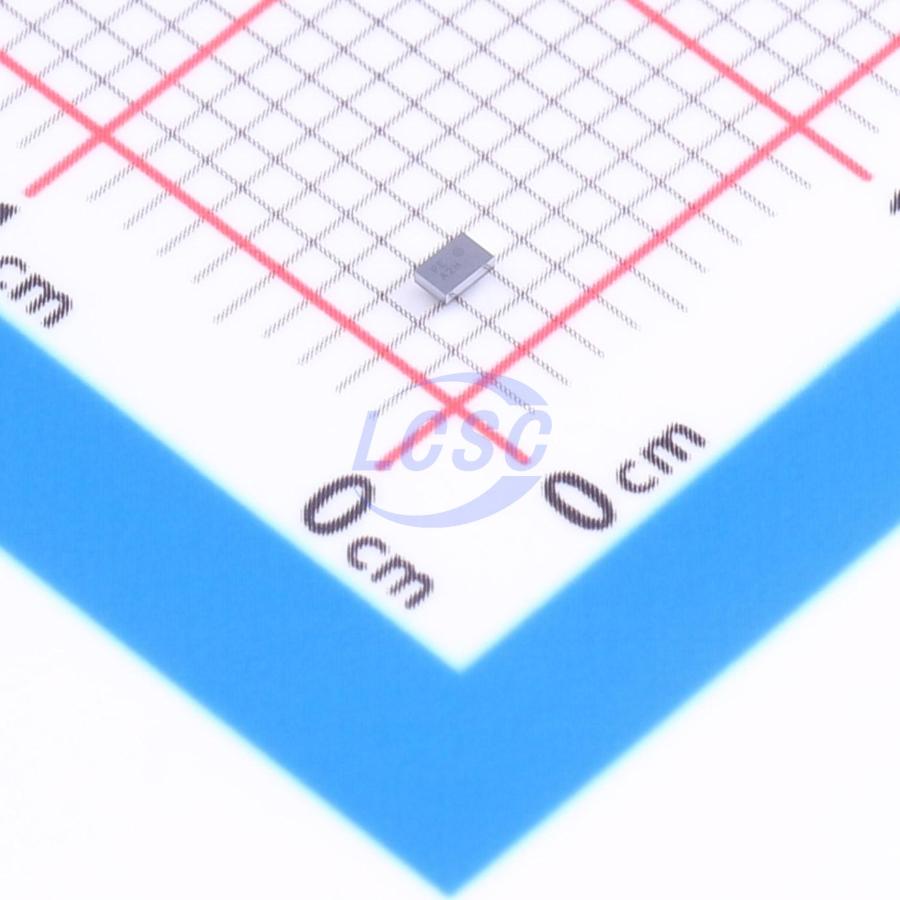

AD8505ACBZ-R7

4.5mA 1 2.5mV 13V/ms 105dB 1pA 16.5uA 95kHz Rail-to-Rail Input, Rail-to-Rail Output WLCSP-6(0.9x1.4) Instrumentation, Op Amps, Buffer Amps RoHS

WLCSP-6(0.9x1.4)ROHS3 CompliantActive

Maximum 20uA, rail-to-rail I/O, zero input crossover distortion amplifier

Manufacturer: ADI
Manufacturer part #: AD8505ACBZ-R7
Store part #: C652905
Package / case: WLCSP-6(0.9x1.4)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C652905

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹419.54	₹419.54
10+	₹410.00	₹4,100.00
30+	₹403.50	₹12,105.00
100+	₹396.99	₹39,699.00

Quantity (min 1)

1 × ₹419.54

₹419.54

excl. GST

₹495.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8505ACBZ-R7

₹419.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 4.5mA
Number of Channels: 1
Vos - Input Offset Voltage: 2.5mV
Slew Rate: 13V/ms
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 105dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Quiescent Current: 16.5uA
Gain Bandwidth Product: 95kHz
Features: Built-in compensation
Input Voltage Noise Density: 45nV/√Hz@1kHz
Dual Supply: -900mV~2.5V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.46 g

Overview

The AD8505/AD8506/AD8508 are single, dual, and quad micropower amplifiers featuring rail-to-rail input/output swings while operating from a single 1.8 V to 5 V power supply or from dual ±0.9 V to ±2.5 V power supplies. Using a new circuit technology, these amplifiers offer zero input crossover distortion (excellent PSRR and CMRR performance) and low bias current while operating with a supply current of less than 20 μA per amplifier. This amplifier family offers the lowest noise in its power class. This combination of features makes the AD8505/AD8506/AD8508 amplifiers ideal choices for battery-powered applications because they minimize errors due to power supply voltage variations over the lifetime of the battery and maintain high CMRR even for a railto-rail input op amp. Remote battery-powered sensors, handheld instrumentation, consumer equipment, hazard detection (for example, smoke, fire, and gas), and patient monitors can benefit from the features of the AD8505/AD8506/AD8508 amplifiers. The AD8505/AD8506/AD8508 are specified for both the industrial temperature range of -40°C to +85°C and the extended industrial temperature range of -40°C to +125°C.
