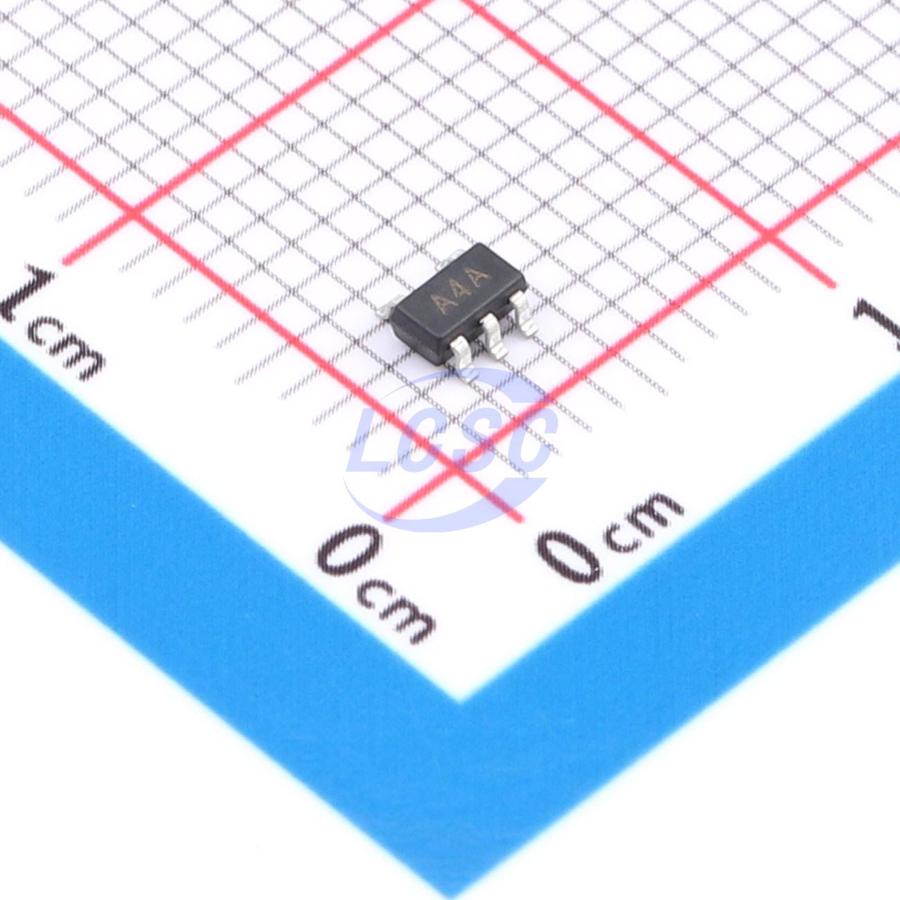

AD8541ARTZ-REEL7-TUDI
100pA 65uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Audio Amplifiers
- Manufacturer
- Tudi
- Manufacturer part #
- AD8541ARTZ-REEL7-TUDI
- Store part #
- C55098880
- Package / case
- SOT-23-5
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,945 in stock
#C55098880
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.22 | ₹156.10 |
| 50+ | ₹24.67 | ₹1,233.50 |
| 150+ | ₹21.86 | ₹3,279.00 |
| 500+ | ₹18.35 | ₹9,175.00 |
| 3,000+ | ₹16.79 | ₹50,370.00 |
| 6,000+ | ₹15.85 | ₹95,100.00 |
5 × ₹31.22
₹156.10
excl. GST
₹184.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD8541ARTZ-REEL7-TUDI
₹156.10 for 5 + GST
Specifications
- number of channels
- 1
- Ib - Input Bias Current
- 100pA
- Operating Temperature
- -40℃~+125℃
- Input Offset Current(Ios)
- 0.1pA
- Vos - Input Offset Voltage
- 6mV
- Output Current
- 30mA
- Common Mode Rejection Ratio (CMRR)
- 48dB
- Quiescent Current
- 65uA
- Gain Bandwidth Product
- 1MHz
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Single Supply
- 2.7V~5.5V
- Slew Rate
- 920V/ms
- Noise density(eN)
- 42nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
