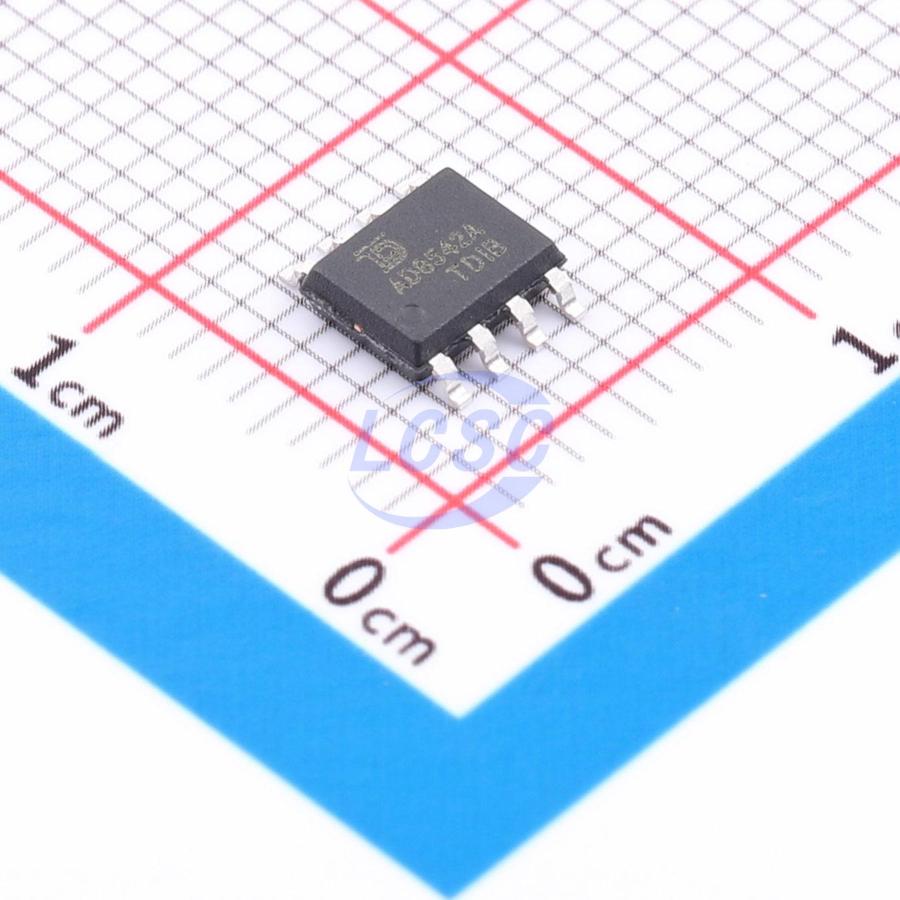

AD8542ARZ-REEL-TUDI
100pA 65uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Audio Amplifiers
- Manufacturer
- Tudi
- Manufacturer part #
- AD8542ARZ-REEL-TUDI
- Store part #
- C55098882
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,895 in stock
#C55098882
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.78 | ₹163.90 |
| 50+ | ₹25.90 | ₹1,295.00 |
| 150+ | ₹22.95 | ₹3,442.50 |
| 500+ | ₹19.28 | ₹9,640.00 |
| 2,500+ | ₹17.64 | ₹44,100.00 |
| 5,000+ | ₹16.64 | ₹83,200.00 |
5 × ₹32.78
₹163.90
excl. GST
₹193.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AD8542ARZ-REEL-TUDI
₹163.90 for 5 + GST
Specifications
- number of channels
- 2
- Ib - Input Bias Current
- 100pA
- Operating Temperature
- -40℃~+125℃
- Input Offset Current(Ios)
- 0.1pA
- Vos - Input Offset Voltage
- 6mV
- Output Current
- 30mA
- Common Mode Rejection Ratio (CMRR)
- 48dB
- Quiescent Current
- 65uA
- Gain Bandwidth Product
- 1MHz
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Single Supply
- 2.7V~5.5V
- Slew Rate
- 920V/ms
- Noise density(eN)
- 42nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX4092ASA-TUDI#C52941427Tudi · SOP-8 | Tudi | SOP-8 | 495 | ₹353.41 · 495 in stock | View |
 | LMV358IYDT-TUDI#C52941463Tudi · SOP-8 | Tudi | SOP-8 | 480 | ₹28.42 · 480 in stock | View |
 | LMV358IDT-TUDI#C52941466Tudi · SOP-8 | Tudi | SOP-8 | 485 | ₹18.75 · 485 in stock | View |
 | TSV912AIDT-TUDI#C54858231Tudi · SOP-8 | Tudi | SOP-8 | 198 | ₹83.04 · 198 in stock | View |
 | TSV912IDT-TUDI#C54858236Tudi · SOP-8 | Tudi | SOP-8 | 160 | ₹32.78 · 160 in stock | View |
