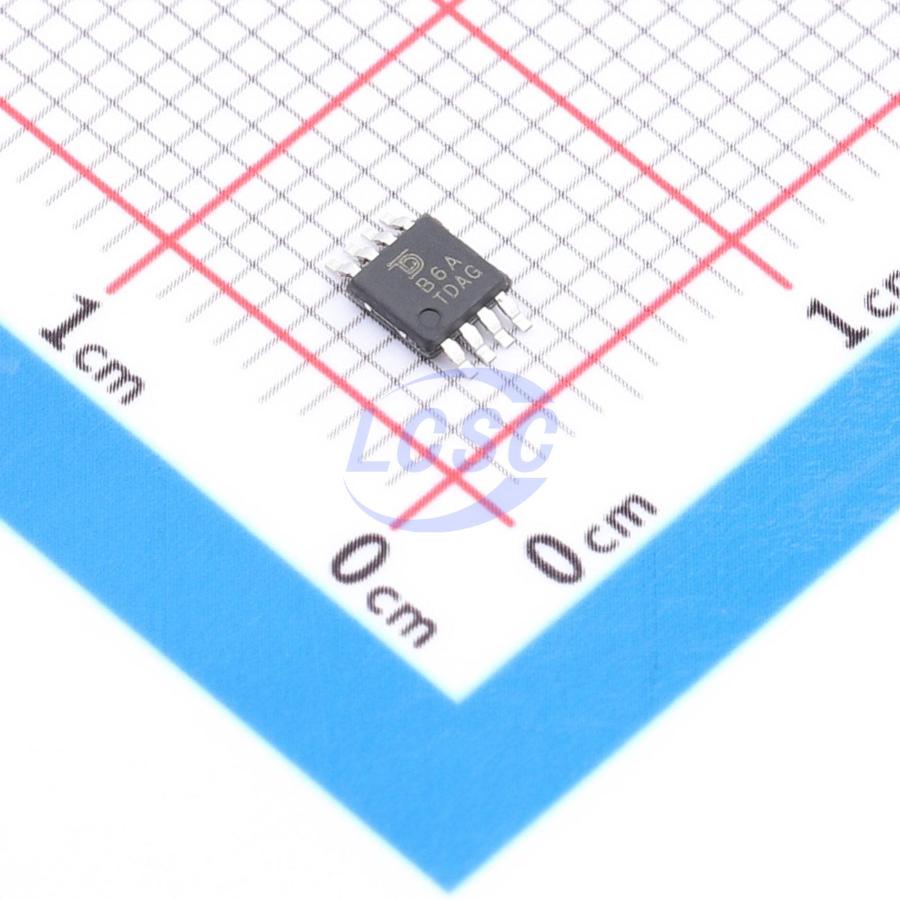

AD8606ARMZ-REEL-TUDI
2.5pA 650uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Audio Amplifiers
- Manufacturer
- Tudi
- Manufacturer part #
- AD8606ARMZ-REEL-TUDI
- Store part #
- C54741328
- Package / case
- MSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,182 in stock
#C54741328
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.05 | ₹65.05 |
| 10+ | ₹51.39 | ₹513.90 |
| 30+ | ₹45.54 | ₹1,366.20 |
| 100+ | ₹38.38 | ₹3,838.00 |
| 500+ | ₹35.13 | ₹17,565.00 |
| 1,000+ | ₹33.18 | ₹33,180.00 |
1 × ₹65.05
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AD8606ARMZ-REEL-TUDI
₹65.05 for 1 + GST
Specifications
- number of channels
- 2
- Ib - Input Bias Current
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Input Offset Current(Ios)
- 2.5pA
- Vos - Input Offset Voltage
- 600uV
- Output Current
- 21mA
- Quiescent Current
- 650uA
- Common Mode Rejection Ratio (CMRR)
- 125dB
- Gain Bandwidth Product
- 10MHz
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Single Supply
- 1.8V~5.5V
- Slew Rate
- 7.5V/us
- Noise density(eN)
- 12nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.086 g
Overview
The AD8606 (dual) is a low power, rail-to-rail input and output amplifier operating from 1.8V to 5.5V supply voltage. Despite its low quiescent current, the AD8606 still delivers excellent overall performance and versatility. They feature rail-to-rail input and output ranges, with output voltage swing extending to within 10mV of each supply rail, providing maximum output dynamic range and excellent overdrive recovery. The AD8606 is unity-gain stable with a typical gain bandwidth product of 10MHz. They offer high CMRR and PSRR performance and operate from single supply voltages as low as 1.8V. These characteristics make the AD8606 ideal for single-supply, battery-powered applications. They can serve as drop-in replacements for many commercially available op amps to reduce power consumption and improve input/output range and performance.
Applications
- Battery or solar-powered systems
- Portable devices
- Sensor conditioning
- Analog active filters
- Medical equipment
- Audio output
- White goods
- Smoke/gas/environmental sensors
Key features
- Low quiescent current: 650μA
- Gain bandwidth product: 10MHz
- Operates from 1.8V ~ 5.5V supply
- Slew rate: 7.5V/μs
- Rail-to-rail input and output (RRIO)
- Unity-gain stable
- No phase reversal
- Extended temperature range: -40°C ~ +125°C
