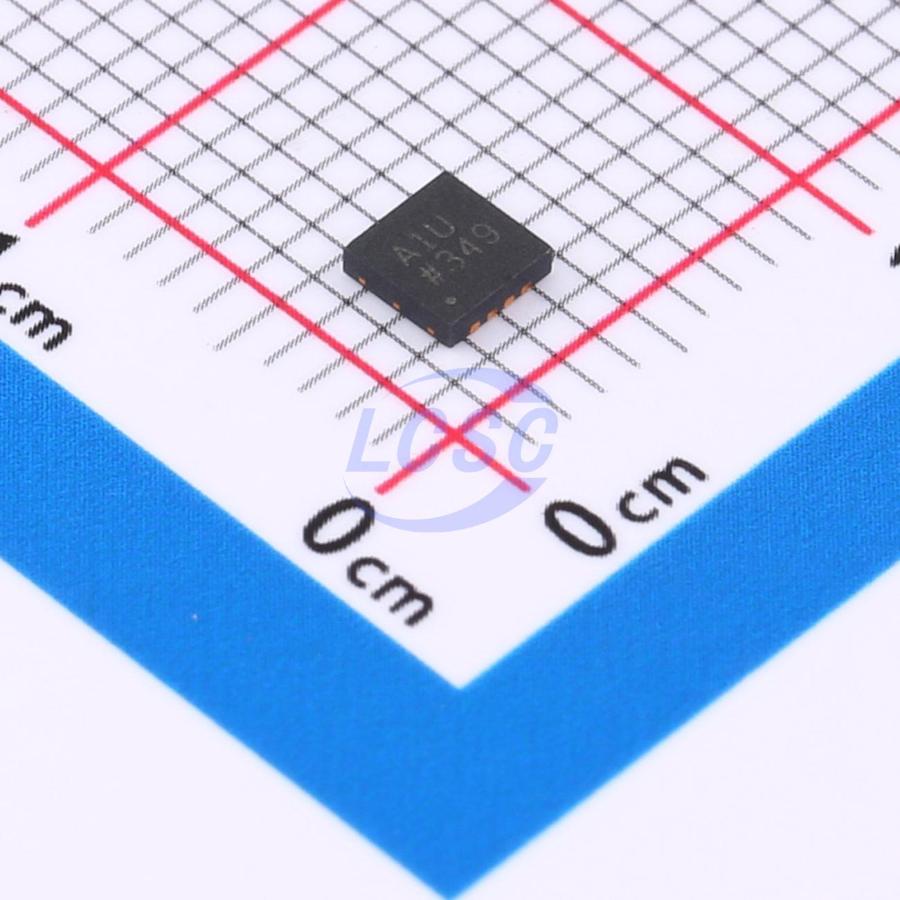

AD8663ACPZ-REEL7

50mA 1 30uV 0.26V/us 100dB 0.3pA 210uA 520kHz Rail-to-rail output LFCSP-8(3x3) Instrumentation, Op Amps, Buffer Amps RoHS

LFCSP-8(3x3)ROHS3 CompliantActive

Low Noise, High Precision, 16V CMOS Rail-to-Rail Operational Amplifier

Manufacturer: ADI
Manufacturer part #: AD8663ACPZ-REEL7
Store part #: C653107
Package / case: LFCSP-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C653107

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹717.40	₹717.40
10+	₹700.55	₹7,005.50
30+	₹689.32	₹20,679.60
100+	₹678.10	₹67,810.00

Quantity (min 1)

1 × ₹717.40

₹717.40

excl. GST

₹846.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

AD8663ACPZ-REEL7

₹717.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 30uV
Slew Rate: 0.26V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 0.3pA
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Quiescent Current: 210uA
Gain Bandwidth Product: 520kHz
Features: Built-in compensation
Input Voltage Noise Density: 23nV/√Hz@1kHz
Dual Supply: -8V~-2.5V;2.5V~8V
Rail to Rail: Rail-to-rail output
Single Supply: 5V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.05 g
