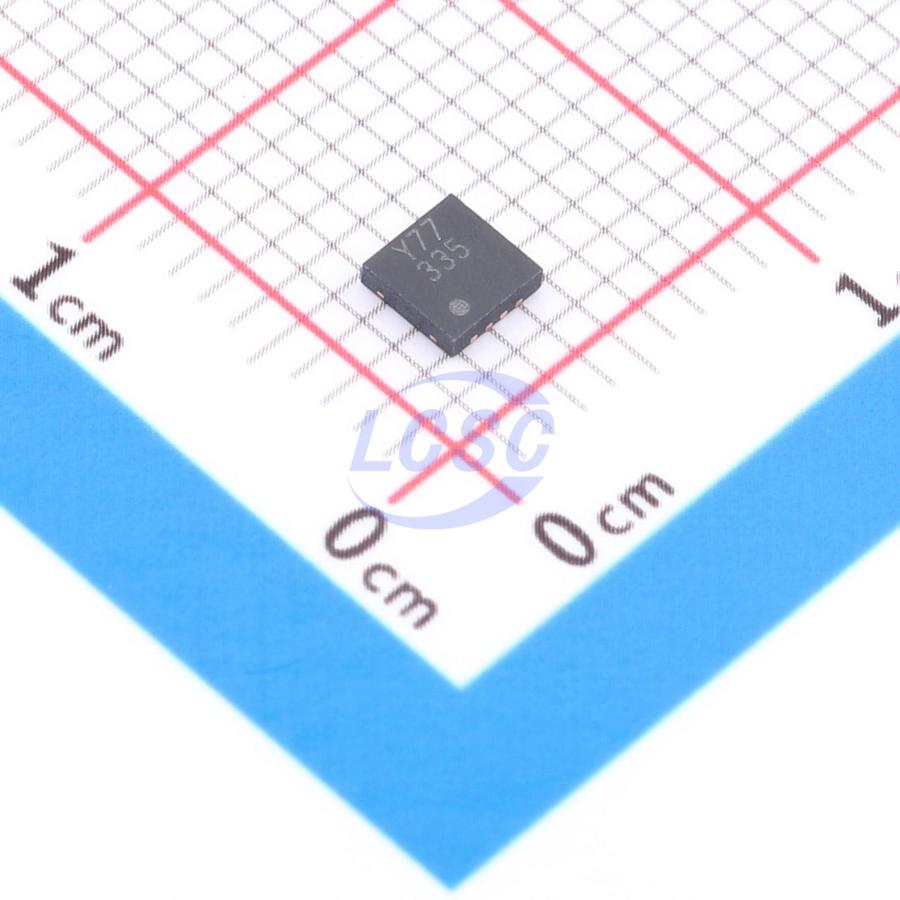

ADA4523-1BCPZ-RL7

36mA 1 500nV 1.8V/us 160dB 100pA 4.5mA 5MHz Rail-to-rail output LFCSP-8-WD(3x3) Instrumentation, Op Amps, Buffer Amps RoHS

LFCSP-8-WD(3x3)ROHS CompliantActive

36 V, Low Noise, Zero Drift Op Amp

Manufacturer: ADI
Manufacturer part #: ADA4523-1BCPZ-RL7
Store part #: C4371130
Package / case: LFCSP-8-WD(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C4371130

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹650.32	₹650.32
10+	₹634.87	₹6,348.70
30+	₹624.42	₹18,732.60
100+	₹614.19	₹61,419.00

Quantity (min 1)

1 × ₹650.32

₹650.32

excl. GST

₹767.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

ADA4523-1BCPZ-RL7

₹650.32 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 36mA
Number of Channels: 1
Vos - Input Offset Voltage: 500nV
Slew Rate: 1.8V/us
Input Offset Current(Ios): 200pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 160dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 4.5mA
Gain Bandwidth Product: 5MHz
Features: Enable/shutdown function;EMI filtering/RF suppression;Zero drift / auto-zero;Reverse-phase input protection
Input Voltage Noise Density: 4.2nV/√Hz@1kHz
Dual Supply: -15V~15V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.84 g

Overview

The ADA4523-1 is a high voltage, low noise, zero drift op amp that offers precision dc performance over a wide supply range of 4.5V to 36V. Offset voltage and 1/f noise are suppressed, allowing this op amp to achieve a maximum offset voltage of ±4μV and a 0.1Hz to 10Hz input noise voltage of 88nV p-p typical. The self calibrating circuitry of the ADA4523-1 results in low offset voltage drift with temperature (0.01μV/°C maximum) and zero drift over time. Additionally, the ADA4523-1 uses on-chip filtering to achieve high immunity to electromagnetic interference (EMI). Wide supply range, combined with low noise, low offset, 168 dB power supply rejection ratio (PSRR), and 160 dB common-mode rejection ratio (CMRR), make the ADA4523-1 well suited for high dynamic range test, measurement, and instrumentation systems.

Applications

High resolution data acquisition
Reference buffering
Test and measurement
Electronic scales
Thermocouple amplifiers
Strain gages
Low-side current sense

Key features

Supply voltage range: 4.5 V to 36 V
Offset voltage: ±4 µV maximum at 5 V
Offset voltage drift: 0.01 µV/°C maximum at 5 V
Input noise Voltage: 88 nV p-p from 0.1 Hz to 10 Hz typical
Spectral density voltage: 4.2 nV/√Hz typical at 1 kHz
Rail-to-rail output
Unity-gain stable
GBP: 5 MHz typical
Slew rate: 1.8 V/µs typical falling
PSRR: 168 dB typical at VS = 4.5 V to 36 V
Open-loop voltage gain: 160 dB typical at VOUT = - 14.75 V to +14.75 V, RL = 10 kΩ, VS = 30 V
CMRR: 160 dB typical at VCM = - 15.1 V to +13.5 V, VS = 30 V
Integrated EMI filters
Shutdown mode
Ground sense
Available in 8-lead SOIC, 8-lead MSOP, and 8-lead LFCSP
