ADIDatasheet (PDF)

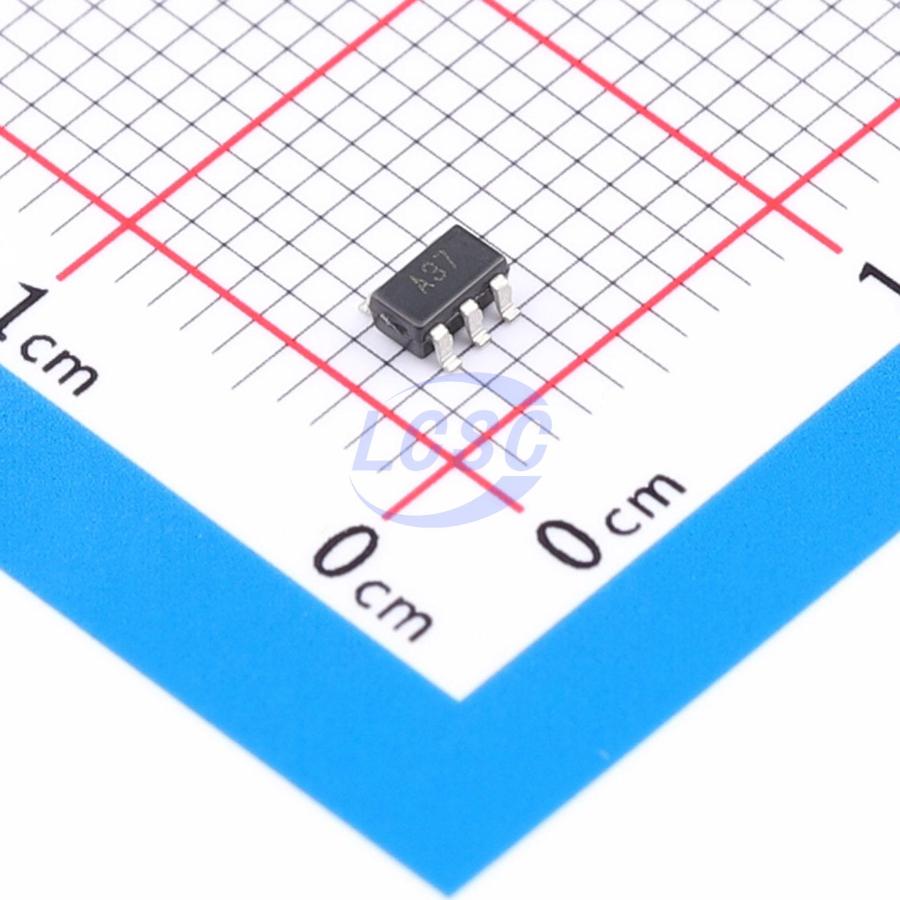

ADA4610-1ARJZ-R2
63mA 1 400uV 17V/us 100dB 5pA 1.6mA 16.3MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- ADA4610-1ARJZ-R2
- Store part #
- C208364
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C208364
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹829.71 | ₹829.71 |
| 10+ | ₹816.54 | ₹8,165.40 |
| 30+ | ₹807.64 | ₹24,229.20 |
| 100+ | ₹798.93 | ₹79,893.00 |
1 × ₹829.71
₹829.71
excl. GST
₹979.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per reel
ADA4610-1ARJZ-R2
₹829.71 for 1 + GST
Specifications
- Output Current
- 63mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 400uV
- Slew Rate
- 17V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 1.6mA
- Gain Bandwidth Product
- 16.3MHz
- Features
- Built-in compensation;Overvoltage protection;High capacitive load driving
- Input Voltage Noise Density
- 7.3nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
- Rail to Rail
- Rail-to-rail output
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
