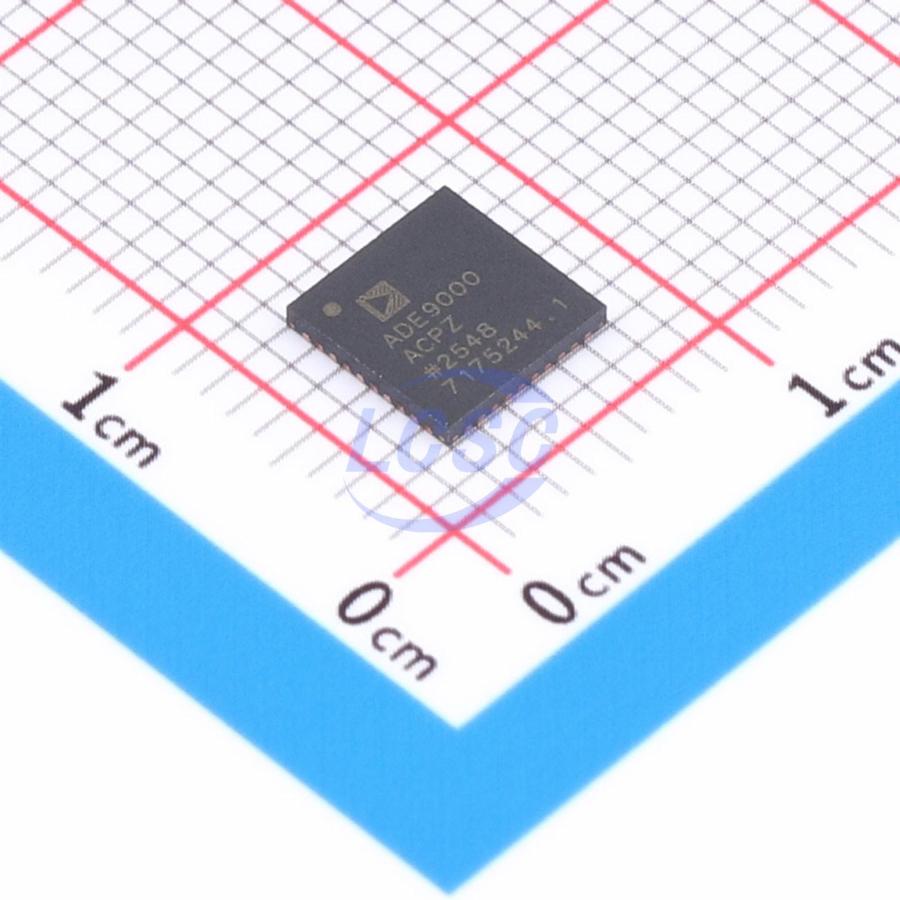

ADE9000ACPZ-RL

The ADE9000 is a highly accurate, fully integrated, multiphase energy and power quality monitoring device. Superior analog performance and a digital signal processing (DSP) core enable accurate energy monitoring over a wide dynamic range. An integrated high end reference ensures low drift over temperature with a combined drift of less than ±25 ppm/°C maximum for the entire channel including a programmable gain amplifier (PGA) and an analog-to-digital converter (ADC). The ADE9000 offers complete power monitoring capability by providing total as well as fundamental measurements on rms, active, reactive, and apparent powers and energies. Advanced features such as dip and swell monitoring, frequency, phase angle, voltage total harmonic distortion (VTHD), current total harmonic distortion (ITHD), and power factor measurements enable implementation of power quality measurements. The % cycle rms and 10 cycle rms/12 cycle rms, calculated according to IEC 61000-4-30 Class S, provide instantaneous rms measurements for real-time monitoring. The ADE9000 offers an integrated flexible waveform buffer that stores samples at a fixed data rate of 32 kSPS or 8 kSPS, or a sampling rate that varies based on line frequency to ensure 128 points per line cycle. Resampling simplifies fast Fourier transform (FFT) calculation of at least 50 harmonics in an external processor. The ADE9000 simplifies the implementation of energy and power quality monitoring systems by providing tight integration of acquisition and calculation engines. The integrated ADCs and DSP engine calculate various parameters and provide data through user accessible registers or indicate events through interrupt pins. With seven dedicated ADC channels, the ADE9000 can be used on a 3-phase system or up to three single-phase systems. It supports current transformers (CTs) or Rogowski coils for current measurements. A digital integrator eliminates a discrete integrator required for Rogowski coils. The ADE9000 absorbs most complexity in calculations for a power monitoring system. With a simple host microcontroller, the ADE9000 enables the design of standalone monitoring or protection systems, or low cost nodes uploading data into the cloud.

Applications

• Energy and power monitoring
• Power quality monitoring
• Protective devices
• Machine health
• Smart power distribution units
• Polyphase energy meters

Key features

• 7 high performance ADCs
• 101 dB SNR
• Wide input voltage range: ±1 V, 707 mV rms FS at gain = 1
• Differential inputs
• ±25 ppm/°C maximum channel drift (including ADC, internal VREF, PGA drift) enabling 10000:1 dynamic input range
• Class 0.2 metrology with standard external components
• Power quality measurements
• Enables implementation of IEC 61000-4-30 Class S
• VRMS %, IRMS %
• rms voltage refreshed each half cycle
• 10 cycle rms/12 cycle rms
• Dip and swell monitors
• Line frequency—one per phase
• Zero crossing, zero-crossing timeout
• Phase angle measurements
• Supports CTs and Rogowski coil (di/dt) sensors
• Multiple range phase/gain compensation for CTs
• Digital integrator for Rogowski coils
• Flexible waveform buffer
• Able to resample waveform to ensure 128 points per line cycle for ease of external harmonic analysis
