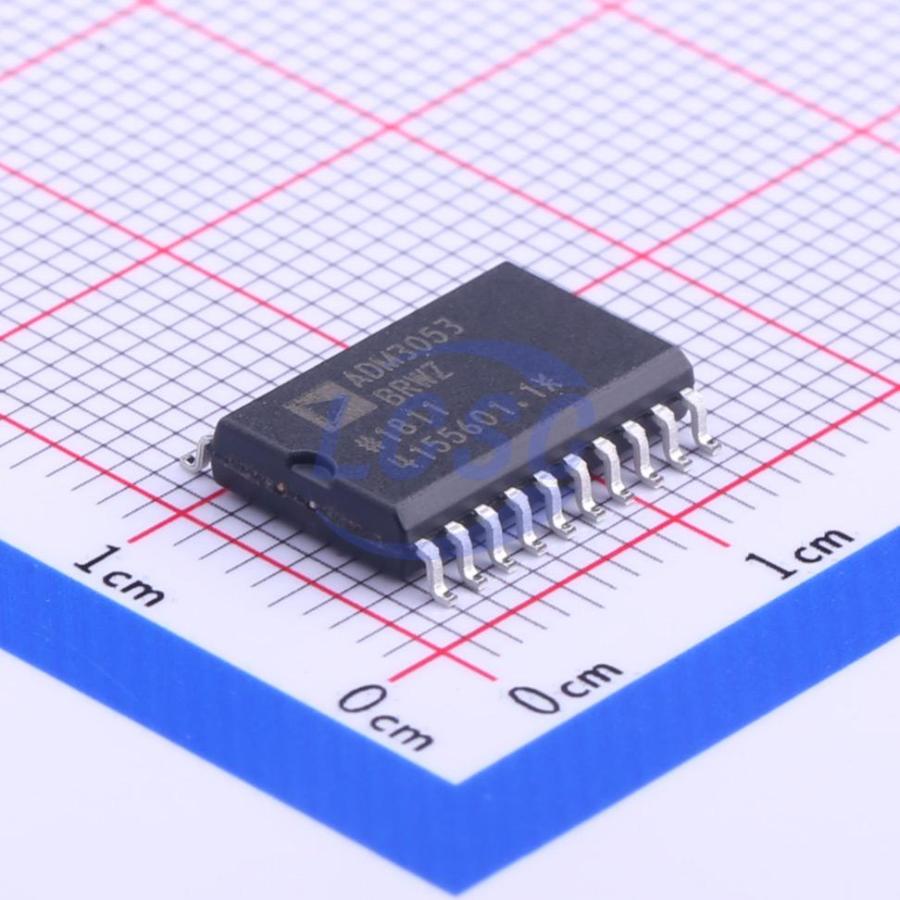

ADM3053BRWZ-REEL7

The ADM3053 is an isolated Controller Area Network (CAN) physical layer transceiver with an integrated isolated DC/DC converter, compliant with the ISO 11898 standard. The device employs iCoupler technology to integrate a dual-channel isolator, a CAN transceiver, and an isoPower DC/DC converter in a single SOIC SMT package. An on-chip oscillator generates a pair of square waves to drive an internal transformer that provides an isolated power supply. Operating from a single 5 V supply, the device delivers a fully isolated CAN solution. The ADM3053 creates a fully isolated interface between the CAN protocol controller and the physical bus layer. It supports data rates up to 1 Mbps. The device features current limiting and thermal shutdown to protect against output short circuits. Rated for the industrial temperature range, it is available in a 20-lead wide-body SOIC package.

Applications

• CAN data bus industrial fieldbus network

Key features

• 2.5 kV rms signal and power isolated CAN transceiver
• Integrated isoPower isolated DC/DC converter
• VCC operating voltage: 5 V
• VIO operating voltage: 5 V or 3.3 V
• Compliant with ISO 11898
• Data rate up to 1 Mbps
• Unpowered node does not disturb the bus
• Bus supports 110 or more nodes
• Slope control for reduced EMI
• Thermal shutdown protection
• High common-mode transient immunity: >25 kV/μs
• Safety and regulatory certifications (pending) UL recognized 1-minute 2,500 Vrms per UL 1577; VDE certified per DIN EN 60747-5-2 (VDE 0884 Amendment 2): 2003-01
• Industrial temperature range: −40°C to +85°C
• Wide-body 20-pin SOIC package
