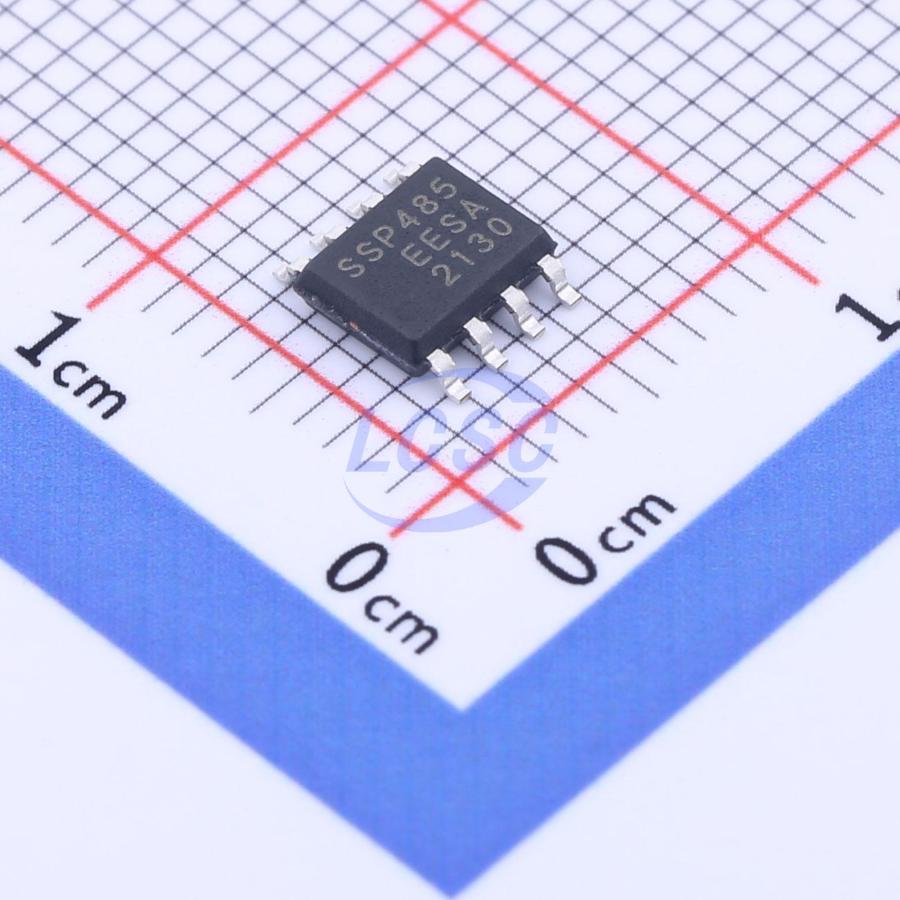

SSP485
5V Transceiver 2Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8Active
+15kV ESD Protected、2Mbps Data Rate RS-485
- Manufacturer
- Siproin
- Manufacturer part #
- SSP485
- Store part #
- C277895
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,58,870 in stock
#C277895
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.41 | ₹117.05 |
| 50+ | ₹19.40 | ₹970.00 |
| 150+ | ₹17.45 | ₹2,617.50 |
| 500+ | ₹15.70 | ₹7,850.00 |
| 2,500+ | ₹11.95 | ₹29,875.00 |
| 4,000+ | ₹11.66 | ₹46,640.00 |
5 × ₹23.41
₹117.05
excl. GST
₹138.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP485
₹117.05 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 2Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Low-power mode;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 450uA
Packaging & compliance
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The SSP485 is a half-duplex high speed transceiver for RS-485 and RS422 communication. IC contains one driver and one receiver. The SSP485 has a fail-safe circuit. Each driver output and receiver input is protected against ±15kV electrostatic discharge (HBM) (ESD) shocks. The SSP485 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus. Mainly used in RS-485/RS-422 communication system.
Applications
- Intelligent instrument
- Industrial process control
- Building automation network
- Motor control
- EMI sensitive transceiver application
Key features
- I/O pin ESD protection: +15kV HBM. Other pins have level 3 ESD protection: >+8kV HBM
- Fractional unit load allows up to 256 devices on the bus
- +5V operating voltage (with 3.3V power supply, recommend the maximum transmission rate is 500Kbps)
- Data transmission up to 2Mbps
- Low current shutdown mode operating current: 1nA
- Current limiting and thermal turn-off function can be used for driver overload protection
- SOP8 and DIP8 package
