MaxLinearDatasheet (PDF)

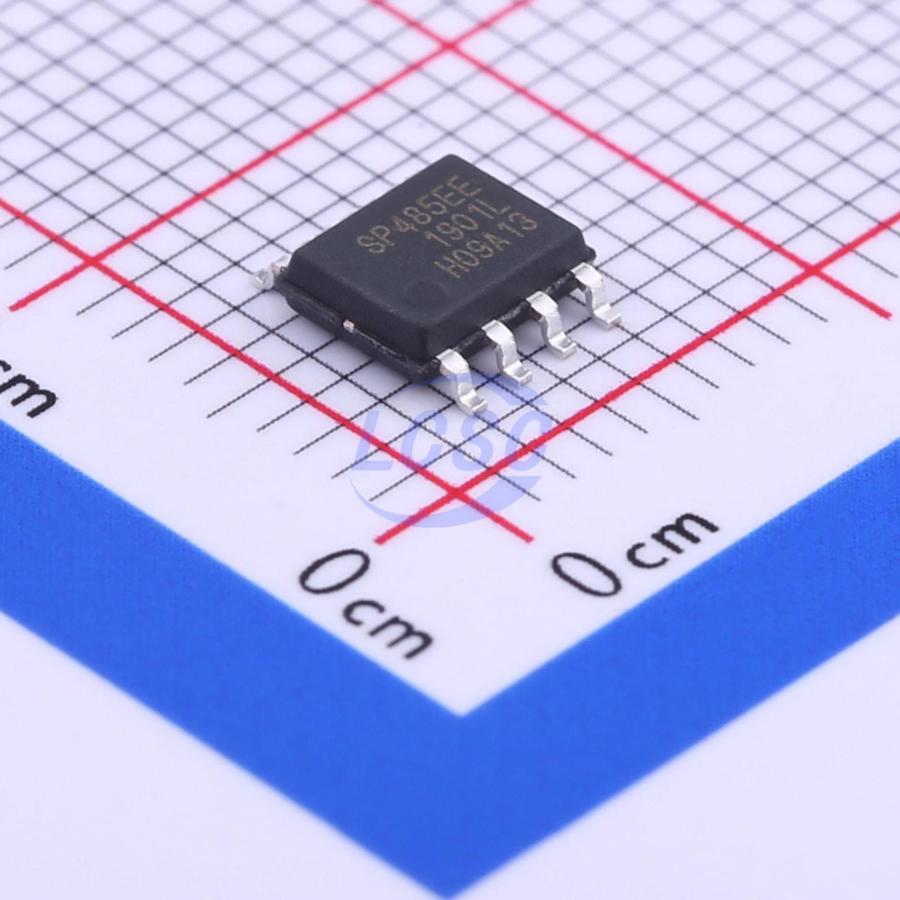

SP485EEN-L/TR
4.75V~5.25V Transceiver 10Mbps SOIC-8 Drivers, Receivers, Transceivers RoHS
PopularSOIC-8ROHS3 CompliantActive
Enhanced LowPower Half-Duplex RS-485 Transceivers
- Manufacturer
- MaxLinear
- Manufacturer part #
- SP485EEN-L/TR
- Store part #
- C6855
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,74,365 in stock
#C6855
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.09 | ₹205.45 |
| 50+ | ₹31.63 | ₹1,581.50 |
| 150+ | ₹27.00 | ₹4,050.00 |
| 500+ | ₹22.89 | ₹11,445.00 |
| 2,500+ | ₹21.75 | ₹54,375.00 |
| 5,000+ | ₹21.08 | ₹1,05,400.00 |
5 × ₹41.09
₹205.45
excl. GST
₹242.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP485EEN-L/TR
₹205.45 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 5A991
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.226 g
Overview
The SP481E and SP485E are a family of half-duplex transceivers that meet the specifications of RS - 485 and RS - 422 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on these devices to over ±15 kV for both Human Body Model and IEC61000 - 4 - 2 Air Discharge Method. These devices are pin-to-pin compatible with MaxLinear's SP481 and SP485 devices as well as popular industry standards. As with the original versions, the SP481E and SP485E feature Maxlinear's BiCMOS design allowing low power operation without sacrificing performance. The SP481E and SP485E meet the requirements of the RS - 485 and RS - 422 protocols up to 10Mbps under load. The SP481E is equipped with a low power shutdown mode.
Key features
- 5V only
- Low power BiCMOS
- Driver/receiver enable for multi-drop configurations
- Low power shutdown mode (SP481E)
- Enhanced ESD specifications:
- ±15 kV Human Body Model
- ±15 kV IEC61000 - 4 - 2 Air Discharge
- ±8 kV IEC61000 - 4 - 2 Contact Discharge
- Available in RoHS compliant, lead free packaging.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WS3088EESA-GEC#C2691413NJGW · SOP-8 | NJGW | SOP-8 | 2,855 | ₹52.63 · 2,855 in stock | View |
 | HT485EARZ#C2834462HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 1,861 | ₹44.94 · 1,861 in stock | View |
 | HT485EBRZ#C2937061HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 35 | ₹51.87 · 35 in stock | View |
 | ST485EBDR(ES)#C41438305ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,660 | ₹23.92 · 1,660 in stock | View |
 | COS485RS#C5334495COSINE · SOP-8 | COSINE | SOP-8 | 20 | ₹27.89 · 20 in stock | View |
