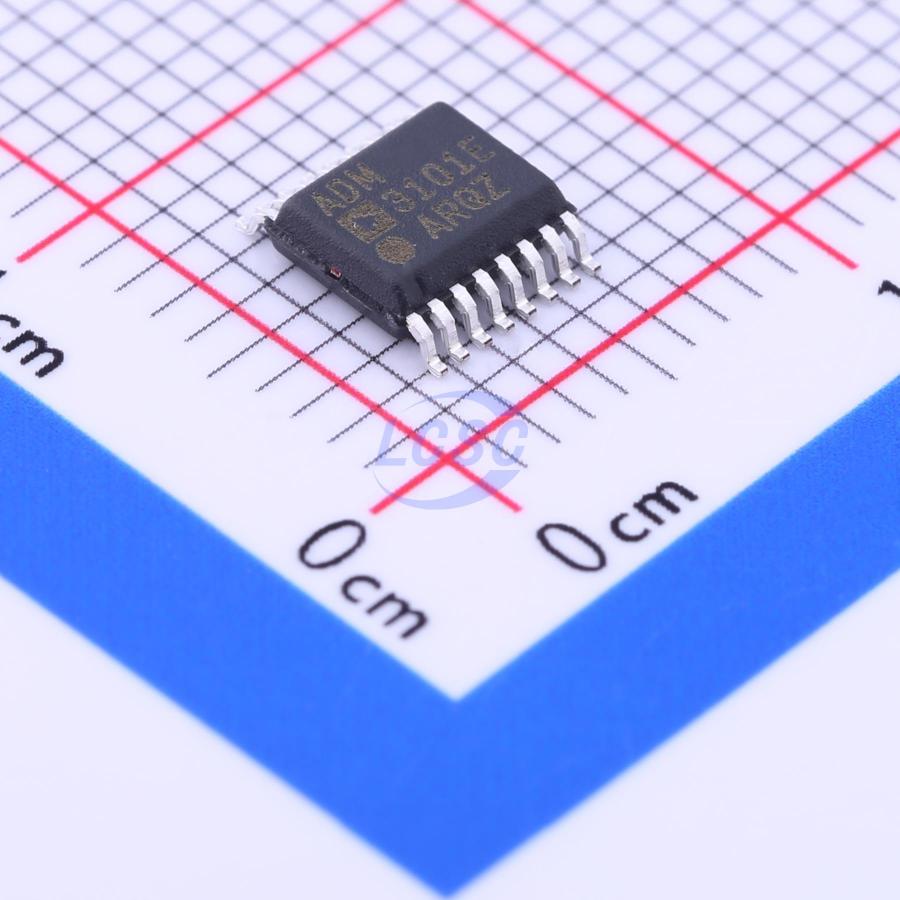

ADI

ADM3101EARQZ-REEL

Transceiver 3V~5.5V 460Kbps QSOP-16-150mil Drivers, Receivers, Transceivers

QSOP-16-150milRoHSActive

±15 kV ESD Protected, 3.3 V Single-Channel RS-232 Line Driver/Receiver

Manufacturer: ADI
Manufacturer part #: ADM3101EARQZ-REEL
Store part #: C61033
Package / case: QSOP-16-150mil
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,681 in stock

#C61033

Stock & price checked 42 h ago

Quantity	Unit price	Pack price
1+	₹381.50	₹381.50
10+	₹328.00	₹3,280.00
30+	₹294.27	₹8,828.10
100+	₹258.83	₹25,883.00
500+	₹243.39	₹1,21,695.00
1,000+	₹236.65	₹2,36,650.00

Quantity (min 1)

1 × ₹381.50

₹381.50

excl. GST

₹450.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

ADM3101EARQZ-REEL

₹381.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 460Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 1
Number of Receivers: 1
Quiescent Supply Current: 1.5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.4 g

Overview

The ADM3101E is a high speed, single-channel, RS-232/ ITU-T V.28 transceiver interface device that operates from a single 3.3 V power supply. Low power consumption makes it ideal for battery-powered portable instruments. The ADM3101E conforms to the EIA/TIA-232E and ITU-T V.28 specifications and operates at data rates of up to 460 kbps. All RS-232 (TOUT and RIN) and CMOS (TIN and ROUT) inputs and outputs are protected against electrostatic discharges (up to ±15 kV ESD protection). Because of the ±15 kV ESD protection of the ADM3101E input/output pins, this device is ideally suited for operation in electrically harsh environments or where RS-232 cables are frequently plugged and unplugged. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single 3.3 V supply. The ADM3101E is available in both a 12-lead LFCSP and 16-lead QSOP, specified over the -40°C to +85°C temperature range.
