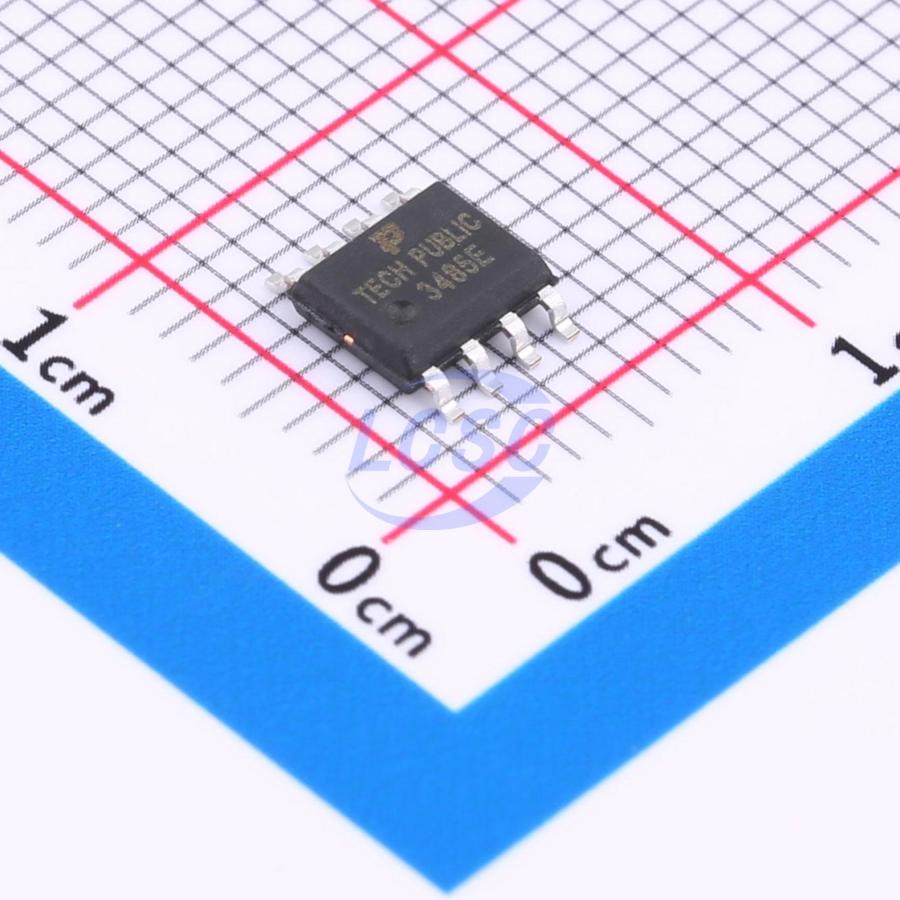

ADM3485EARZ
3V~5.5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
Low-Power,Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ADM3485EARZ
- Store part #
- C7603387
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,740 in stock
#C7603387
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.05 | ₹195.25 |
| 50+ | ₹34.50 | ₹1,725.00 |
| 150+ | ₹32.55 | ₹4,882.50 |
| 500+ | ₹29.94 | ₹14,970.00 |
| 2,500+ | ₹28.85 | ₹72,125.00 |
| 5,000+ | ₹28.21 | ₹1,41,050.00 |
5 × ₹39.05
₹195.25
excl. GST
₹230.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM3485EARZ
₹195.25 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 700uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.205 g
Overview
ADM3485 is a RS -485 transceiver with 3.0V~5.5V wide power supply, bus port ESD protection capacity of over 15kV HBM, bus withstand voltage range of ±15V, half duplex, low power consumption, and fully meet the requirements of TIA / EIA-485 standard. ADM3485 includes a driver and a receiver, both of which can be enabled and closed independently. When both are disabled, both the driver and the receiver output are high resistance state. ADM3485 has 1/8 load, which allows 256 ADM3485 transceivers to be connected to the same communication bus. It can realize error-free data transmission up to 100Mbps. ADM3485 has a working voltage range of 3.0~5.5V, and has the functions of fail safe, over temperature protection, current-limiting protection, over-voltage protection, etc.
Applications
- RS-485 Communications
- Level Translators
- Security Equipment
- Industrial Control Equipment
- Watt-hour meter
Key features
- Fail-safe Circuitry
- Low Power Consumption
- Up to 256 Transceivers can be Attached to The Bus
- Maximum Transmission Rate: 10Mbps
- ESD:≥±15kV
- SOP8 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3485EEN#C7603384TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 770 | ₹50.42 · 770 in stock | View |
 | MAX3485ESA#C7603385TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 4,765 | ₹51.93 · 4,765 in stock | View |
 | ST3485EBDR#C7603386TECH PUBLIC · SOIC8 | TECH PUBLIC | SOIC8 | 1,625 | ₹51.07 · 1,625 in stock | View |
 | TP3485ES8#C7603388TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 1,840 | ₹53.33 · 1,840 in stock | View |
