UMWDatasheet (PDF)

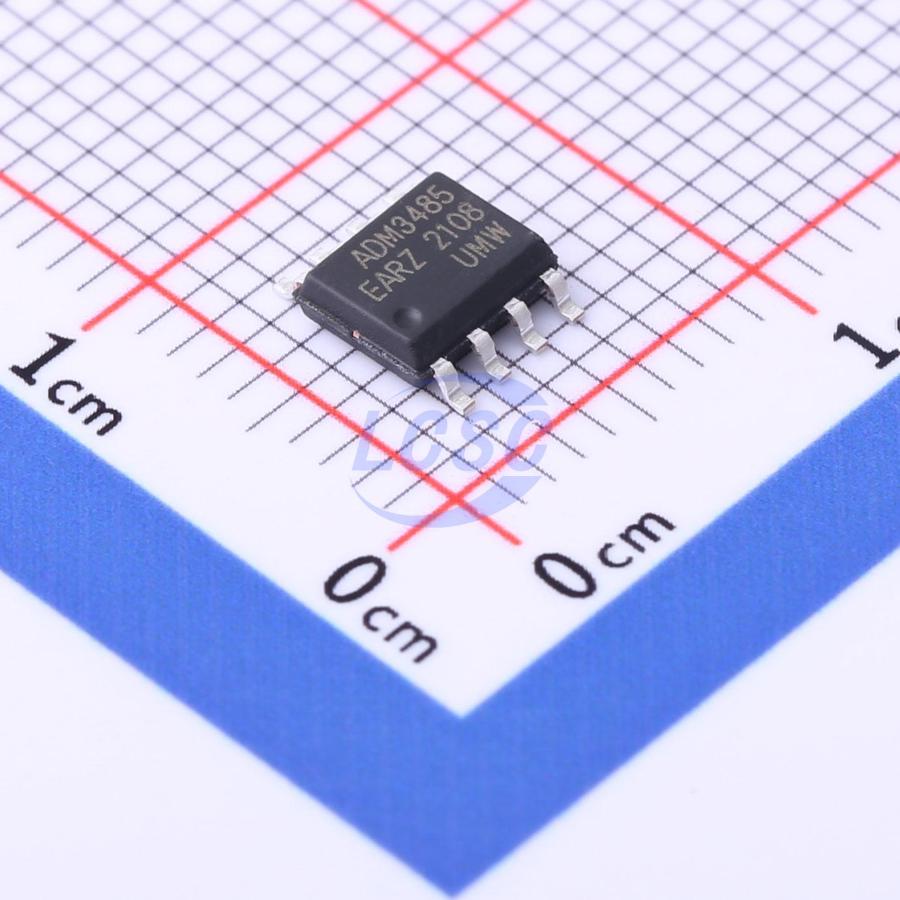

ADM3485EARZ(UMW)
2.97V~3.63V Transceiver 12Mbps 256 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
3.3V power supply, up to 256 nodes, 12Mbps half-duplex, RS485/RS422 transceiver
- Manufacturer
- UMW
- Manufacturer part #
- ADM3485EARZ(UMW)
- Store part #
- C2829053
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,200 in stock
#C2829053
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.54 | ₹262.70 |
| 50+ | ₹40.81 | ₹2,040.50 |
| 150+ | ₹35.80 | ₹5,370.00 |
| 500+ | ₹26.75 | ₹13,375.00 |
| 2,500+ | ₹23.96 | ₹59,900.00 |
| 5,000+ | ₹22.28 | ₹1,11,400.00 |
5 × ₹52.54
₹262.70
excl. GST
₹309.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM3485EARZ(UMW)
₹262.70 for 5 + GST
Specifications
- Voltage - Supply
- 2.97V~3.63V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 800uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
The ADM3485E is a 3.3V-powered, half-duplex, low-power RS-485 transceiver that fully complies with TIA/EIA-485 standard requirements. The ADM3485E contains one driver and one receiver, both of which can be independently enabled and disabled. When both are disabled, the driver and receiver outputs enter a high-impedance state. The ADM3485E features 1/8 unit load, allowing up to 256 ADM3485E transceivers to be connected on the same communication bus. Error-free data transmission at up to 12Mbps is achievable. The ADM3485E operates over a supply voltage range of 3.0V to 3.6V and provides failsafe protection, overtemperature protection, current limiting protection, and overvoltage protection.
Key features
- 3.3V supply, half-duplex
- 1/8 unit load, supports up to 256 devices on the bus
- Driver output short-circuit protection
- Over-temperature protection
- Low-power shutdown
- Receiver open-circuit protection
- High noise immunity
- Integrated transient voltage suppression
- Data rates up to 12Mbps in electrically noisy environments
- RS-485 I/O pins with 15kV ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA(UMW)#C668204UMW · SOP-8 | UMW | SOP-8 | 93,095 | ₹49.74 · 93,095 in stock | View |
 | SP3485EEN(UMW)#C668205UMW · SOP-8 | UMW | SOP-8 | 95,885 | ₹26.16 · 95,885 in stock | View |
 | SP3485EN(UMW)#C44850899UMW · SOP-8 | UMW | SOP-8 | 1,930 | ₹30.14 · 1,930 in stock | View |
 | ST3485EBDR(UMW)#C5118052UMW · SOP-8 | UMW | SOP-8 | On request | Price on request | Quote |
