ADI

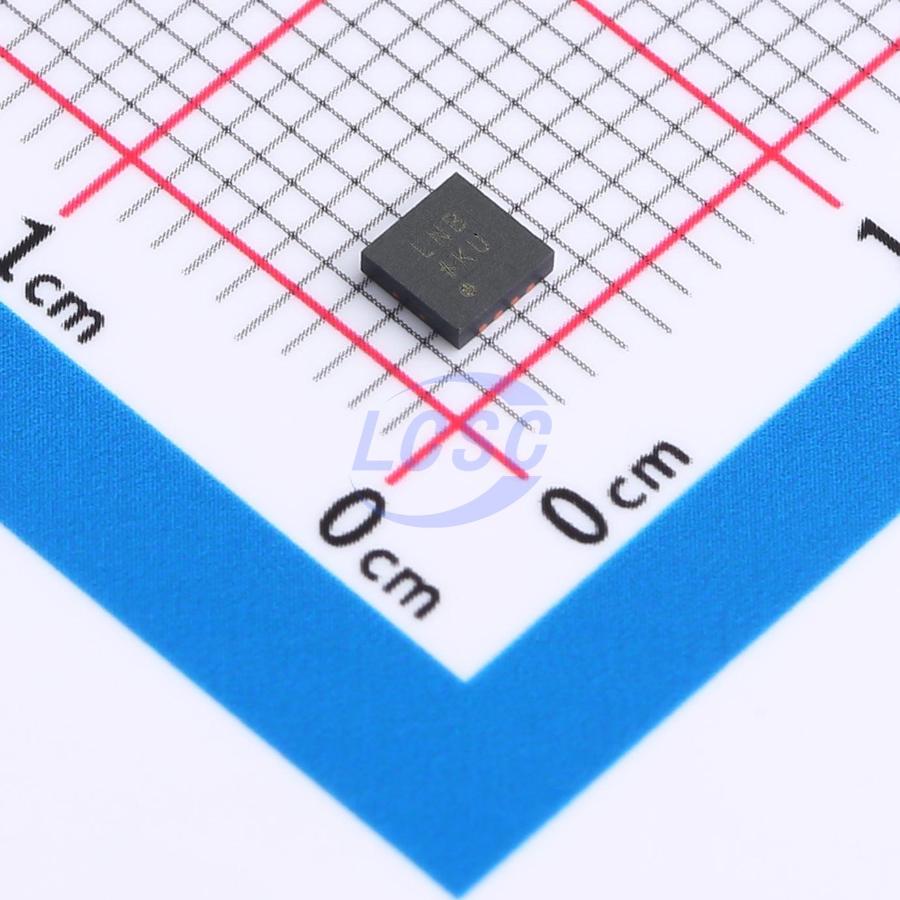

ADM7150ACPZ-5.0-R2

5V Positive Fixed LFCSP-8-WD(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

LFCSP-8-WD(3x3)ROHS CompliantActive

Manufacturer: ADI
Manufacturer part #: ADM7150ACPZ-5.0-R2
Store part #: C7457594
Package / case: LFCSP-8-WD(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

33 in stock

#C7457594

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,482.18	₹1,482.18
10+	₹1,268.36	₹12,683.60
30+	₹1,138.20	₹34,146.00
100+	₹1,028.91	₹1,02,891.00

Quantity (min 1)

1 × ₹1,482.18

₹1,482.18

excl. GST

₹1,748.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

ADM7150ACPZ-5.0-R2

₹1,482.18 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 4.3mA
Output Configuration: Positive
Operating Voltage: 16V
Output Current: 800mA
Output Type: Fixed
Features: Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Thermal shutdown;Short Circuit Protection;Noise bypass terminal

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.185 g

Overview

The ADM7150 is a low dropout (LDO) linear regulator that operates from 4.5 V to 16 V and provides up to 800 mA of output current. Using an advanced proprietary architecture, it provides high power supply rejection (>90 dB from 1 kHz to 1 MHz), ultralow output noise (<1.7 nV/√Hz), and achieves excellent line and load transient response with a 10 μF ceramic output capacitor. The ADM7150 is available in 1.8 V, 2.8 V, 3.0 V, 3.3 V, 4.5 V, 4.8 V, and 5.0 V fixed outputs. In addition, 16 fixed output voltages between 1.5 V and 5.0 V are available upon request. The ADM7150 regulator typical output noise is 1.0 μV rms from 100 Hz to 100 kHz for fixed output voltage options, and the noise spectral density is 1.7 nV/√Hz from 10 kHz to 1 MHz. The ADM7150 is available in 8 - lead, 3 mm×3 mm LFCSP and 8 - lead SOIC packages, making it not only a very compact solution but also providing excellent thermal performance for applications requiring up to 800 mA of output current in a small, low profile footprint.

Applications

Regulated power noise sensitive applications: RF mixers, phase - locked loops (PLLs), voltage - controlled oscillators (VCOs), and PLLs with integrated VCOs
Communications and infrastructure
Cable digital - to - analog converter (DAC) drivers
Backhaul and microwave links

Key features

Input voltage range: 4.5 V to 16 V
Maximum output current: 800 mA
Low noise: 1.0 μV rms total integrated noise from 100 Hz to 100 kHz; 1.6 μV rms total integrated noise from 70 Hz to 100 kHz
Noise spectral density: 1.7 nV/√Hz typical from 10 kHz to 1 MHz
Power supply rejection ratio (PSRR) at 400 mA load: >90 dB from 1 kHz to 100 kHz, VOUT = 5 V; >60 dB at 1 MHz, VOUT = 5 V
Dropout voltage: 0.6 V at VOUT = ±, 800 mA load
Initial voltage accuracy: ±1%
Voltage accuracy over line, load and temperature: ±2%
Quiescent current (IGND): 4.3 mA at no load
Low shutdown current: 0.1 μA
Stable with a 10 μF ceramic output capacitor
Fixed output voltage options: 1.8 V, 2.8 V, 3.0 V, 3.3 V, 4.5 V, 4.8 V, and 5.0 V (16 outputs between 1.5 V and 5.0 V are available)
Exposed pad 8 - lead LFCSP and 8 - lead SOIC packages
