ADI

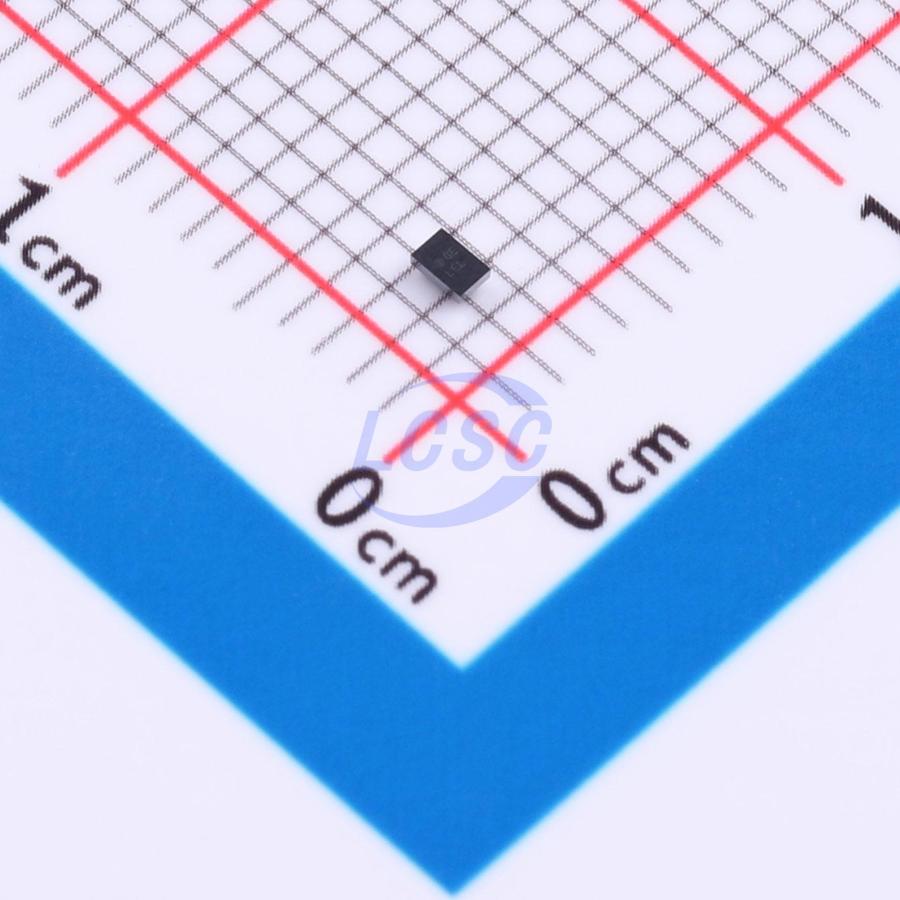

ADP220ACBZ-2818R7

Positive Fixed WLCSP-6(1x1.5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

WLCSP-6(1x1.5)ROHS3 CompliantActive

Dual, 200 mA, Low Noise, High PSRR Voltage Regulator

Manufacturer: ADI
Manufacturer part #: ADP220ACBZ-2818R7
Store part #: C659124
Package / case: WLCSP-6(1x1.5)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C659124

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹380.35	₹380.35
10+	₹369.88	₹3,698.80
30+	₹362.83	₹10,884.90
100+	₹355.78	₹35,578.00

Quantity (min 1)

1 × ₹380.35

₹380.35

excl. GST

₹448.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADP220ACBZ-2818R7

₹380.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V;2.8V
Number of Outputs: 2
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 120uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 200mA
Features: Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.253 g

Overview

The 200 mA dual output ADP220/ADP221 combine high PSRR, low noise, low quiescent current, and low dropout voltage in a voltage regulator ideally suited for wireless applications with demanding performance and board space requirements. The low quiescent current, low dropout voltage, and wide input voltage range of the ADP220/ADP221 extend the battery life of portable devices. The ADP220/ADP221 maintain power supply rejection greater than 60 dB for frequencies as high as 100 kHz while operating with a low headroom voltage. The ADP220 offers much lower noise performance than competing LDOs without the need for a noise bypass capacitor. The ADP221 also includes an active pull-down to quickly discharge output loads. The ADP220/ADP221 are available in a miniature 6-ball WLCSP package and 6-ball bumped bare die and is stable with tiny 1 μF±30% ceramic output capacitors, resulting in the smallest possible board area for a wide variety of portable power needs. The ADP220/ADP221 are available in many output voltage combinations, ranging from 0.8 V to 3.3 V, and offer overcurrent and thermal protection to prevent damage in adverse conditions.

Applications

Mobile phones
Digital cameras and audio devices
Portable and battery-powered equipment
Portable medical devices
Post dc-to-dc regulation

Key features

Input voltage range: 2.5 V to 5.5 V
Dual independent 200 mA low dropout voltage regulators
Miniature 6-ball, 1.0 mm×1.5 mm WLCSP and 6-ball bumped bare die
Initial accuracy: ±1%
Stable with 1 μF ceramic output capacitors
No noise bypass capacitor required
Two independent logic controlled enables
Overcurrent and thermal protection
Active output pull-down (ADP221)
High PSRR: 76 dB PSRR up to 1 kHz, 70 dB PSRR at 10 kHz, 60 dB PSRR at 100 kHz, 40 dB PSRR at 1 MHz
Low output noise: 27 μV rms typical output noise at VOUT = 1.2 V, 50 μV rms typical output noise at VOUT = 2.88 V
Excellent transient response
Low dropout voltage: 150 mV @ 200 mA load
60 μA typical ground current at no load, both LDOs enabled
100 μs fast turn-on circuit
Guaranteed 200 mA output current per regulator
-40°C to +125°C junction temperature
