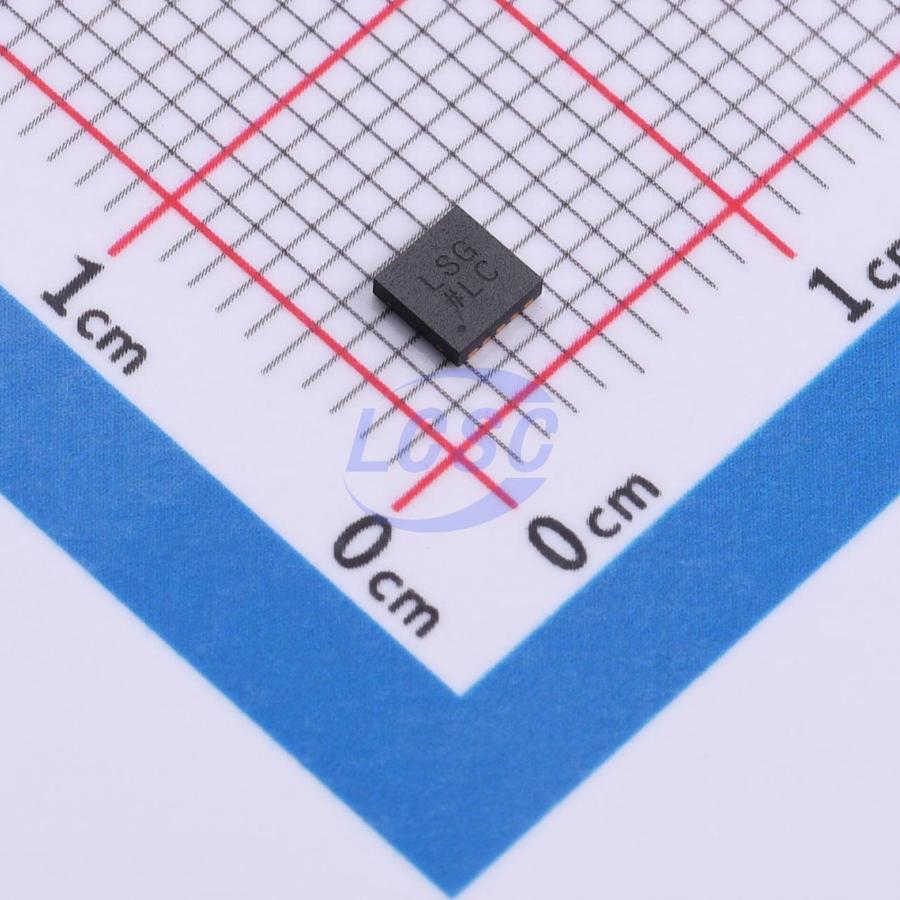

ADP7159ACPZ-01-R7

An adjustable linear regulator with an operating input voltage range of 2.3 V to 5.5 V, capable of delivering up to 2 A of output current. Depending on the variant, the output voltage can be set within the range of 1.2 V to 3.3 V. The device employs an advanced proprietary architecture to deliver high PSRR and ultralow noise, requiring only a single 10 µF ceramic output capacitor to achieve excellent line and load transient response. Typical output noise is 0.9 µV rms over the 100 Hz to 100 kHz band, with a noise spectral density of 1.7 nV/√Hz over the 10 kHz to 1 MHz band. Available in 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages, providing a compact solution with excellent thermal performance in a small, low-profile footprint for applications requiring up to 2 A of output current.

Applications

• Voltage regulation for noise-sensitive applications
• Communications and infrastructure
• Backhaul and microwave links

Key features

• Input voltage range: 2.3 V to 5.5 V
• Adjustable output voltage range: 1.2 V to 3.3 V
• Maximum load current: 2 A
• Low noise: 0.9 µV rms total integrated noise (100 Hz to 100 kHz); 1.6 µV rms total integrated noise (10 Hz to 100 kHz)
• Noise spectral density: 1.7 nV/√Hz (10 kHz to 1 MHz)
• PSRR: 68 dB (1 kHz to 100 kHz); 45 dB at 1 MHz
• Dropout voltage: 200 mV (typical) at I_OUT = 2 A, V_OUT = 3.3 V
• Initial accuracy: ±0.6% at I_LOAD = 10 mA
• Accuracy over line, load, and temperature: ±1.5%
• Quiescent current: 4.0 mA typical at 0 µA load; 9.0 mA typical at 2 A load
• Low shutdown current: 0.2 μA (typical)
• Stable with 10 µF ceramic output capacitor
• Available in 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages
• Precision enable function
• ADIsimPower tool support
