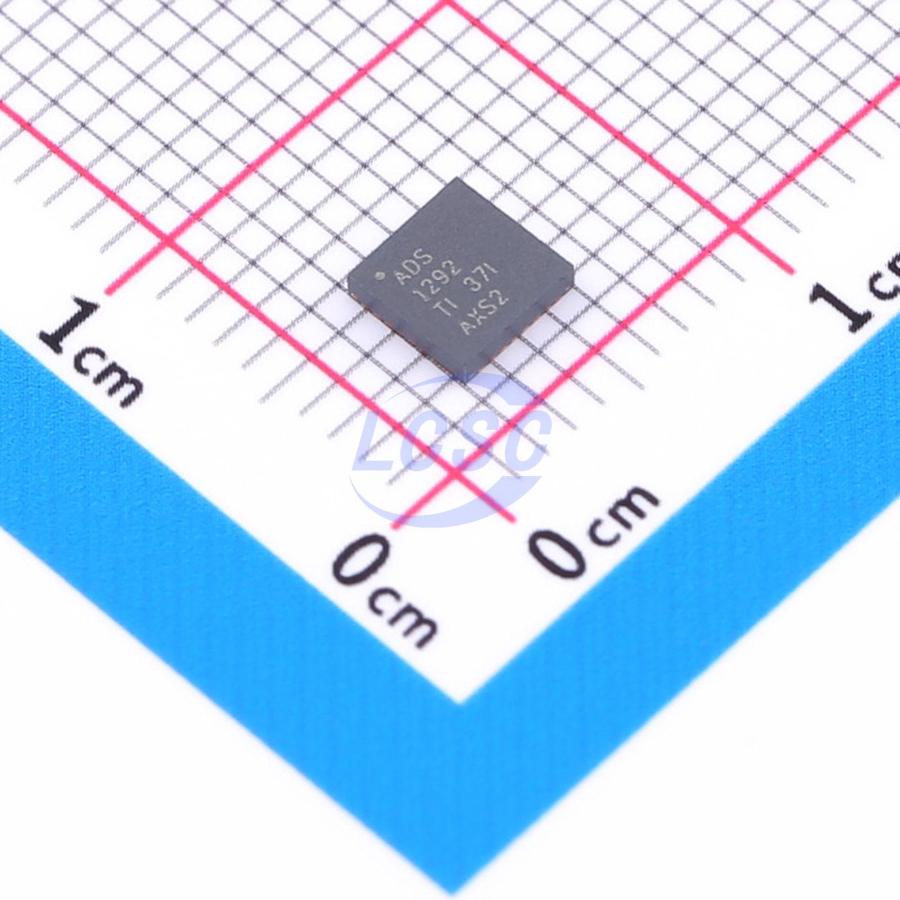

ADS1292IRSMR
SPI 2.7V~5.25V VQFN-32(4x4) Analog Front End (AFE) RoHS
Low-power, dual-channel, 24-bit analog front-end for biopotential measurement
- Manufacturer
- TI
- Manufacturer part #
- ADS1292IRSMR
- Store part #
- C544416
- Package / case
- VQFN-32(4x4)
- Category
- Analog Front End (AFE)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,128 in stock
#C544416
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹600.44 | ₹600.44 |
| 10+ | ₹513.39 | ₹5,133.90 |
| 30+ | ₹460.31 | ₹13,809.30 |
| 100+ | ₹415.70 | ₹41,570.00 |
1 × ₹600.44
₹600.44
excl. GST
₹708.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADS1292IRSMR
₹600.44 for 1 + GST
Specifications
- Clock Frequency
- 512kHz
- number of channels
- 2
- Interface
- SPI
- Voltage Reference Value
- 2.42V;4.033V
- Resolution(Bits)
- 24;-
- S/N Ratio
- 107dB
- Quiescent Current (Iq)
- 20uA
- Voltage - Supply
- 2.7V~5.25V
- Function
- Programmable gain;Multiplexers;Internal reference source;Built-in temperature sensor
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.073 g
Overview
The ADS1291, ADS1292, and ADS1292R are multichannel, simultaneously sampling, 24-bit Δ-Σ ADCs with built-in PGA, internal reference, and onboard oscillator. The ADS1291, ADS1292, and ADS1292R incorporate all the features typically required for portable, low-power medical ECG, sports, and fitness applications. With high integration and exceptional performance, the ADS1291, ADS1292, and ADS1292R enable scalable medical instrumentation systems with significantly reduced size, power consumption, and overall cost. The ADS1291, ADS1292, and ADS1292R feature a flexible input multiplexer per channel that can be independently connected to internally generated signals for test, temperature measurement, and continuous lead-off detection. In addition, any configuration of input channels can be selected to generate the right leg drive (RLD) output signal. The ADS1291, ADS1292, and ADS1292R operate at data rates up to 8kSPS. Continuous lead-off detection can be performed internally via on-chip excitation current sink or source. The ADS1292R version includes a fully integrated respiration impedance measurement function. These devices are rated for an operating temperature range of -40°C to +85°C.
Applications
- Medical instruments (ECG) including: patient monitoring — Holter, event, stress, and vital signs monitors, ECG, AED, and telemedicine
- Personal care and fitness monitors (heart rate, respiration, and ECG)
- High-precision, synchronous, multi-channel data acquisition
Key features
- Two low-noise PGAs and two high-resolution ADCs (ADS1292 and ADS1292R)
- Low power consumption: 335μW/channel
- Input-referred noise: 8μVPP (150Hz bandwidth, G = 6)
- Input bias current: 200pA
- Data rate: 125SPS to 8kSPS
- CMRR: 120dB
- Programmable gain: 1, 2, 3, 4, 6, 8, or 12
- Power supply: Unipolar or bipolar – Analog: 2.7V to 5.25V; Digital: 1.7V to 3.6V
- Built-in right leg drive amplifier, continuous lead-off detection, test signal
- Integrated respiration impedance measurement (ADS1292R)
- Built-in oscillator and reference
- Flexible power-down and standby modes
- SPI-compatible serial interface
- Operating temperature range: -40°C to +85°C
