TIDatasheet (PDF)

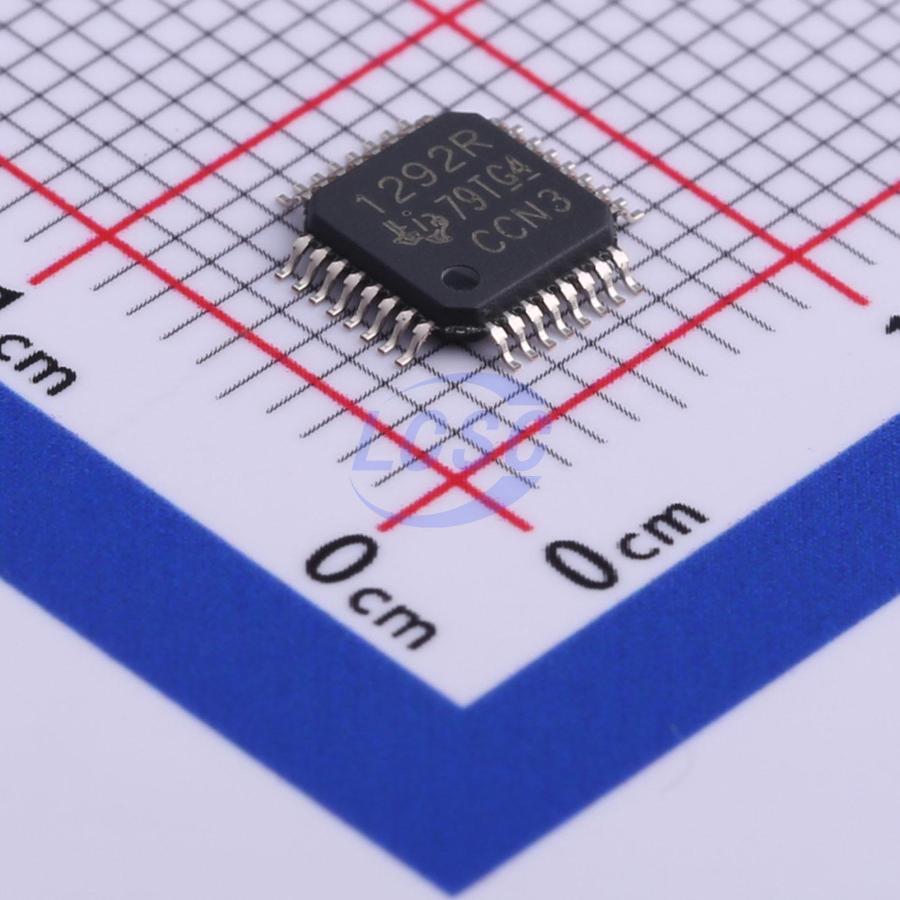

ADS1292RIPBSR
SPI 2.7V~5.25V TQFP-32(5x5) Analog Front End (AFE) RoHS
TQFP-32(5x5)ROHS3 CompliantActive
Low-Power, 2-Channel, 24-Bit Analog Front-End for Biopotential Measurements
- Manufacturer
- TI
- Manufacturer part #
- ADS1292RIPBSR
- Store part #
- C528635
- Package / case
- TQFP-32(5x5)
- Category
- Analog Front End (AFE)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,355 in stock
#C528635
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,075.33 | ₹1,075.33 |
| 10+ | ₹929.76 | ₹9,297.60 |
| 30+ | ₹797.04 | ₹23,911.20 |
| 100+ | ₹722.62 | ₹72,262.00 |
1 × ₹1,075.33
₹1,075.33
excl. GST
₹1,268.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADS1292RIPBSR
₹1,075.33 for 1 + GST
Specifications
- Clock Frequency
- 512kHz;485kHz~562.5kHz;1.94MHz~2.25MHz
- number of channels
- 2
- Voltage Reference Value
- 2.42V
- Interface
- SPI
- Resolution(Bits)
- 24;8kHz
- S/N Ratio
- 107dB
- Quiescent Current (Iq)
- 20uA
- Voltage - Supply
- 2.7V~5.25V
- Function
- Programmable gain;Multiplexers;Internal reference source;Built-in temperature sensor
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- Medical instruments (ECG) including:
- Patient monitoring: Holter, event, stress test, and vital signs monitoring, including ECG, AED, and telemedicine
- Personal care and fitness monitors (heart rate, respiration, and ECG)
- High-precision, simultaneous multi-channel data acquisition
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADS1292RIPBS#C1520681TI · TQFP-32(5x5) | TI | TQFP-32(5x5) | 9 | ₹781.72 · 9 in stock | View |
 | ADS1292IPBS#C1520665TI · TQFP-32(5x5) | TI | TQFP-32(5x5) | 28 | ₹859.42 · 28 in stock | View |
 | ADS1292IPBSR#C2651570TI · TQFP-32(5x5) | TI | TQFP-32(5x5) | 645 | ₹826.50 · 645 in stock | View |
 | ADS1291IPBSR#C543023TI · TQFP-32(5x5) | TI | TQFP-32(5x5) | On request | Price on request | Quote |
