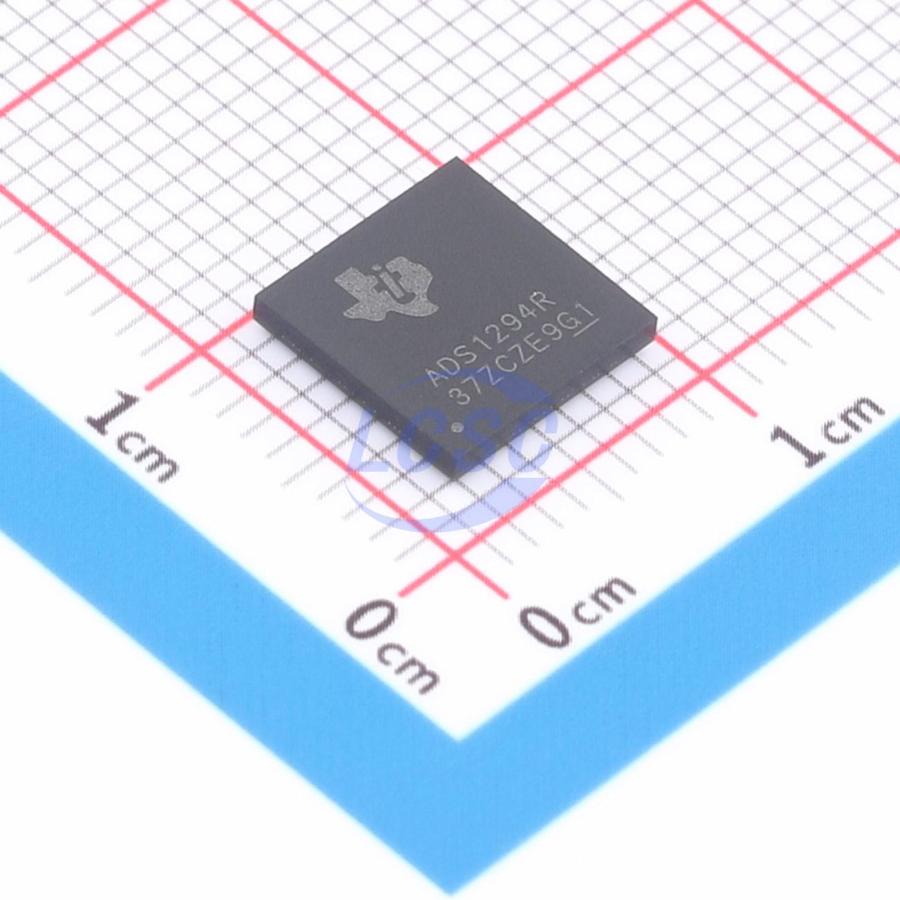

ADS1294RIZXGR

SPI 2.7V~5.25V NFBGA-64(8x8) Analog Front End (AFE) RoHS

NFBGA-64(8x8)ROHS3 CompliantActive

Low-power, 8-channel, 24-bit analog front-end for physiological signal measurement

Manufacturer: TI
Manufacturer part #: ADS1294RIZXGR
Store part #: C2651616
Package / case: NFBGA-64(8x8)
Category: Analog Front End (AFE)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,219 in stock

#C2651616

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹2,677.62	₹2,677.62
30+	₹2,547.12	₹76,413.60

Quantity (min 1)

1 × ₹2,677.62

₹2,677.62

excl. GST

₹3,159.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

ADS1294RIZXGR

₹2,677.62 for 1 + GST

Specifications

Clock Frequency: 2.048MHz;1.94MHz~2.25MHz
number of channels: 4
Voltage Reference Value: 2.4V
Interface: SPI
Resolution(Bits): 24;32000Hz
S/N Ratio: 112dB
Voltage - Supply: 2.7V~5.25V
Function: Programmable gain;Multiplexers;Internal reference source;Built-in temperature sensor
Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.293 g

Overview

ADS1294, ADS1296, ADS1298 (ADS129x) and ADS1294R, ADS1296R, ADS1298R (ADS129xR) are multichannel, simultaneously sampling, 24-bit Δ-Σ ADC families with integrated PGA, internal reference, and onboard oscillator. The ADS129x and ADS129xR incorporate all features commonly required in medical ECG and EEG applications. With high integration and exceptional performance, the ADS129x and ADS129xR enable scalable medical instrumentation systems with significantly reduced size, power consumption, and overall cost. Each channel of the ADS129x and ADS129xR features a flexible input mux that can be independently connected to internally generated signals for test, temperature, and lead-off detection. In addition, any configuration of input channels can be selected to generate the right leg drive (RLD) output signal. The ADS129x and ADS129xR operate at data rates up to 32kSPS, enabling software-based pace detection. Lead-off detection can be implemented on-chip via pull-up/pull-down resistors or excitation current sinks/sources. Three integrated amplifiers generate the Wilson Central Terminal (WCT) and Goldberger Central Terminal (GCT) required for standard 12-lead ECG. The ADS129xR version includes fully integrated respiration impedance measurement. Multiple ADS129x and ADS129xR devices can be daisy-chained in high channel count systems. Package options include a compact 8mm×8mm, 64-ball BGA and TQFP-64. The ADS129x BGA version is commercial-grade rated from 0°C to 70°C. The ADS129xR BGA and ADS129x TQFP versions are industrial-grade rated from -40°C to +85°C.

Applications

Medical instruments (ECG, EMG, and EEG)
Patient monitoring
Holter, event, stress, and vital signs monitoring, including ECG, AED, and telemedicine
Bispectral Index (BIS), Evoked Audio Potential (EAP), sleep monitors

Key features

8 low-noise PGAs and 8 high-resolution ADCs (ADS1298, ADS1298R)
Low power consumption: 0.75mW per channel
Input-referred noise: 4μVPP (150Hz BW, G = 6)
Input bias current: 200pA
Data rate: 250SPS to 32kSPS
CMRR: –115dB
Programmable gain: 1, 2, 3, 4, 6, 8, or 12
Supports systems compliant with AAMI EC11, EC13, IEC60601-1, IEC60601-2-27, and IEC60601-2-51
Unipolar or bipolar supply: AVDD = 2.7V to 5.25V, DVDD = 1.65V to 3.6V
Integrated right-leg drive amplifier, lead-off detection, Wilson central terminal, pace detection, and test signal
Integrated respiration impedance measurement
Digital pace detection
Built-in oscillator and reference
SPI-compatible serial interface
