TIDatasheet (PDF)

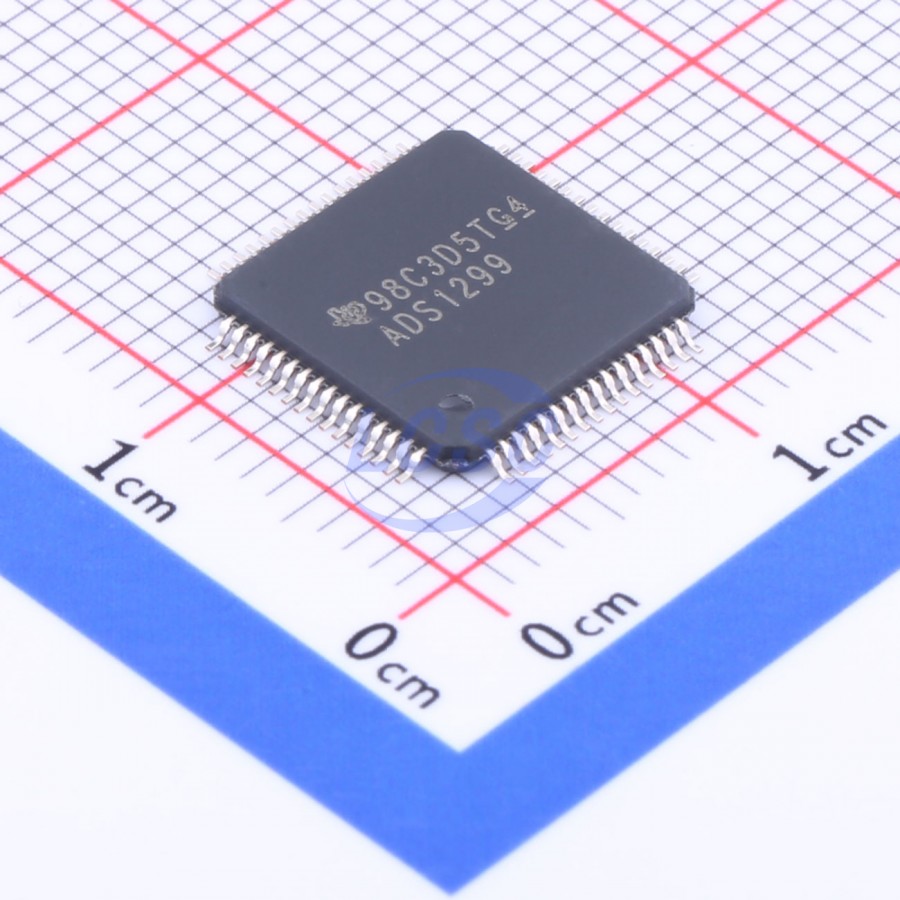

ADS1299IPAGR
SPI 4.75V~5.25V TQFP-64(10x10) Analog Front End (AFE) RoHS
TQFP-64(10x10)ROHS3 CompliantActive
Low-Noise, Multi-Channel, 24-Bit, Analog-to-Digital Converter for EEG and Biopotential Measurements
- Manufacturer
- TI
- Manufacturer part #
- ADS1299IPAGR
- Store part #
- C476817
- Package / case
- TQFP-64(10x10)
- Category
- Analog Front End (AFE)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,738 in stock
#C476817
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹7,265.32 | ₹7,265.32 |
| 30+ | ₹6,934.01 | ₹2,08,020.30 |
1 × ₹7,265.32
₹7,265.32
excl. GST
₹8,573.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
ADS1299IPAGR
₹7,265.32 for 1 + GST
Specifications
- Clock Frequency
- 2.048MHz;1.5MHz~2.048MHz
- number of channels
- 8
- Interface
- SPI
- Voltage Reference Value
- 4.5V
- Resolution(Bits)
- 24;16000Hz
- S/N Ratio
- 121dB
- Quiescent Current (Iq)
- 20uA
- Voltage - Supply
- 4.75V~5.25V
- Function
- Programmable gain;Simultaneous sampling control;Multiplexers;Internal reference source;Fault detection;Built-in temperature sensor
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.448 g
Overview
Applications
- Medical instrumentation including:
- Electroencephalogram (EEG) research
- Fetal electrocardiogram (ECG)
- Sleep monitoring
- Bispectral index (BIS)
- Evoked auditory potential (EAP)
Key features
- Up to eight low-noise PGAs and eight high-resolution synchronous sampling ADCs
- Input-referred noise: 1 μVP (70 Hz bandwidth)
- Input bias current: 300 pA
- Data rate: 250 SPS to 16 kSPS
- Common-mode rejection ratio: -110 dB
- Programmable gain: 1, 2, 4, 6, 8, 12, or 24
- Unipolar or bipolar supply:
- Analog: 4.75 V to 5.25 V
- Digital: 1.8 V to 3.6 V
- Integrated bias drive amplifier, lead-off detection, test signal
- Built-in oscillator
- Internal or external reference
- Flexible power-down and standby modes
- Pin-compatible with ADS129x
- SPI-compatible serial interface
- Operating temperature range: -40℃ to +85℃
