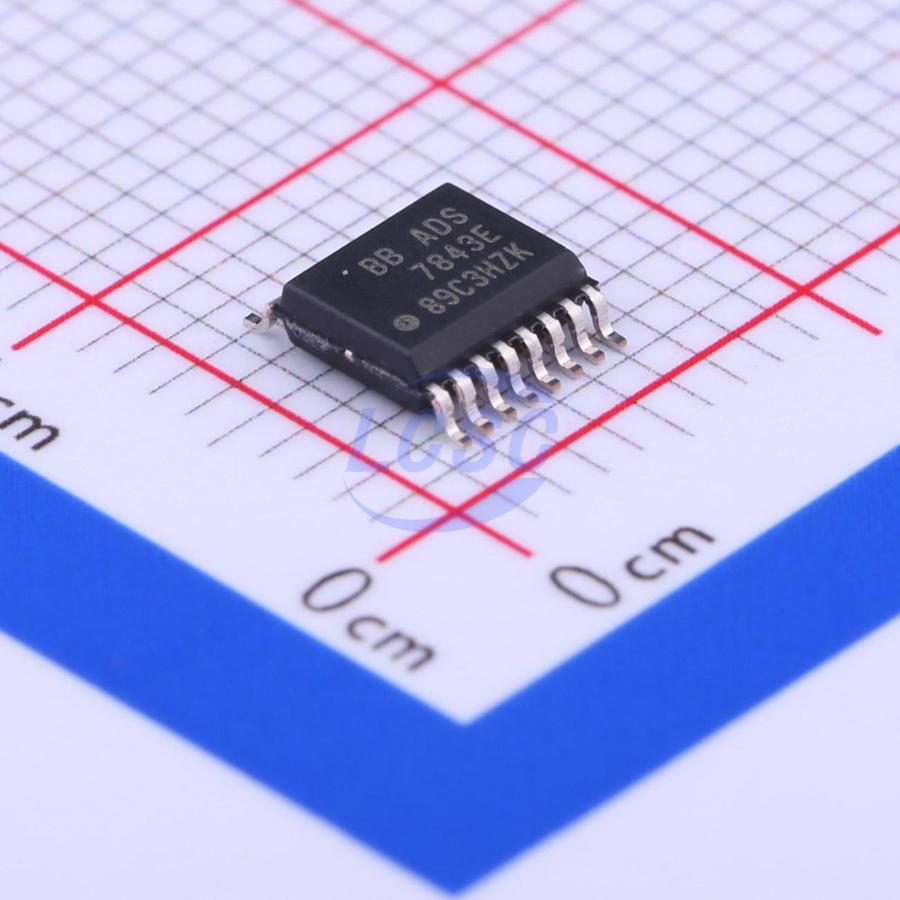

ADS7843E/2K5
2.7V~5V SSOP-16-150mil Touch Screen Controllers RoHS
TOUCH SCREEN CONTROLLER
- Manufacturer
- TI
- Manufacturer part #
- ADS7843E/2K5
- Store part #
- C364888
- Package / case
- SSOP-16-150mil
- Category
- Touch Screen Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,417 in stock
#C364888
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹329.56 | ₹329.56 |
| 10+ | ₹282.74 | ₹2,827.40 |
| 30+ | ₹253.25 | ₹7,597.50 |
| 100+ | ₹223.11 | ₹22,311.00 |
| 500+ | ₹209.67 | ₹1,04,835.00 |
| 1,000+ | ₹203.81 | ₹2,03,810.00 |
1 × ₹329.56
₹329.56
excl. GST
₹388.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADS7843E/2K5
₹329.56 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Touch Screen Type
- 4-Wire Resistive
- Voltage - Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.203 g
Overview
The ADS7843 is a 12-bit sampling Analog-to-Digital Converter (ADC) with a synchronous serial interface and low onresistance switches for driving touch screens. Typical power dissipation is 750μW at a 125kHz throughput rate and a +2.7V supply. The reference voltage (VREF) can be varied between 1V and +VCC, providing a corresponding input voltage range of 0V to VREF. The device includes a shutdown mode which reduces typical power dissipation to under 0.5μW. The ADS7843 is specified down to 2.7V operation. Low power, high speed, and onboard switches make the ADS7843 ideal for battery-operated systems such as personal digital assistants with resistive touch screens and other portable equipment. The ADS7843 is available in an SSOP-16 package and is specified over the -40°C to +85°C temperature range.
Applications
- PERSONAL DIGITAL ASSISTANTS
- PORTABLE INSTRUMENTS
- POINT-OF-SALES TERMINALS
- PAGERS
- TOUCH SCREEN MONITORS
Key features
- 4-WIRE TOUCH SCREEN INTERFACE
- RATIOMETRIC CONVERSION
- SINGLE SUPPLY: 2.7V to 5V
- UP TO 125kHz CONVERSION RATE
- SERIAL INTERFACE
- PROGRAMMABLE 8- OR 12-BIT RESOLUTION
- 2 AUXILIARY ANALOG INPUTS
- FULL POWER-DOWN CONTROL
