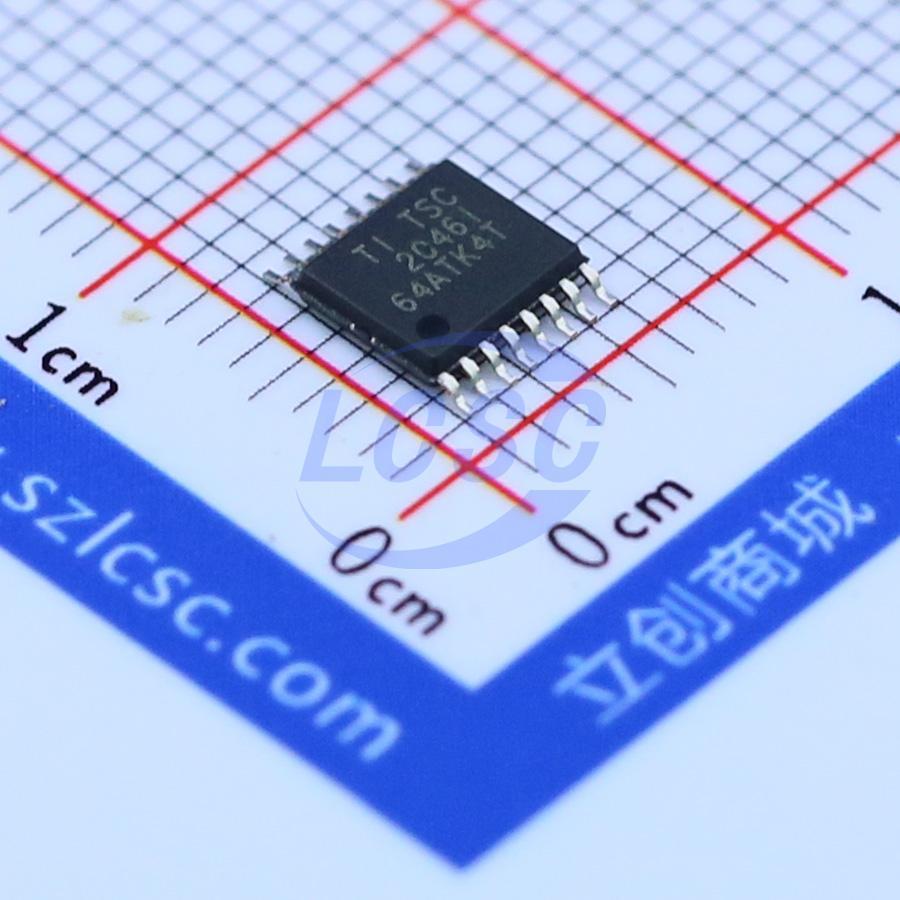

TSC2046IPWR
Built-in temperature sensor 2V~5.25V TSSOP-16 Touch Screen Controllers RoHS
Low-Voltage I/O TOUCH SCREEN CONTROLLER
- Manufacturer
- TI
- Manufacturer part #
- TSC2046IPWR
- Store part #
- C8954
- Package / case
- TSSOP-16
- Category
- Touch Screen Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,473 in stock
#C8954
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹195.21 | ₹195.21 |
| 10+ | ₹160.29 | ₹1,602.90 |
| 30+ | ₹141.12 | ₹4,233.60 |
| 100+ | ₹119.23 | ₹11,923.00 |
| 500+ | ₹99.51 | ₹49,755.00 |
| 1,000+ | ₹95.16 | ₹95,160.00 |
1 × ₹195.21
₹195.21
excl. GST
₹230.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSC2046IPWR
₹195.21 for 1 + GST
Specifications
- Features
- Built-in temperature sensor
- Operating Temperature
- -40℃~+85℃
- Touch Screen Type
- 4-Wire Resistive
- Voltage - Supply
- 2V~5.25V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
The TSC2046 is a next-generation version to the ADS7846 4-wire touch screen controller which supports a low-voltage I/O interface from 1.5V to 5.25V. The TSC2046 is 100% pin-compatible with the existing ADS7846, and will drop into the same socket. This allows for easy upgrade of current applications to the new version. The TSC2046 also has an on-chip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The reference can also be powered down when not used to conserve power. The internal reference operates down to 2.7V supply voltage, while monitoring the battery voltage from 0V to 6V. The low power consumption of < 0.75mW typ at 2.7V (reference off), high-speed (up to 125kHz sample rate), and on-chip drivers make the TSC2046 an ideal choice for battery-operated systems such as personal digital assistants (PDAs) with resistive touch screens, pagers, cellular phones, and other portable equipment. The TSC2046 is available in TSSOP-16, QFN-16, and VFBGA-48 packages and is specified over the -40°C to +85°C temperature range.
Applications
- PERSONAL DIGITAL ASSISTANTS
- PORTABLE INSTRUMENTS
- POINT-OF-SALE TERMINALS
- PAGERS
- TOUCH SCREEN MONITORS
- CELLULAR PHONES
Key features
- SAME PINOUT AS ADS7846
- 2.2V TO 5.25V OPERATION
- 1.5V TO 5.25V DIGITAL I/O
- INTERNAL 2.5V REFERENCE
- DIRECT BATTERY MEASUREMENT (0V TO 6V)
- ON-CHIP TEMPERATURE MEASUREMENT
- TOUCH-PRESSURE MEASUREMENT
- QSPI and SPI 3-WIRE INTERFACE
- AUTO POWER-DOWN
- AVAILABLE IN TSSOP-16, QFN-16, AND VFBGA-48 PACKAGES
