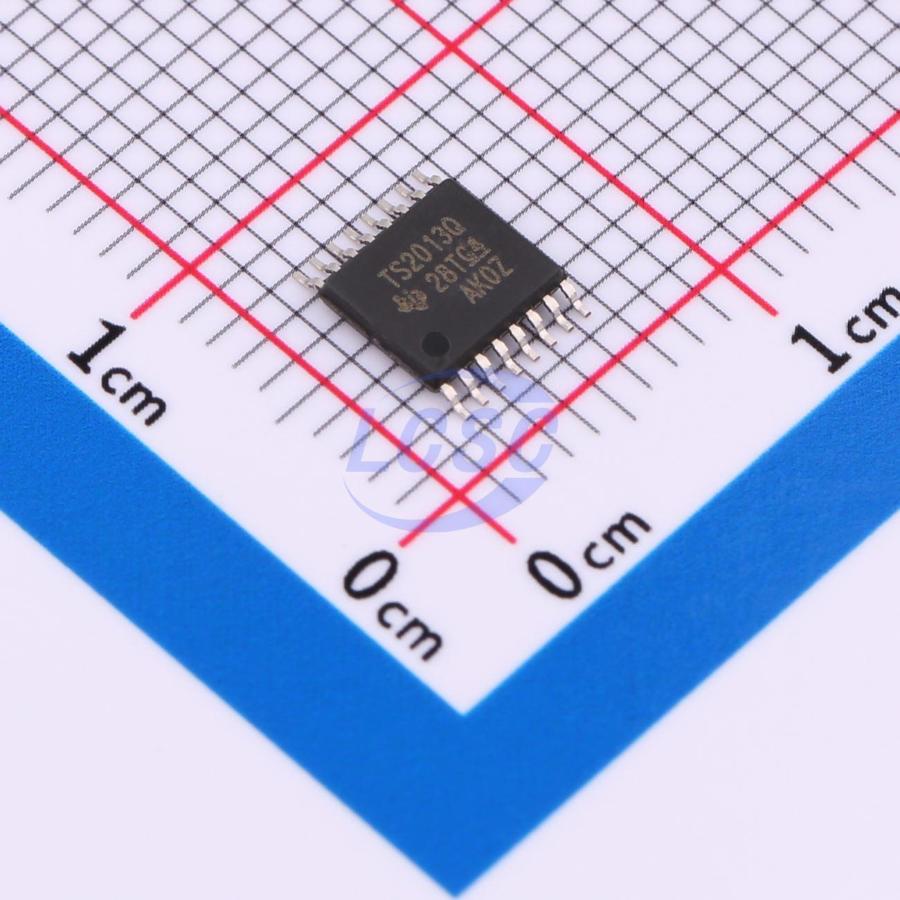

TSC2013QPWRQ1

The TSC2013-Q1 device is an ultra-low-power dual touchscreen controller designed for use with power-sensitive, low-cost touch displays in automotive infotainment and navigation systems. It features a complete ultra-low-power 12-bit analog-to-digital converter (ADC) resistive touchscreen converter, including drivers and control logic for measuring touch pressure. The TSC2013-Q1 device enables pinch-to-zoom and rotation functions through a standard four-wire interface. For all three defined modes (standard, fast, and high-speed), the device supports the I²C serial bus and data transfer protocol. The ADC within the 10- or 12-bit range can be easily programmed to customize the system and user experience.

Applications

• Automotive infotainment displays
• Automotive navigation systems
• Industrial HMI
• Medical devices
• Consumer portable electronics

Key features

• Qualified for automotive applications with the following AEC-Q100 results: Device Temperature Grade 1: -40°C to 125°C operation; Human Body Model (HBM) ESD Classification Level 2; Charged Device Model (CDM) ESD Classification Level C4B
• 4-wire touchscreen interface, ratiometric
• 1.6V to 3.6V single supply: I/OVDD 1.2V to 3.6V; SNSVDD: 1.6V to 3.6V
• Reduced bus activity via pre-filtering
• High-speed I²C compatible interface
• On-screen touch internal detection
• Register-based programmable: 10-bit or 12-bit resolution, sample rate, system timing
• Touch pressure measurement
• Automatic power-down control
• Low power consumption:
• 430μA at 1.8V, 50SSPS
• 320μA at 1.6V, 50SSPS
• 58μA at 1.6V, 8.2kSPS (device sample rate)
