Wuxi I-core ElecDatasheet (PDF)

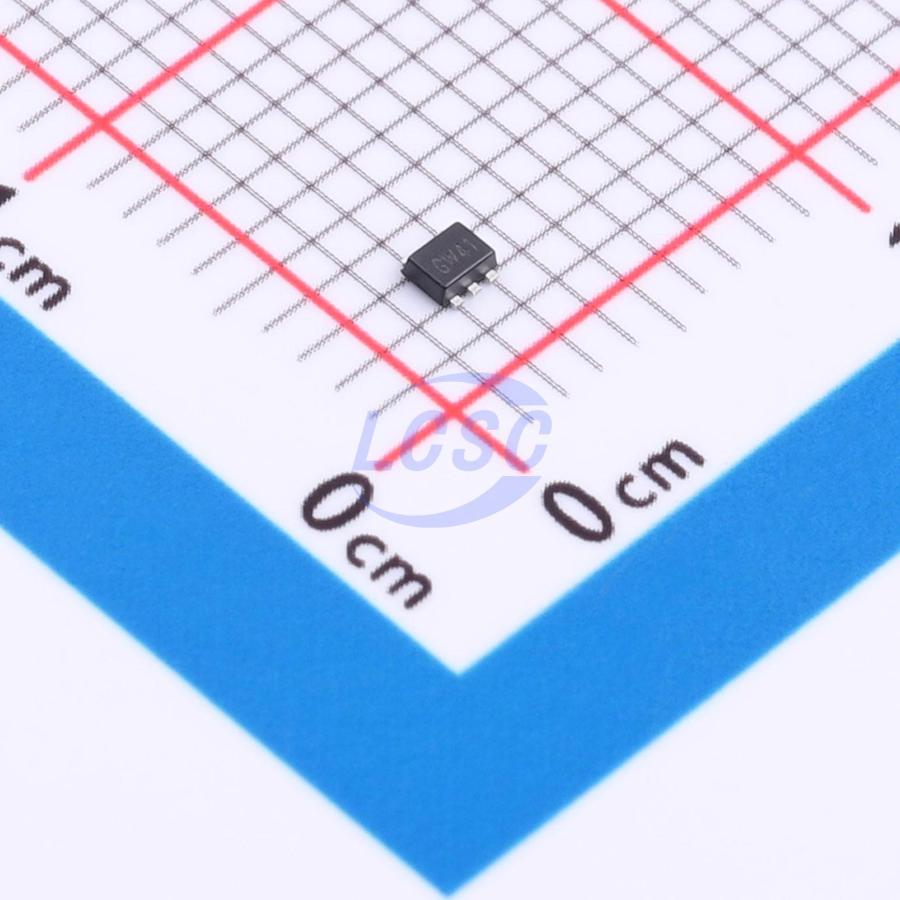

AiP3201BGG553.TR
Rail-to-rail input 1mV 1pA 1 SOT-553 Linear Comparators
SOT-553RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP3201BGG553.TR
- Store part #
- C52994641
- Package / case
- SOT-553
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C52994641
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.90 | ₹149.50 |
| 50+ | ₹23.36 | ₹1,168.00 |
| 150+ | ₹20.56 | ₹3,084.00 |
| 500+ | ₹17.07 | ₹8,535.00 |
| 3,000+ | ₹15.52 | ₹46,560.00 |
| 6,000+ | ₹14.58 | ₹87,480.00 |
5 × ₹29.90
₹149.50
excl. GST
₹176.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP3201BGG553.TR
₹149.50 for 5 + GST
Specifications
- Input Hysteresis Voltage (Vhys)
- 1mV
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-rail input
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 1pA
- Number of Channels
- 1
- Propagation Delay Time
- 50ns
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (188 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
AiP3201, AiP3201B, AiP3202, and AiP3204 are comparator circuits available in single-channel, dual-channel, and quad-channel configurations respectively. They feature fast response, low power consumption, rail-to-rail input, low offset voltage, and high output drive current, making them suitable for detection equipment, test and measurement, and high-speed sampling systems.
Key features
- Typical propagation delay: 50ns
- Input common-mode voltage range: -0.2V ~ VCC+0.2V
- Input offset voltage: 1mV
- Push-pull output
- Supply voltage range: +2.7V ~ 5.5V
- Operating temperature range: -40℃ ~ 125℃
- Package types: SOT23-5, SOT353, SOT553, SOP8, MSOP8, SOP14, TSSOP14
