LM393

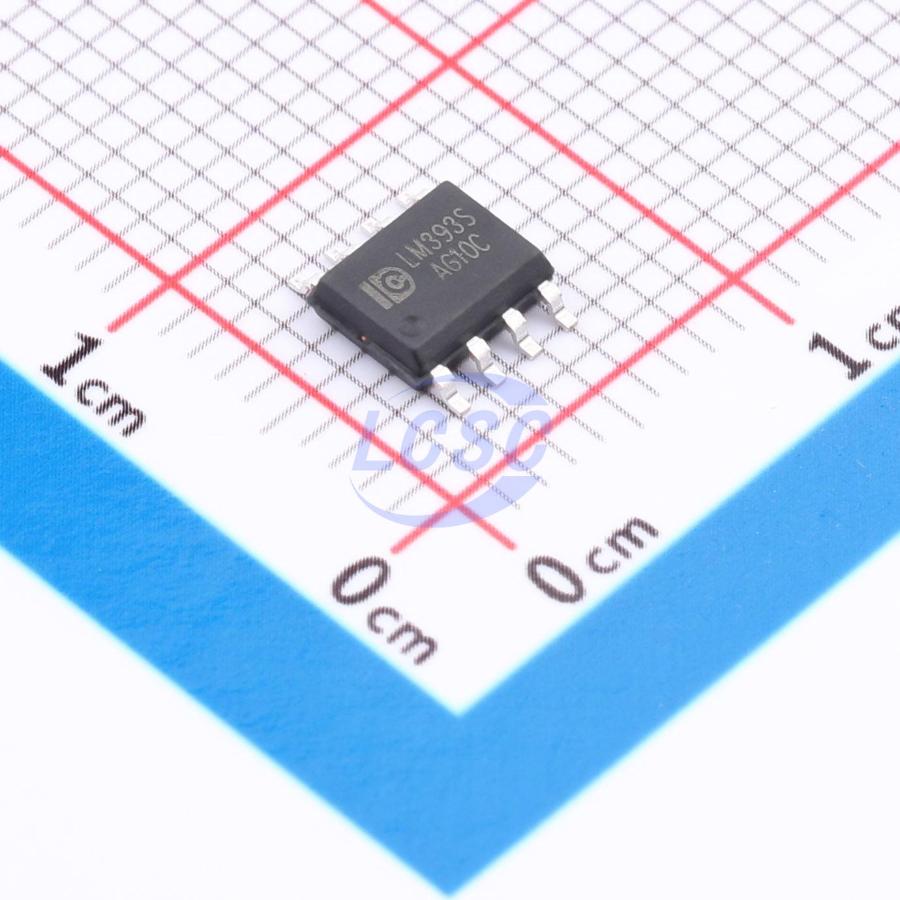

The LM393 is an IC comprising two independent, high-precision voltage comparators with low input offset voltage of 2.0mV maximum. Designed for wide voltage range and single-supply operation, it also supports dual-supply configurations while maintaining low supply current regardless of supply voltage. In single-supply mode, the common-mode input voltage range extends close to ground. The LM393 is directly compatible with TTL and CMOS, and is compatible with MOS logic when operating from a dual supply. Available in SOP-8 package, this high-performance dual voltage comparator features a wide supply voltage range, meeting diverse circuit application requirements without sacrificing board space.

Applications

• Limiter
• Pulse generator
• Square wave generator
• Delay generator
• Multi-frequency oscillator
• MOS timer
• ADC
• Wide-band VCO
• High-level digital logic gate circuit
• Two-stage high-frequency VCO
• Zero-crossing detector
• Comparator (with negative reference voltage)

Key features

• Common-mode input voltage range extends near ground
• Supply voltage range: single supply — 2.0V ~ 36V, dual supply — ±1.0V ~ ±18V
