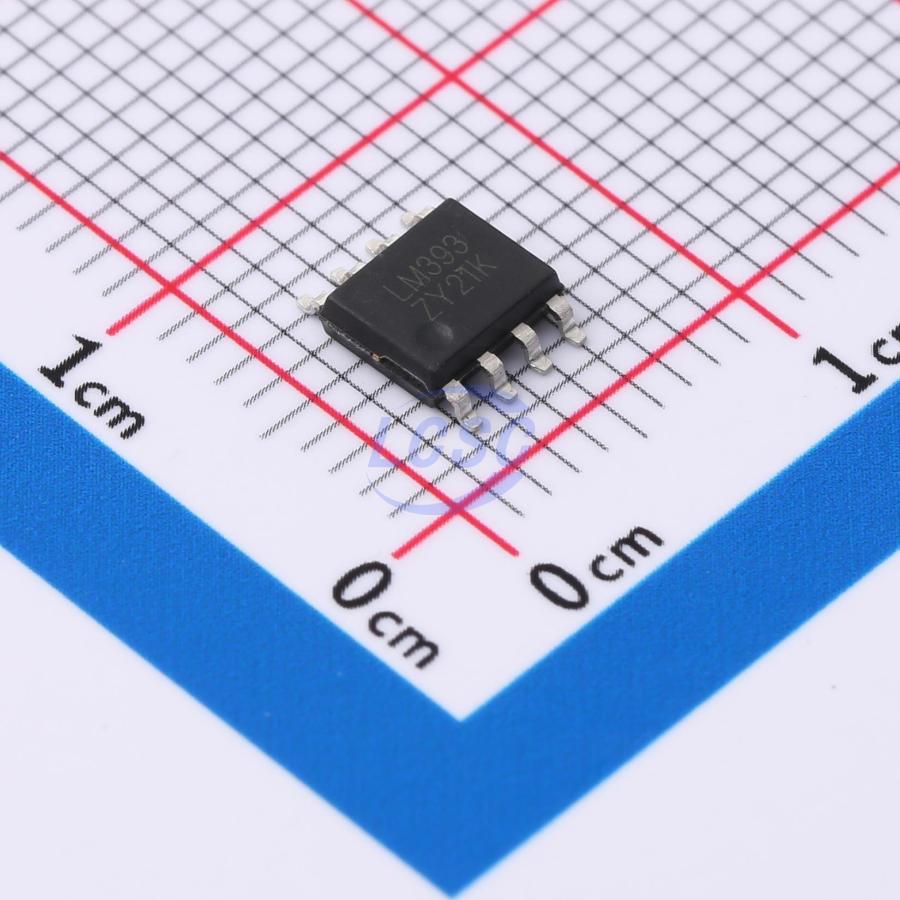

MSKSEMIDatasheet (PDF)
LM393
5mV 250nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Dual voltage comparator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM393
- Store part #
- C5252905
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
87,590 in stock
#C5252905
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.36 | ₹53.60 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.78 | ₹1,134.00 |
| 3,000+ | ₹3.11 | ₹9,330.00 |
| 6,000+ | ₹2.79 | ₹16,740.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
10 × ₹5.36
₹53.60
excl. GST
₹63.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM393
₹53.60 for 10 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- -16V~16V
- Output Type
- Open-drain
- Vos - Input Offset Voltage
- 5mV
- Quiescent Current
- 2.5mA
- Ib - Input Bias Current
- 250nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.166 g
Overview
LM393 is a dual voltage comparator with open-drain output, supporting single or dual supply operation. It features excellent temperature stability and output short-circuit protection. It can be powered directly from a standard 5V supply in digital systems without requiring an additional power source.
Applications
- Voltage discriminator circuit
- Voltage converter circuit
Key features
- Single supply voltage range: 2V~32V
- Low output saturation voltage: typical 0.1V @ I₀L = 4mA
- Low power consumption: typical 0.6mA @ VCC = 5V
- Low input offset voltage: typical ±1mV
- Dual supply voltage range: ±16V
- Differential input voltage range: ±VCC
- Open-drain output
- Package: DIP8, SOP8
