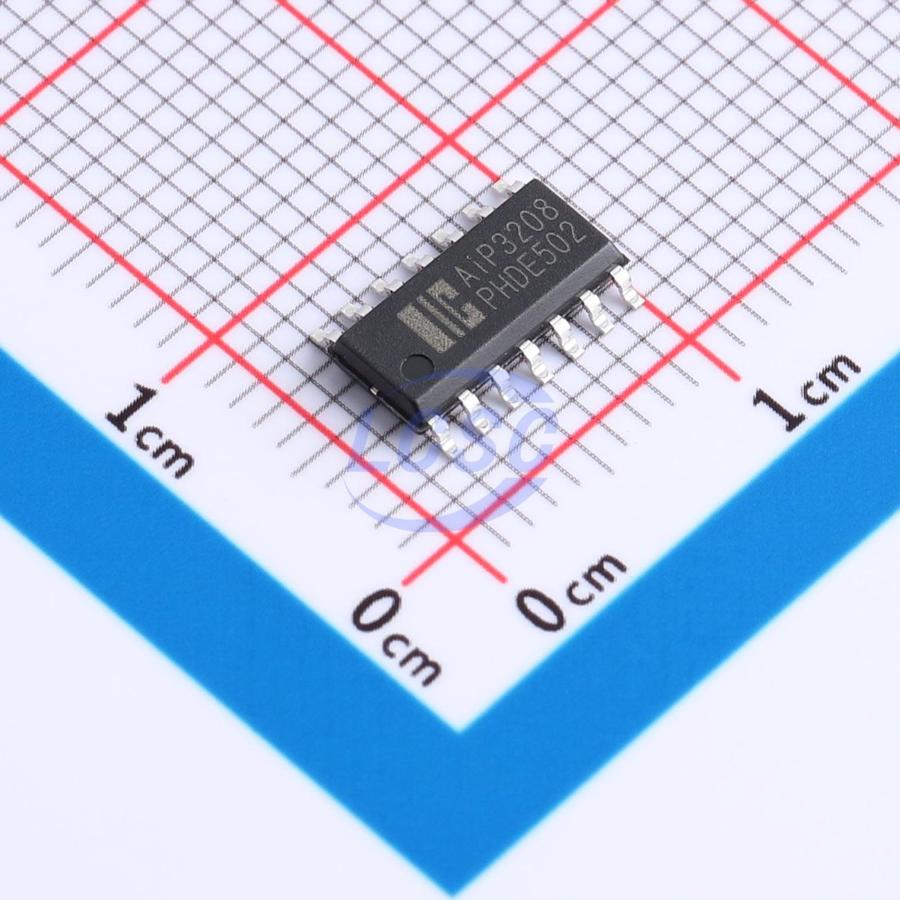

AiP3208SA14.TR
Rail-to-rail input 1mV 1pA 4 SOP-14 Linear Comparators
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP3208SA14.TR
- Store part #
- C52994644
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C52994644
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.36 | ₹211.80 |
| 50+ | ₹33.17 | ₹1,658.50 |
| 150+ | ₹29.23 | ₹4,384.50 |
| 500+ | ₹24.30 | ₹12,150.00 |
| 2,500+ | ₹22.12 | ₹55,300.00 |
| 4,000+ | ₹20.81 | ₹83,240.00 |
5 × ₹42.36
₹211.80
excl. GST
₹249.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP3208SA14.TR
₹211.80 for 5 + GST
Specifications
- Input Hysteresis Voltage (Vhys)
- 1mV
- Output Type
- Open Drain
- Rail to Rail
- Rail-to-rail input
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 1pA
- Quiescent Current
- 170uA
- Number of Channels
- 4
- Propagation Delay Time
- 66ns
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.295 g
Overview
AiP3205, AiP3205B, AiP3206, and AiP3208 are single-channel, dual-channel, and quad-channel open-drain output comparator ICs featuring fast response, low power consumption, rail-to-rail input, low offset voltage, and high output drive current. This comparator series offers internal hysteresis, low propagation delay, and low power consumption. The rail-to-rail input voltage range and low-voltage single-supply operation make them ideal for portable devices. Internal hysteresis is implemented to prevent oscillation caused by noise or parasitic feedback. A pull-up resistor is required at the output.
Applications
- Detection Equipment
- Test and Measurement
- High-Speed Sampling Systems
Key features
- Low propagation delay: 50ns (typical)
- Input common-mode range: -0.2V ~ VCC + 0.2V
- Low input offset voltage: 1mV
- Open-drain output
- Supply voltage range: +2.7V ~ 5.5V
- Industrial temperature range: -40℃ ~ 125℃
- Package: AiP3205 in SOT23-5/SOT353; AiP3205B in SOT23-5; AiP3206 in SOP8/MSOP8; AiP3208 in SOP14/TSSOP14
