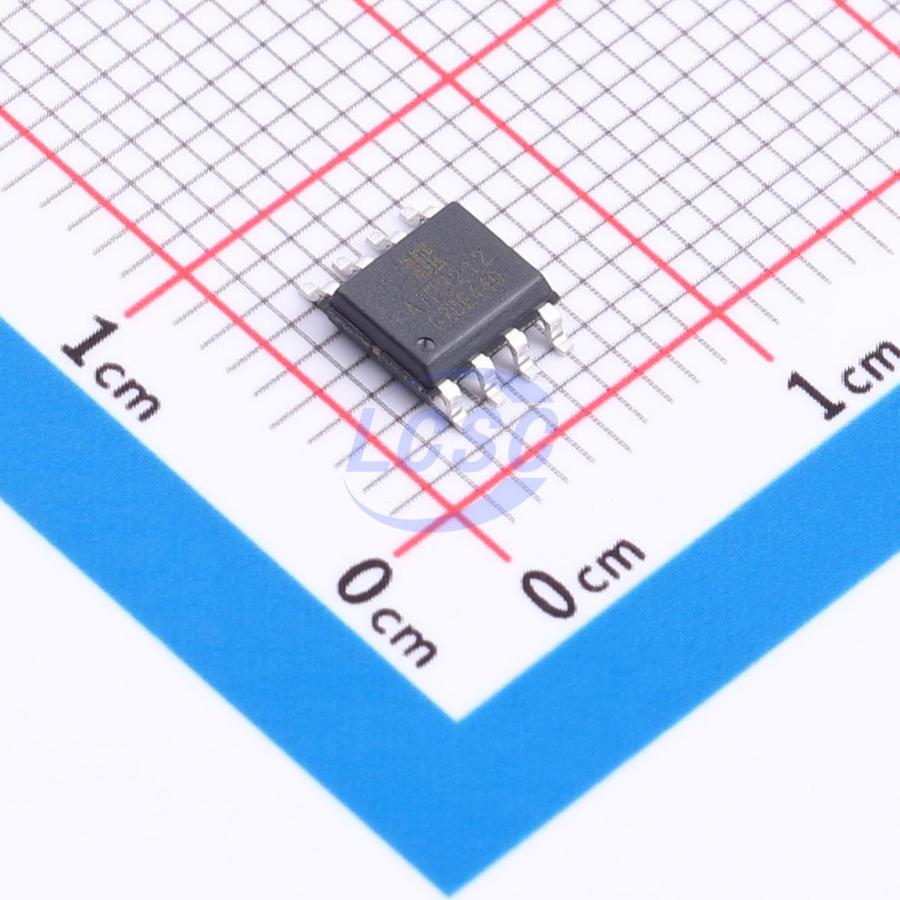

AiP3212SA8.TR
Rail-to-rail input 3mV 5pA 2 SOP-8 Linear Comparators
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP3212SA8.TR
- Store part #
- C49274359
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C49274359
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.93 | ₹234.65 |
| 50+ | ₹37.07 | ₹1,853.50 |
| 150+ | ₹32.85 | ₹4,927.50 |
| 500+ | ₹27.57 | ₹13,785.00 |
| 2,500+ | ₹25.23 | ₹63,075.00 |
| 5,000+ | ₹23.83 | ₹1,19,150.00 |
5 × ₹46.93
₹234.65
excl. GST
₹276.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP3212SA8.TR
₹234.65 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-rail input
- Quiescent Current
- 1.4mA
- Propagation Delay Time
- 6.7ns
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Input Hysteresis Voltage (Vhys)
- 7.2mV
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Vos - Input Offset Voltage
- 3mV
- Ib - Input Bias Current
- 5pA
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 5.4uV/℃
- Input Offset Current(Ios)
- 5pA
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The AiP321X series are low-power, ultra-high-speed comparators with internal hysteresis. The series includes the AiP3211, AiP3212, and AiP3214 (single, dual, and quad comparators without shutdown control pins, respectively), the AiP3213 (single comparator with shutdown control pin), and the AiP3219 (dual comparator with shutdown control pin). These comparators support rail-to-rail inputs and push-pull outputs. The AiP3213 and AiP3219 feature a shutdown function: when the SHDNx pin is high, the comparator operates normally; when low, the comparator shuts down and the output is driven low. The supply voltage range is +2.5V to +5.5V. The comparators incorporate a built-in 7.2mV hysteresis voltage to effectively prevent oscillation caused by noise or parasitic feedback. Additional hysteresis and noise margin can be achieved by using external resistors.
Applications
- High-speed sampling circuits
- Peak detectors
- Zero-crossing detectors
- Window comparators
- Clock and data signal recovery
Key features
- Supply voltage range: 2.5V～5.5V
- Propagation delay: 6.7ns
- Single comparator quiescent current: 1.4mA
- Offset voltage: ≤10mV
- Internal hysteresis voltage: 7.2mV
- Rail-to-rail input
- Push-pull output
- Operating temperature range: -40℃～125℃
- Package options: AiP3211: SOT23-5/SOT353/SOP8; AiP3212: SOP8/MSOP8/TSSOP8/DFN8; AiP3213: SOT23-6/SOT363/SOP8; AiP3214: SOP14/TSSOP14; AiP3219: MSOP10
