Wuxi I-core ElecDatasheet (PDF)

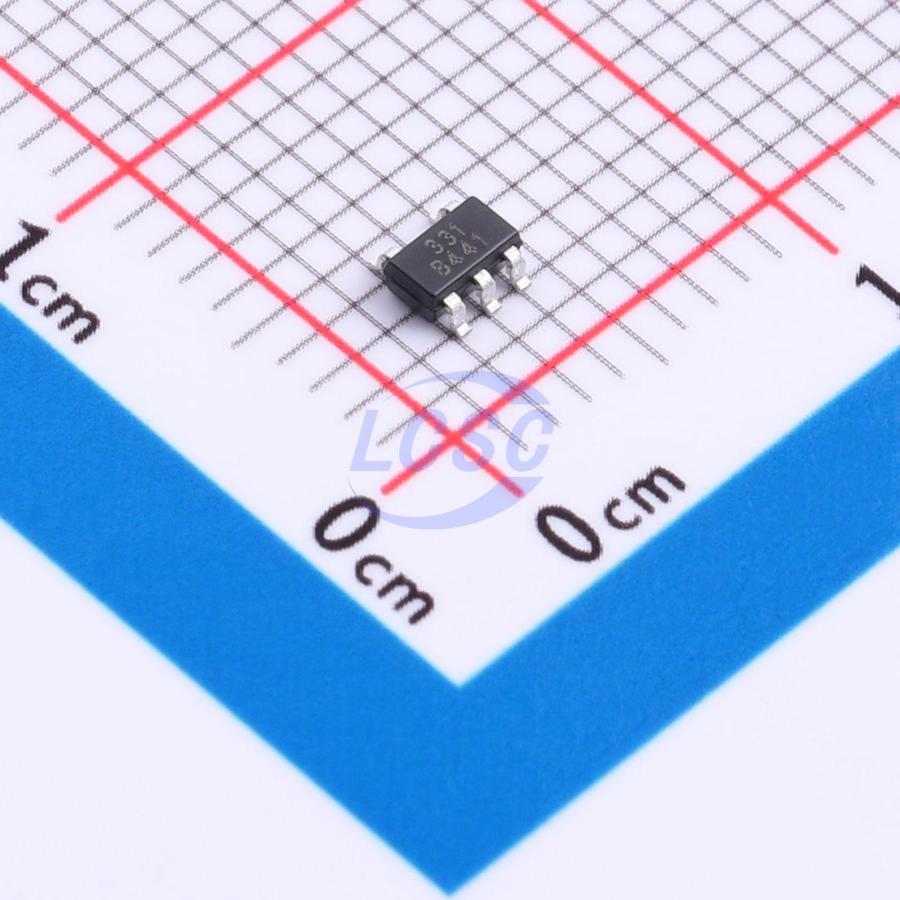

AiP331GB235.TR
2mV 25nA 1 SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP331GB235.TR
- Store part #
- C52994658
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C52994658
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.33 | ₹416.50 |
| 150+ | ₹7.20 | ₹1,080.00 |
| 500+ | ₹6.34 | ₹3,170.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.31 | ₹31,860.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP331GB235.TR
₹53.10 for 5 + GST
Specifications
- Output Type
- Open Collector
- Quiescent Current
- 450uA
- Output Mode
- TTL;MOS;CMOS
- Propagation Delay Time
- 1.3us
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- -18V~-1V;1V~18V
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (207 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
Single-channel differential comparator operable from a wide-voltage-range single supply or dual supplies. In dual-supply configuration, the voltage difference between the two supplies ranges from 2V to 18V, with VCC at least 1.5V above the input common-mode voltage. Quiescent current consumption is independent of supply voltage. The open-collector output can be wire-AND connected with other devices' open-collector outputs.
Applications
- Industrial
- Automotive
- Power supply monitoring
- Oscillator peak detector
- Logic level translation
Key features
- Supply voltage range: single supply 2V ~ 36V; dual supply ±1V ~ ±18V
- Low supply current, independent of supply voltage: 0.45mA (typical)
- Low input offset current: 5nA (typical)
- Low input bias current: 25nA (typical)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
- Package: SOT23-5
