Wuxi I-core ElecDatasheet (PDF)

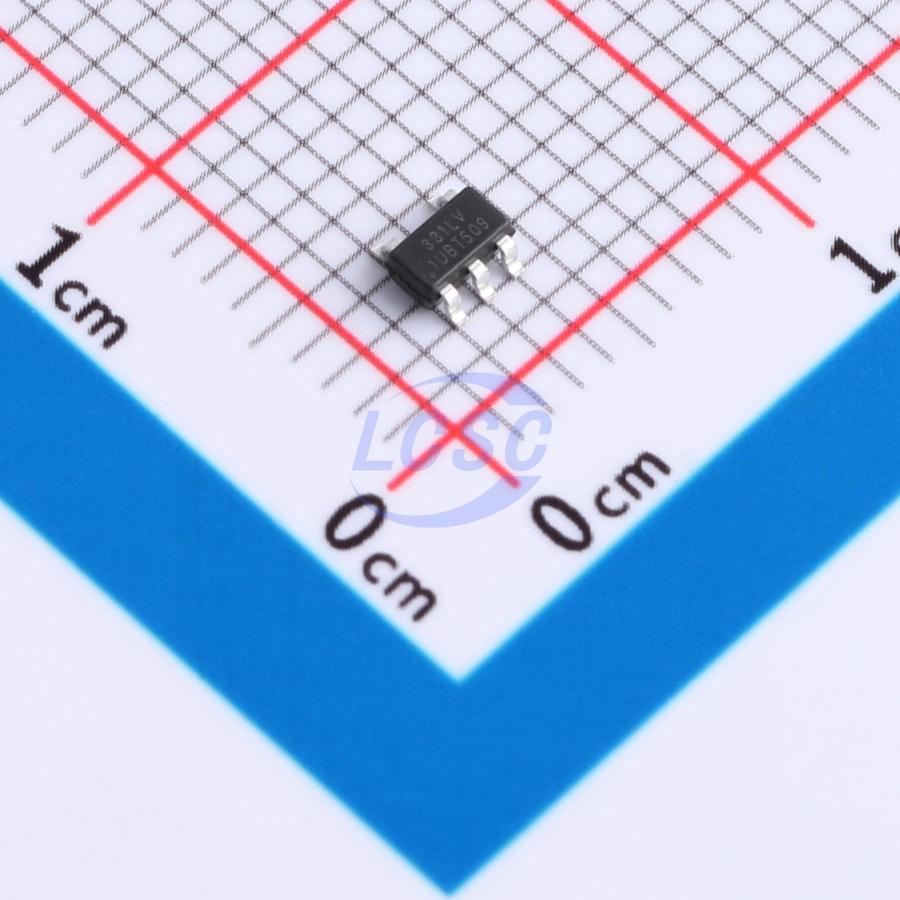

AiP331LVGB235.TR
Rail-to-rail input 1mV 5pA 1 SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP331LVGB235.TR
- Store part #
- C52994659
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C52994659
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.21 | ₹76.05 |
| 50+ | ₹12.09 | ₹604.50 |
| 150+ | ₹10.53 | ₹1,579.50 |
| 500+ | ₹9.35 | ₹4,675.00 |
| 3,000+ | ₹8.41 | ₹25,230.00 |
| 6,000+ | ₹7.95 | ₹47,700.00 |
5 × ₹15.21
₹76.05
excl. GST
₹89.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP331LVGB235.TR
₹76.05 for 5 + GST
Specifications
- Output Type
- Open Drain
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Rail to Rail
- Rail-to-rail input
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 5pA
- Number of Channels
- 1
- Propagation Delay Time
- 300ns
- Input Offset Current(Ios)
- 0.005nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (208 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
AiP331LV/AiP393LV is a CMOS standard-voltage comparator available in single and dual channel configurations. It features rail-to-rail input and open-drain output, with a propagation delay of 300ns (at 100mV overdrive) and a quiescent current of 60μA per comparator. Designed for portable consumer electronics applications requiring low-voltage operation, low power consumption, and space savings.
Applications
- Portable consumer electronics
Key features
- Operating voltage range: 2.5V ~ 5.5V
- Single-channel quiescent current: 60uA
- Rail-to-rail input operation
- Low output saturation voltage: 40mV
- Open-drain output
- Package options: AiP331LV in SOT23-5, AiP393LV in SOP8
