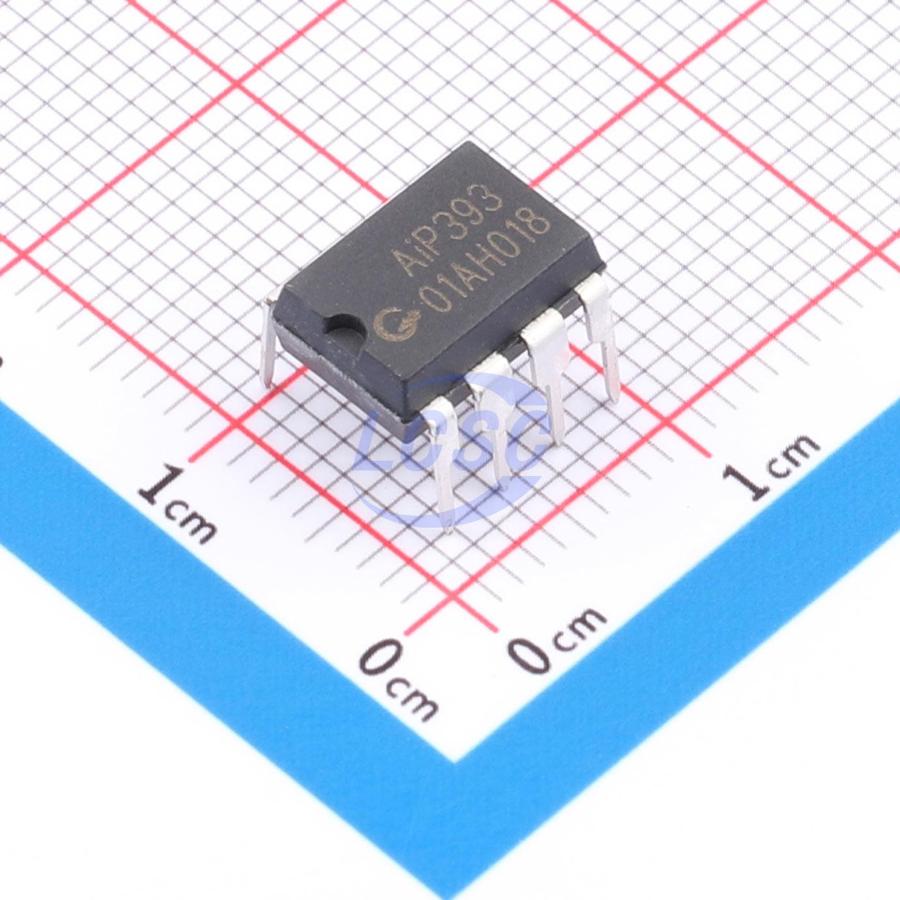

AiP393DA8.TB
2mV 25nA 2 DIP-8 Linear Comparators
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP393DA8.TB
- Store part #
- C52722520
- Package / case
- DIP-8
- Category
- Linear Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C52722520
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.83 | ₹74.15 |
| 50+ | ₹11.77 | ₹588.50 |
| 150+ | ₹10.25 | ₹1,537.50 |
| 500+ | ₹9.12 | ₹4,560.00 |
| 2,000+ | ₹8.20 | ₹16,400.00 |
| 4,000+ | ₹7.74 | ₹30,960.00 |
5 × ₹14.83
₹74.15
excl. GST
₹87.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AiP393DA8.TB
₹74.15 for 5 + GST
Specifications
- Dual Supply
- -18V~-1V;1V~18V
- Output Type
- Open Collector
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 800uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Response Time (tr)
- 1.3us
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The device integrates two independent comparators internally. The circuit operates from a wide-voltage-range single supply or supports dual-supply operation. When using dual supplies, the voltage difference between the two supplies ranges from 2V to 18V, and VCC must be at least 1.5V above the input common-mode voltage. Its quiescent current consumption is independent of the supply voltage. The output can be connected to the open-collector outputs of other devices to implement wired-AND logic.
Applications
- Industrial systems
- Automotive systems
- Power supply monitoring
- Oscillator peak detector
- Logic level translation
Key features
- Supply voltage range: Single supply 2V ~ 36V; Dual supply ±1V ~ ±18V
- Low supply current, independent of supply voltage: 0.8mA (typical)
- Low input offset current: 5nA (typical)
- Low input bias current: 25nA (typical)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground potential
- Differential input voltage range equal to maximum rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS logic levels
- Package options: AiP293 in SOP8/DIP8; AiP393 in SOP8/DIP8/MSOP8
