Wuxi I-core ElecDatasheet (PDF)

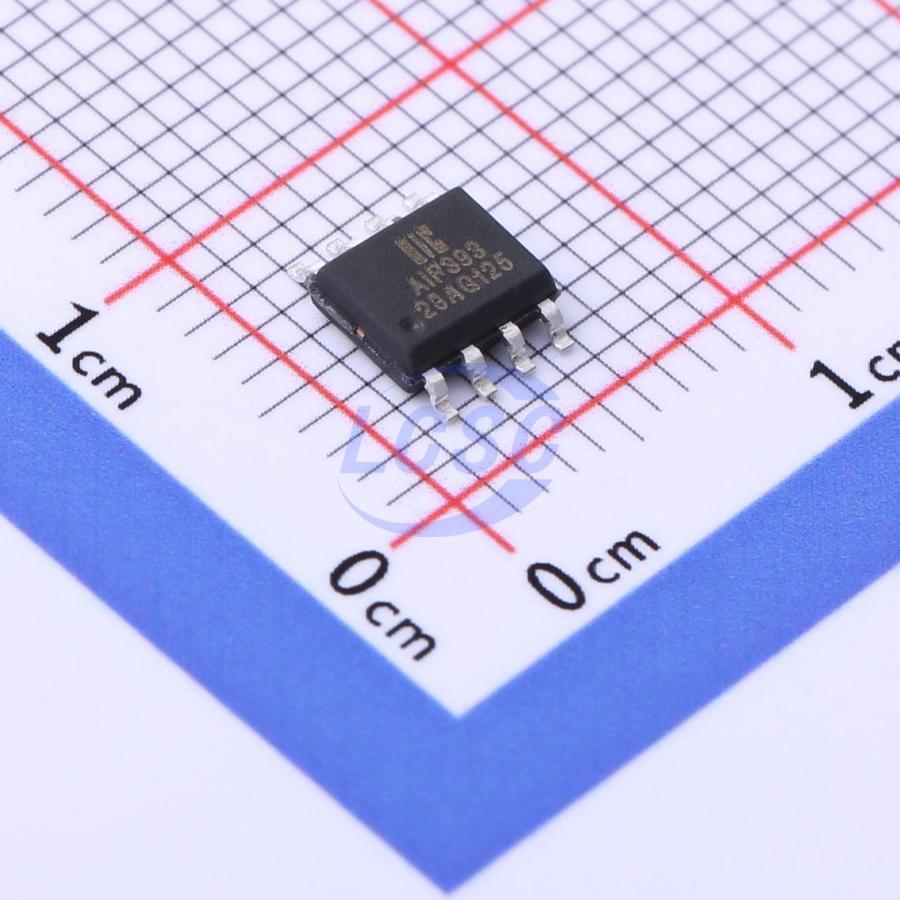

AIP393SA8.TR
2mV 25nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Dual-channel differential comparator
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP393SA8.TR
- Store part #
- C2943312
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,355 in stock
#C2943312
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.94 | ₹54.70 |
| 50+ | ₹8.65 | ₹432.50 |
| 150+ | ₹7.50 | ₹1,125.00 |
| 500+ | ₹6.64 | ₹3,320.00 |
| 2,500+ | ₹5.95 | ₹14,875.00 |
| 4,000+ | ₹5.61 | ₹22,440.00 |
5 × ₹10.94
₹54.70
excl. GST
₹64.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AIP393SA8.TR
₹54.70 for 5 + GST
Specifications
- Output Type
- Open Collector
- Quiescent Current
- 800uA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 1.3us
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 1V~15V;-15V~-1V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~30V
- Response Time (tr)
- 1.3us;0.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The AiP293/AiP393 consists of two independent comparators that can operate from a single supply over a wide voltage range or from dual supplies. The only requirement is that the voltage difference between the two supplies falls within 2V to 30V, and VCC is at least 1.5V above the input common-mode voltage. Quiescent current consumption is independent of supply voltage. The open-collector outputs can be wire-AND connected with other open-collector outputs.
Applications
- Industrial
- Automotive
- Power monitoring
- Oscillator peak detector
- Logic level translation
Key features
- Wide supply voltage range: single supply 2V~30V, dual supply ±1V~±15V
- Low supply current independent of supply voltage: 0.8mA (typical)
- Low input offset current: 5nA (typical)
- Low input bias current: 25nA (typical)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage: ±30V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
