Wuxi I-core ElecDatasheet (PDF)

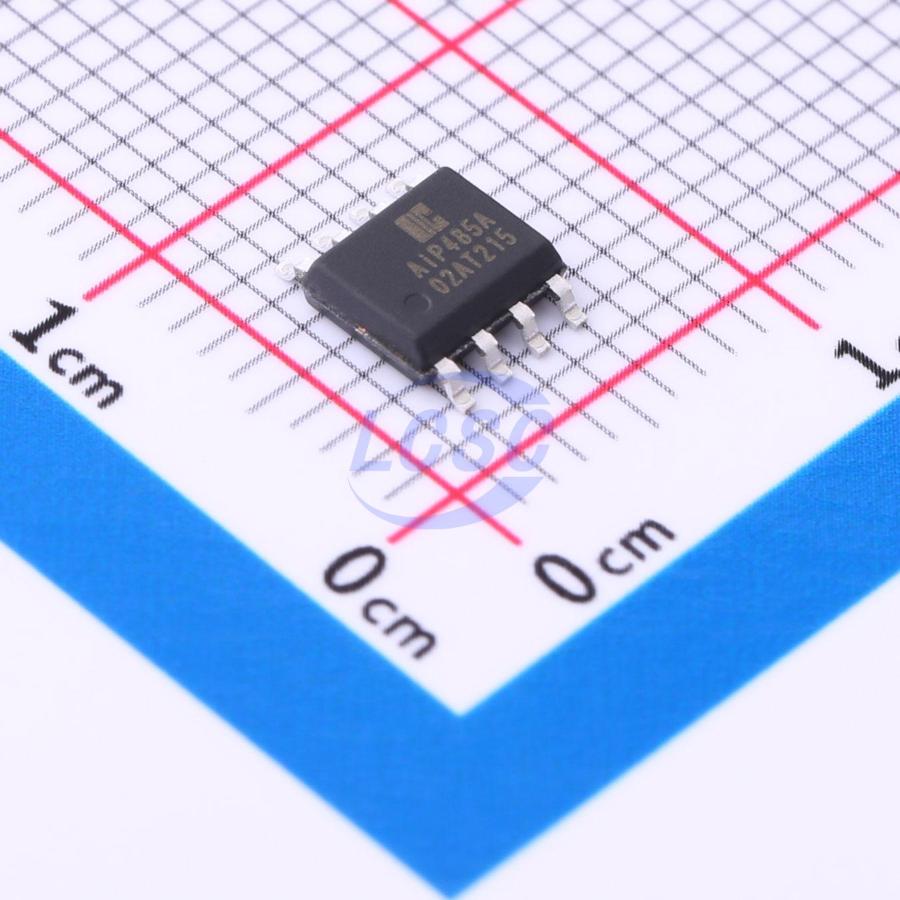

AiP485ASA8.TR
3V~5.5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP485ASA8.TR
- Store part #
- C5354844
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C5354844
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.34 | ₹266.70 |
| 50+ | ₹40.99 | ₹2,049.50 |
| 150+ | ₹35.79 | ₹5,368.50 |
| 500+ | ₹29.28 | ₹14,640.00 |
| 2,500+ | ₹26.24 | ₹65,600.00 |
| 4,000+ | ₹24.50 | ₹98,000.00 |
5 × ₹53.34
₹266.70
excl. GST
₹314.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP485ASA8.TR
₹266.70 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Hot-swap protection;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.9mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
AiP485A is a 5V-powered, half-duplex RS-485 bus transceiver integrating one driver and one receiver. The device features fail-safe protection and supports data rates up to 10Mbps. Designed for low power consumption and high reliability, it provides comprehensive bus protection.
Key features
- Supply voltage range: 3V~5.5V
- Data rate: 10Mbps
- Up to 256 nodes per bus (1/8 unit load)
- Bus pins with ±15kV HBM protection
- Hot-swap capable; driver and receiver outputs remain high-impedance during power-up/power-down
- Receiver with full fail-safe protection (open circuit, short circuit, and termination failure)
- Driver with overvoltage and overcurrent protection
- Operating temperature range: -40~+85℃
- Available packages: DIP8, SOP8, MSOP8
