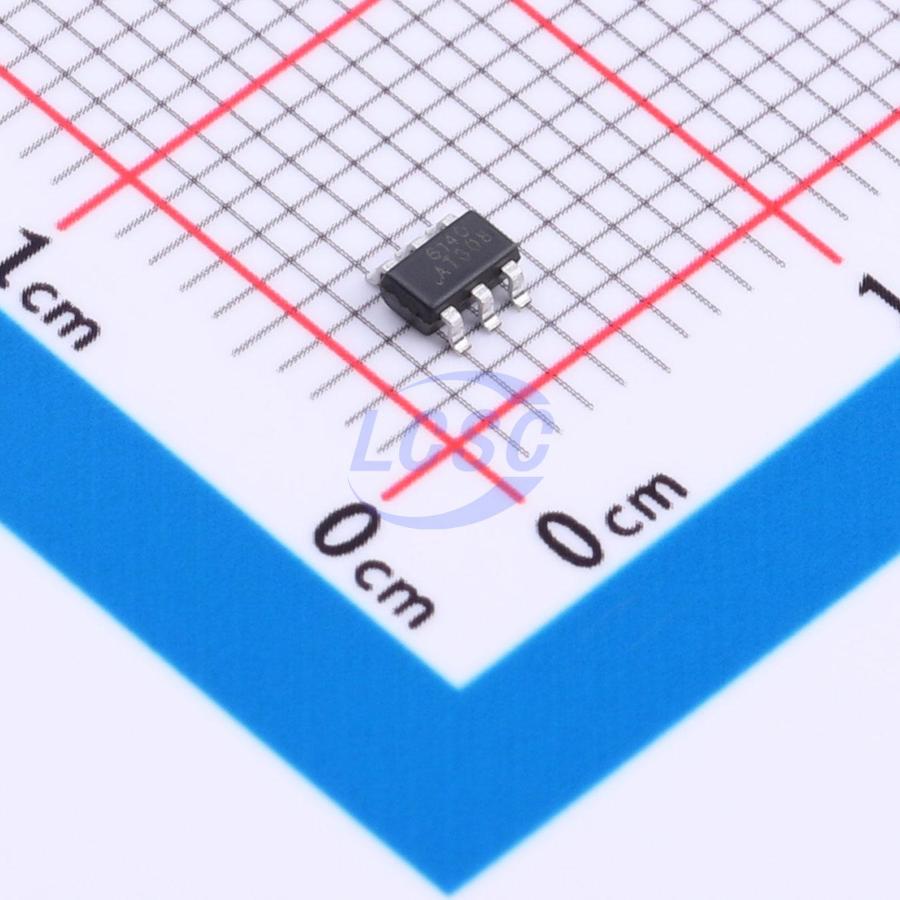

AiP6140GB236.TR
5V~20V SOT-23-6 Gate Drivers
SOT-23-6RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP6140GB236.TR
- Store part #
- C52260199
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C52260199
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.64 | ₹58.20 |
| 50+ | ₹9.17 | ₹458.50 |
| 150+ | ₹7.92 | ₹1,188.00 |
| 500+ | ₹7.00 | ₹3,500.00 |
| 3,000+ | ₹6.26 | ₹18,780.00 |
| 6,000+ | ₹5.89 | ₹35,340.00 |
5 × ₹11.64
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP6140GB236.TR
₹58.20 for 5 + GST
Specifications
- Low Level Delay Time
- 1us
- High Level Delay Time
- 1us
- Quiescent Current
- 3.3mA
- Voltage - Supply
- 5V~20V
- Driven Configuration
- Low Side;High Side
- Rise Time
- 100ns
- Fall Time
- 100ns
- Features
- Enable shutdown
- Load Type
- IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
This driver circuit can replace push-pull circuits built from discrete components to directly drive IGBTs. Optional features include: MCU-controlled IGBT input voltage limiting for reduced losses; MCU-controlled optional single-channel Darlington driver; and selectable input/output polarity inversion.
Key features
- Low quiescent current: 3.5mA @ 18V
- Wide voltage range: 5V~20V
- Fast switching speed: <1us @ CL=10nF
- Direct IGBT drive capability
- Selectable input pull-up with inverted output
- Selectable input pull-down with non-inverted output
- Pull-up input selection: compatible with open-drain and TTL level signals
- Pull-down input selection: compatible with TTL level signals
- One optional Darlington driver output
- IGBT drive voltage clamping up to 12V maximum
- Package options: SOT23-5, SOT23-6, SOP8
