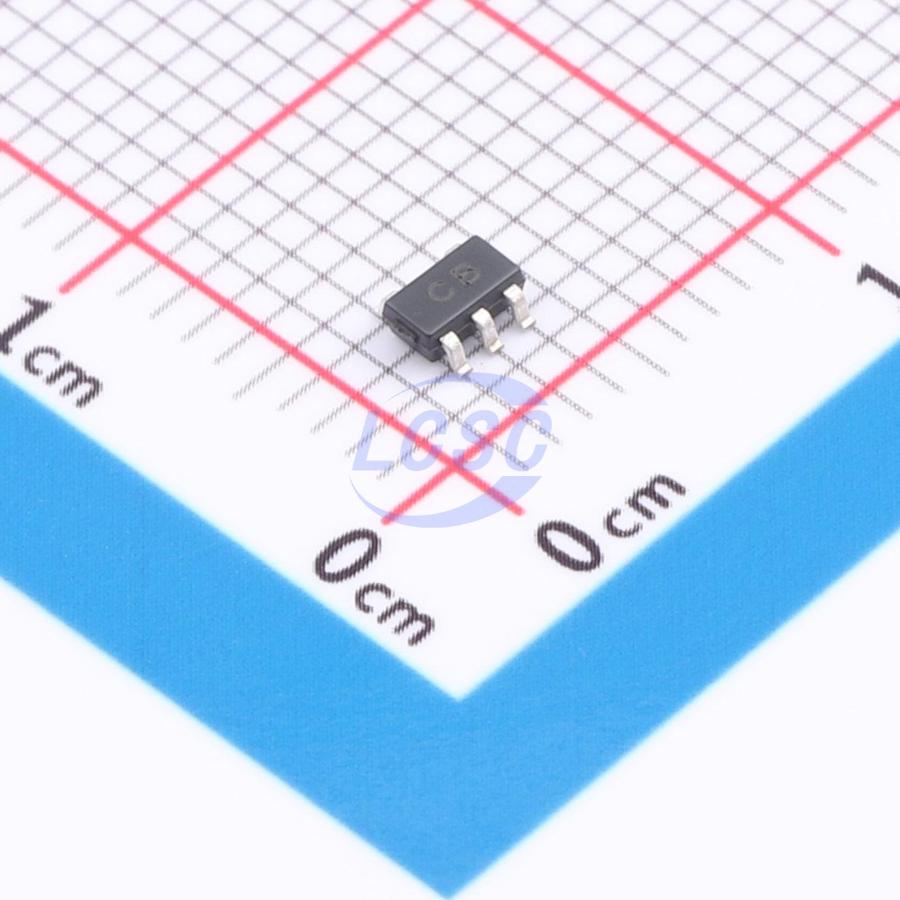

Wuxi I-core Elec

AiP74AHC1G04GB235.TR

2V~5.5V 4.5ns@5.5V,50pF 1uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74AHC1G04GB235.TR
Store part #: C22462460
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,800 in stock

#C22462460

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.07	₹60.35
50+	₹9.62	₹481.00
150+	₹8.39	₹1,258.50
500+	₹7.46	₹3,730.00
2,500+	₹6.73	₹16,825.00
5,000+	₹6.36	₹31,800.00

Quantity (min 5, multiples of 5)

5 × ₹12.07

₹60.35

excl. GST

₹71.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP74AHC1G04GB235.TR

₹60.35 for 5 + GST

Specifications

Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Propagation Delay: 4.5ns@5.5V,50pF
Output Logic Level - Low: 100mV;360mV
Input Logic Level - Low: 500mV;900mV;1.65V
Input Logic Level - High: 1.5V;2.1V;3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V;2.58V;3.94V
Quiescent Current(Iq): 1uA
Number of Channels: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

The AiP74AHC1G04 and AiP74AHCT1G04 are high-speed silicon-gate CMOS devices providing inverting buffer function. The AiP74AHC1G04 features CMOS input switching levels with a supply voltage range of 2V~5.5V. The AiP74AHCT1G04 features TTL input switching levels with a supply voltage range of 4.5V~5.5V.
