Wuxi I-core ElecDatasheet (PDF)

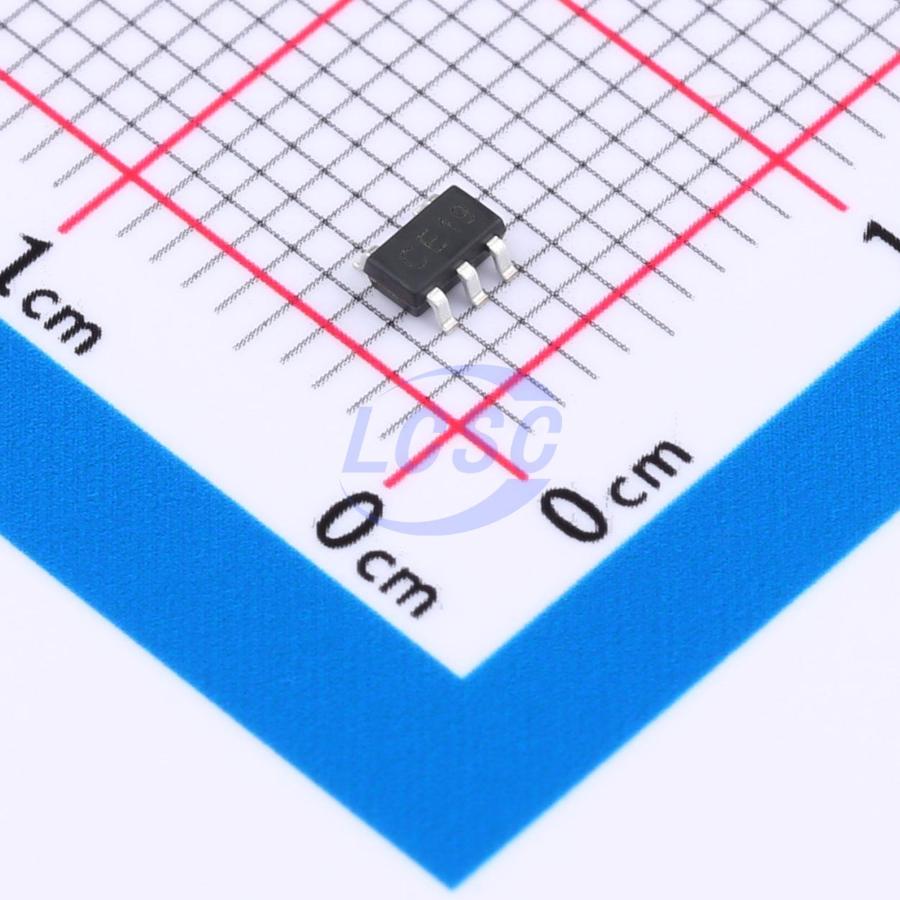

AIP74AHC1G14GB235.TR
Schmitt trigger 2V~5.5V 4.6ns@5V,50pF 1uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single-channel Schmitt inverter
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74AHC1G14GB235.TR
- Store part #
- C5358061
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C5358061
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.14 | ₹81.40 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.37 | ₹1,611.00 |
| 3,000+ | ₹4.68 | ₹14,040.00 |
| 6,000+ | ₹4.13 | ₹24,780.00 |
| 9,000+ | ₹3.85 | ₹34,650.00 |
10 × ₹8.14
₹81.40
excl. GST
₹96.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIP74AHC1G14GB235.TR
₹81.40 for 10 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 4.6ns@5V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 900mV;1.35V;1.65V
- Input Logic Level - High
- 2.2V;3.15V;3.85V
- Operating Temperature
- -40℃~+105℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.059 g
Overview
Applications
- Relaxation oscillator circuit
