Wuxi I-core Elec

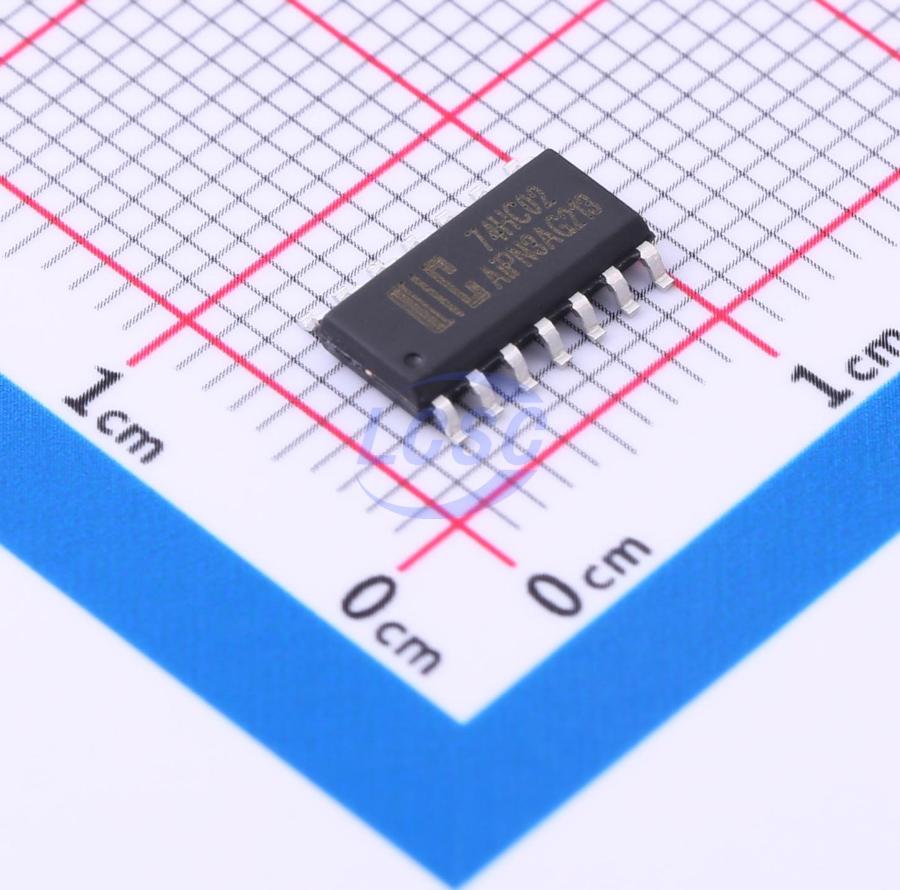

AiP74HC02SA14.TR

StandardCMOS 2V~6V 18ns@4.5V,50pF 2uA SOP-14 Gates and Inverters

SOP-14RoHSActive

Quad 2-input Nor Gate

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74HC02SA14.TR
Store part #: C5179751
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,375 in stock

#C5179751

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.56	₹92.80
50+	₹14.35	₹717.50
150+	₹12.25	₹1,837.50
500+	₹10.68	₹5,340.00
2,500+	₹9.41	₹23,525.00
4,000+	₹8.77	₹35,080.00

Quantity (min 5, multiples of 5)

5 × ₹18.56

₹92.80

excl. GST

₹109.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AiP74HC02SA14.TR

₹92.80 for 5 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74HC
Voltage - Supply: 2V~6V
Propagation Delay: 18ns@4.5V,50pF
Output Logic Level - Low: 100mV;260mV
Input Logic Level - High: 1.5V;3.15V;4.2V
Operating Temperature: -40℃~+105℃
Input Logic Level - Low: 500mV;1.35V;1.8V
Output Logic Level - High: 1.9V;4.4V;5.9V
Quiescent Current(Iq): 2uA
Current - Output High(IOH): 5.2mA
Number of Channels: 4;2
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.239 g

Overview

The AiP74HC/HCT02 is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Input levels: For AiP74HC02: CMOS level For AiP74HCT02: TTL level Specified from -40 ℃ to +105 ℃ Packaging information: DIP14/SOP14/TSSOP14
