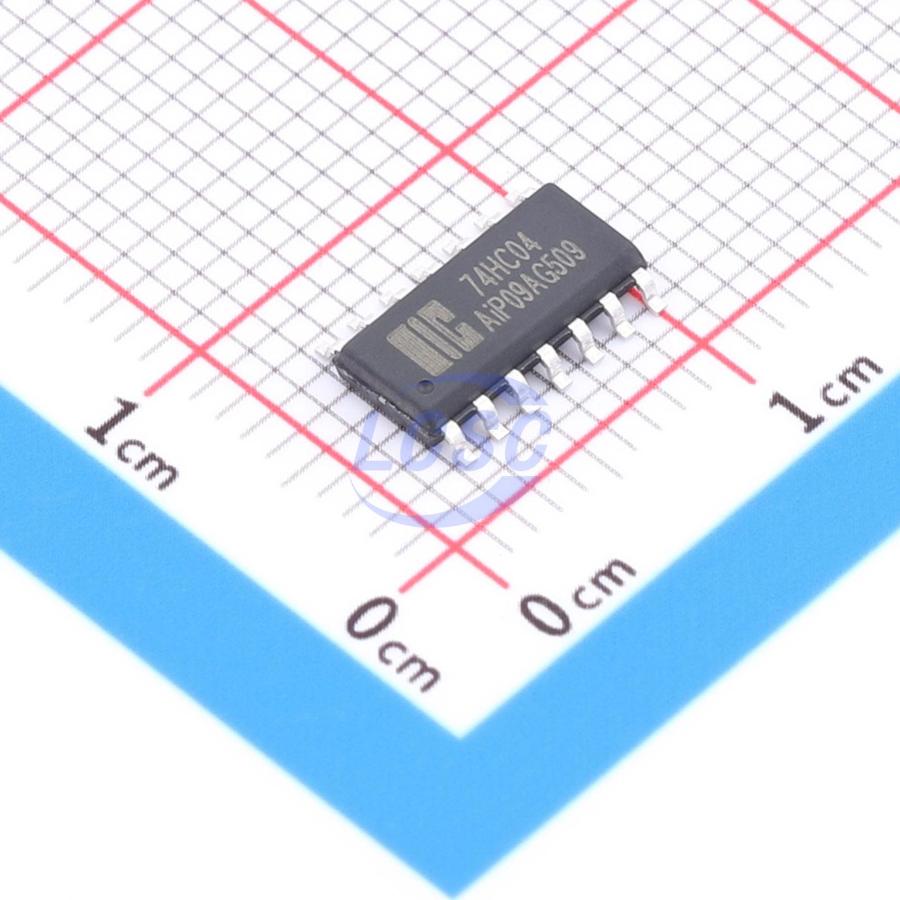

AiP74HC04SA14.TR
2V~6V 7ns@6V,15pF 2uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74HC04SA14.TR
- Store part #
- C51940056
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C51940056
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.60 | ₹83.00 |
| 50+ | ₹13.06 | ₹653.00 |
| 150+ | ₹11.29 | ₹1,693.50 |
| 500+ | ₹9.96 | ₹4,980.00 |
| 2,500+ | ₹8.89 | ₹22,225.00 |
| 4,000+ | ₹8.36 | ₹33,440.00 |
5 × ₹16.60
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP74HC04SA14.TR
₹83.00 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 7ns@6V,15pF
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.285 g
Overview
AiP74HC/HCT04 is a hex inverter. The input pins feature built-in clamping diodes, allowing the inputs to be interfaced to voltages higher than VCC through current-limiting resistors.
Key features
- Input levels: CMOS for AiP74HC04; TTL for AiP74HCT04
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP14/SOP14/TSSOP14
