Wuxi I-core ElecDatasheet (PDF)

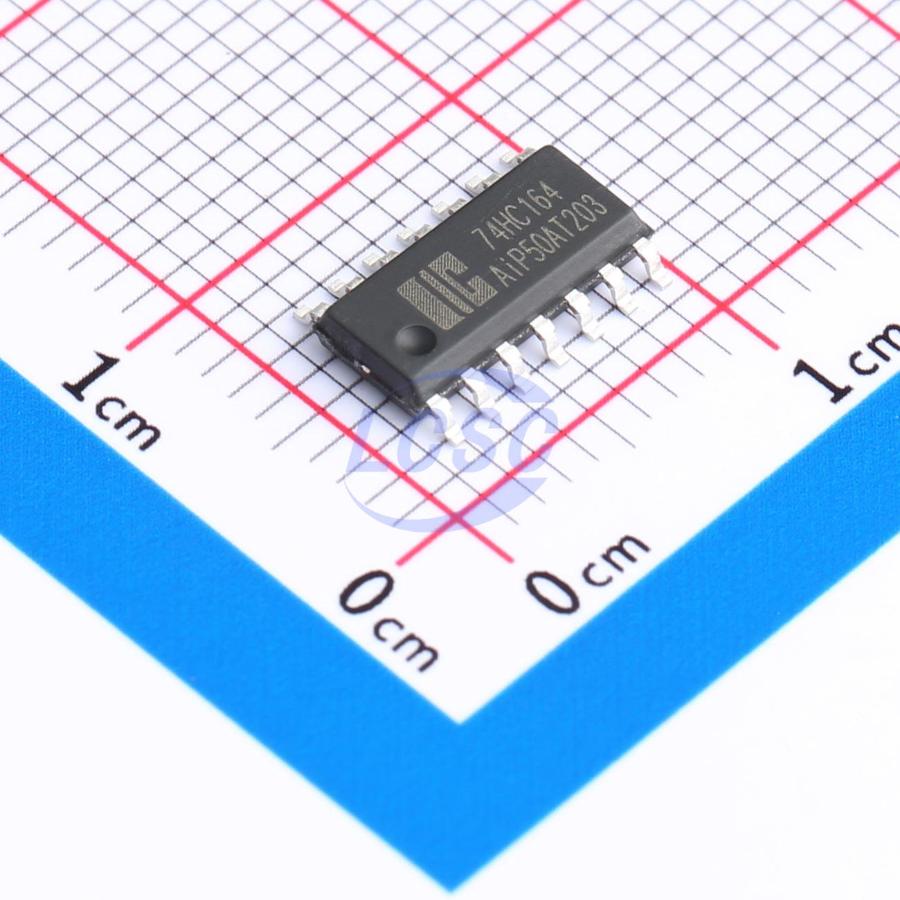

AIP74HC164SA14.TR
2V~6V 25mA 12ns@5V,15pF Serial-to-Parallel SOP-14 Shift Registers
SOP-14RoHSActive
8-bit Serial-in, Parallel-out Shift Register
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74HC164SA14.TR
- Store part #
- C3021450
- Package / case
- SOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,935 in stock
#C3021450
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.69 | ₹73.45 |
| 50+ | ₹11.36 | ₹568.00 |
| 150+ | ₹9.70 | ₹1,455.00 |
| 500+ | ₹8.44 | ₹4,220.00 |
| 2,500+ | ₹7.45 | ₹18,625.00 |
| 4,000+ | ₹6.95 | ₹27,800.00 |
5 × ₹14.69
₹73.45
excl. GST
₹86.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AIP74HC164SA14.TR
₹73.45 for 5 + GST
Specifications
- Operating temperature
- -40℃~+105℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Series
- 74HC
- Output Current
- 25mA
- Features
- Asynchronous clear function
- Propagation Delay
- 12ns@5V,15pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The AiP74HC/HCT164 is an 8-bit serial-in/parallel-out shift register. The device features two serial data inputs (DSA and DSB), eight parallel data outputs (Q0 to Q7). Data is entered serially through DSA or DSB and either input can be used as an active HIGH enable for data entry through the other input. Data is shifted on the LOW-to-HIGH transitions of the clock (CP) input. A LOW on the master reset input (MR) clears the register and forces all outputs LOW, independently of other inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels: For AiP74HC164: CMOS level For AiP74HCT164: TTL level
- Gated serial data inputs
- Asynchronous master reset
- Specified from -40 ℃ to +105 ℃
- Packaging information: DIP14/SOP14/TSSOP14
