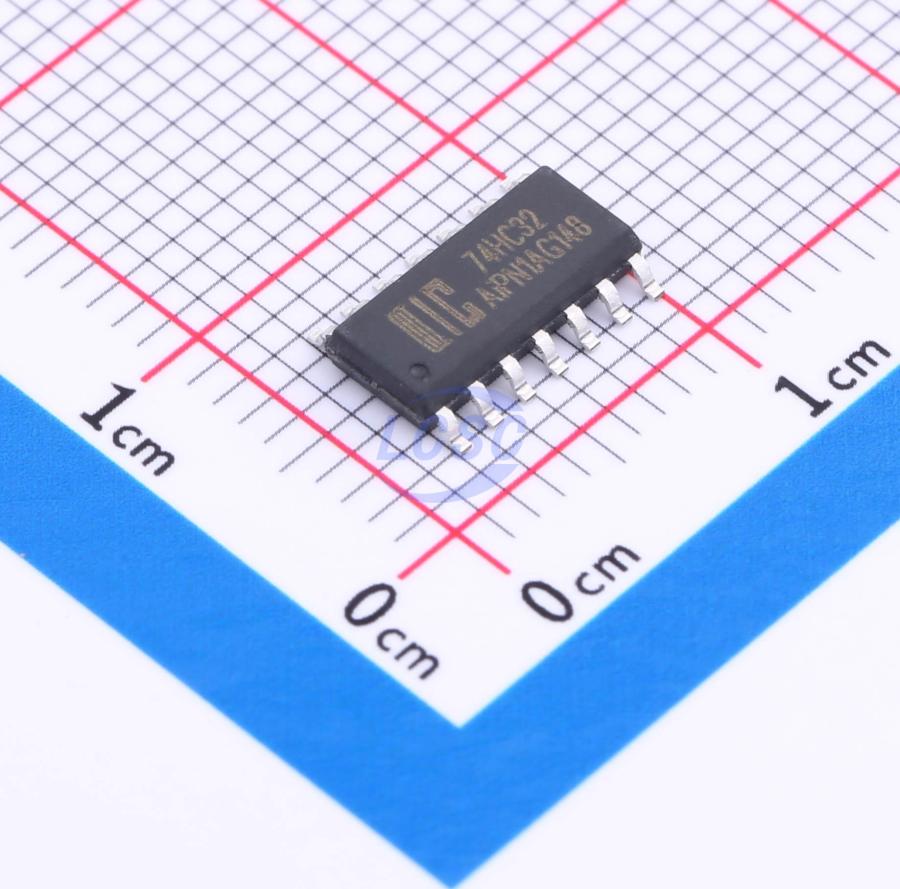

AIP74HC32SA14.TB
StandardCMOS 2V~6V 8ns@4.5V,15pF 2uA SOP-14 Gates and Inverters
SOP-14RoHSActive
Quad 2-input Or Gate
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74HC32SA14.TB
- Store part #
- C5121345
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C5121345
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.42 | ₹82.10 |
| 50+ | ₹13.08 | ₹654.00 |
| 150+ | ₹11.15 | ₹1,672.50 |
| 500+ | ₹9.90 | ₹4,950.00 |
| 2,500+ | ₹8.90 | ₹22,250.00 |
| 5,000+ | ₹8.40 | ₹42,000.00 |
5 × ₹16.42
₹82.10
excl. GST
₹96.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AIP74HC32SA14.TB
₹82.10 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 8ns@4.5V,15pF
- Output Logic Level - Low
- 260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
The AiP74HC/HCT32 is a quad 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels: For AiP74HC32: CMOS level For AiP74HCT32: TTL level
- Specified from -40 °C to +105 °C
- Packaging information: DIP14/SOP14/TSSOP14
