Wuxi I-core ElecDatasheet (PDF)

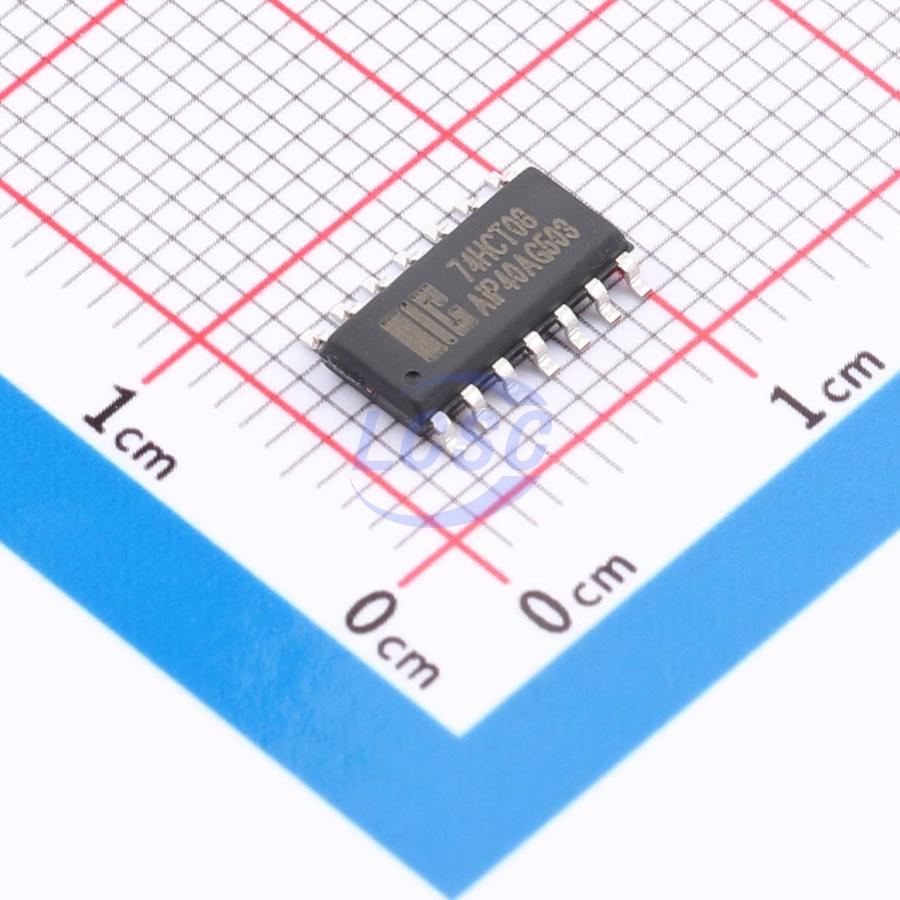

AiP74HCT08SA14.TR
TTL-compatible CMOS 4.5V~5.5V 24ns@4.5V,50pF 2uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74HCT08SA14.TR
- Store part #
- C51940057
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,975 in stock
#C51940057
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.99 | ₹109.95 |
| 50+ | ₹17.40 | ₹870.00 |
| 150+ | ₹15.43 | ₹2,314.50 |
| 500+ | ₹12.98 | ₹6,490.00 |
| 2,500+ | ₹11.88 | ₹29,700.00 |
| 4,000+ | ₹11.22 | ₹44,880.00 |
5 × ₹21.99
₹109.95
excl. GST
₹129.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP74HCT08SA14.TR
₹109.95 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 24ns@4.5V,50pF
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.98V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.394 g
Overview
AiP74HC/HCT08 is a quad 2-input AND gate. The inputs feature built-in clamp diodes, allowing a current-limiting resistor to interface the inputs to voltages exceeding VCC.
Key features
- Input levels: AiP74HC08: CMOS; AiP74HCT08: TTL
- Operating temperature range: -40℃ ~ +125℃; Package: DIP14/SOP14/TSSOP14
