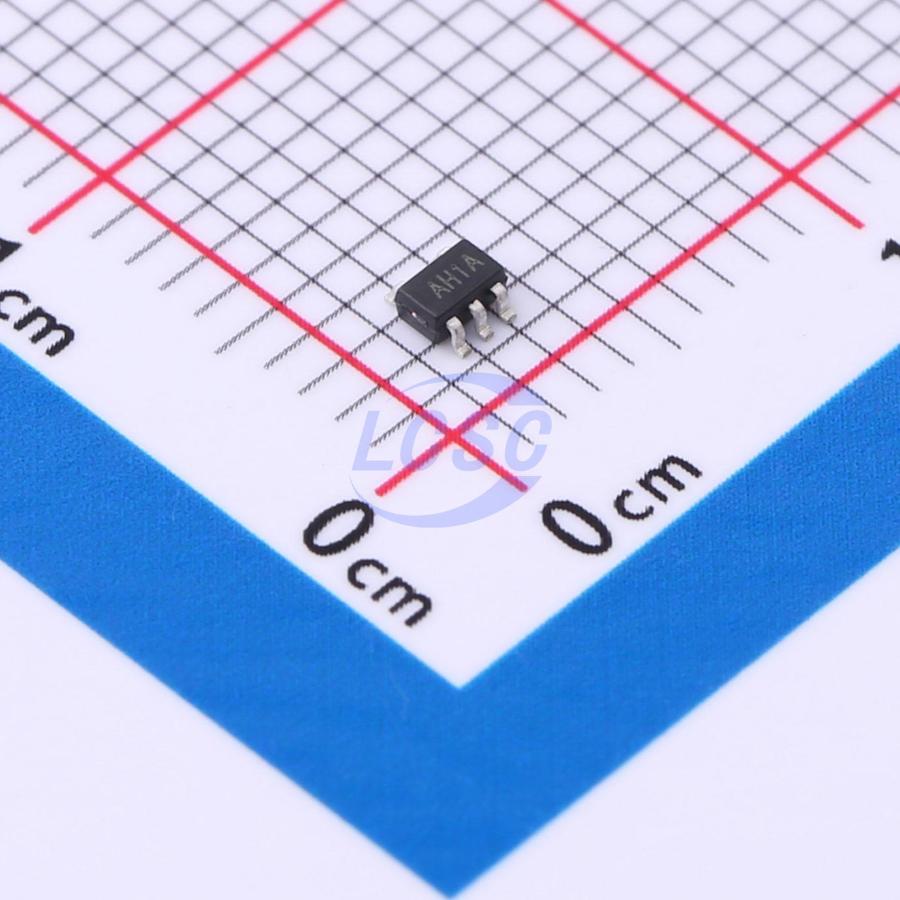

AiP74LVC1G00GC353.TR
TTL-compatible CMOS 1.65V~5.5V 4ns@5V,50pF 4uA SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-input Nand Gate
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC1G00GC353.TR
- Store part #
- C4945059
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C4945059
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.89 | ₹128.90 |
| 100+ | ₹9.96 | ₹996.00 |
| 300+ | ₹8.51 | ₹2,553.00 |
| 3,000+ | ₹7.41 | ₹22,230.00 |
| 6,000+ | ₹6.54 | ₹39,240.00 |
| 9,000+ | ₹6.10 | ₹54,900.00 |
10 × ₹12.89
₹128.90
excl. GST
₹152.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC1G00GC353.TR
₹128.90 for 10 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 4ns@5V,50pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+105℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The AiP74LVC1G00 provides the single 2-input NAND function. Input can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Applications
- Mixed 3.3V and 5V environment applications
- Partial power-down applications
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24mA output drive (V_CC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Input accepts voltages up to 5V
- Specified from -40℃ to +105℃
- Packaging information: SOT-23-5/SOT-353
