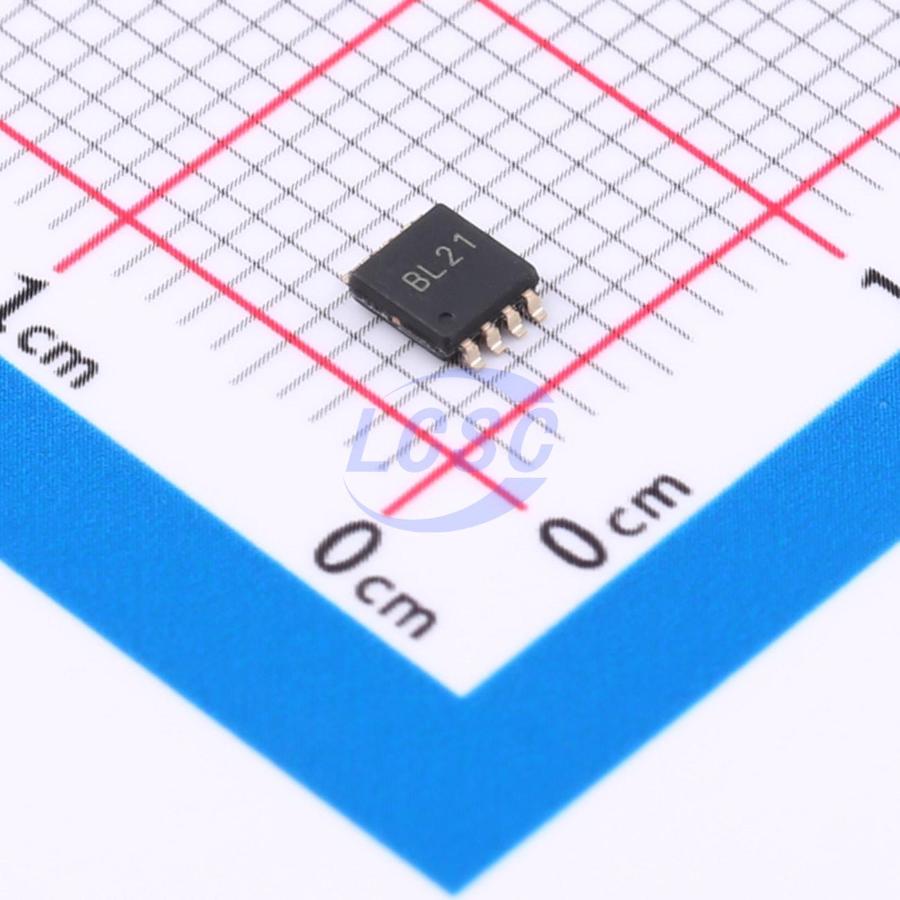

Wuxi I-core Elec

AiP74LVC2G02TA8.TR

TTL-compatible CMOS 1.65V~5.5V 4.3ns@5.5V,50pF 4uA TSSOP-8 Gates and Inverters

TSSOP-8RoHSActive

Dual 2-input Nor Gate

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74LVC2G02TA8.TR
Store part #: C7425506
Package / case: TSSOP-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C7425506

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹33.15	₹165.75
50+	₹26.04	₹1,302.00
150+	₹22.98	₹3,447.00
500+	₹19.17	₹9,585.00
3,000+	₹17.48	₹52,440.00
6,000+	₹16.46	₹98,760.00

Quantity (min 5, multiples of 5)

5 × ₹33.15

₹165.75

excl. GST

₹195.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP74LVC2G02TA8.TR

₹165.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: TTL-compatible CMOS
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.3ns@5.5V,50pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+105℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 2;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.078 g

Overview

The AiP74LVC2G02 provides a 2-input NOR gate function. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing a damaging backflow current through the device when it is powered down.
