Wuxi I-core Elec

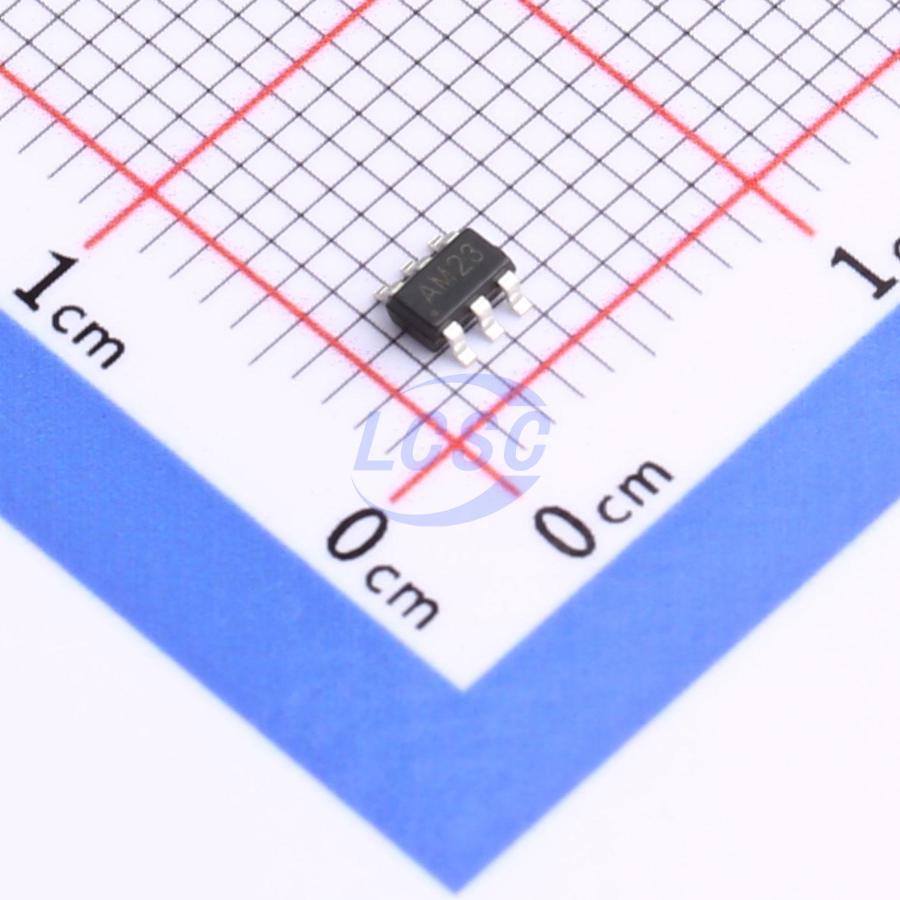

AiP74LVC2G04GB236.TR

TTL兼容CMOS 1.65V~5.5V 3.2ns@5V,50pF 4uA 2 SOT-23-6 Gates and Inverters

SOT-23-6RoHSActive

Dual Inverter

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74LVC2G04GB236.TR
Store part #: C5121352
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C5121352

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹14.29	₹142.90
100+	₹11.05	₹1,105.00
300+	₹9.43	₹2,829.00
3,000+	₹8.22	₹24,660.00
6,000+	₹7.24	₹43,440.00
9,000+	₹6.75	₹60,750.00

Quantity (min 10, multiples of 10)

10 × ₹14.29

₹142.90

excl. GST

₹168.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP74LVC2G04GB236.TR

₹142.90 for 10 + GST

Specifications

output type: Push-pull
Input Type: TTL兼容CMOS
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 3.2ns@5V,50pF
Features: Power shutdown protection
Input Logic Level - High: 1.7V;2V
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+105℃
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Number of Channels: 2
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.06 g

Overview

The AiP74LVC2G04 provides the dual inverting buffer. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
